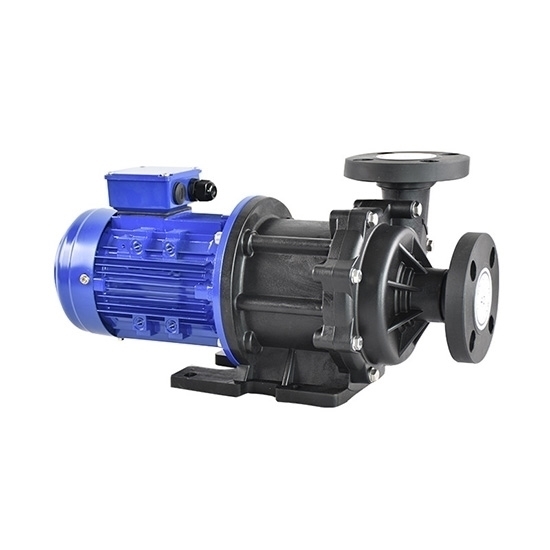

    3 HP (2.2 kW) Magnetic Drive Pump

    5 out of 5 based on 2 reviews | Write a review
    $3,073.57
    3 hp magnetic drive water pump with ETFE wetted-end material and FKM O-ring material for sale. Magnetic drive centrifugal pump availble in flange connections. Mag drive pump able to handle many types of chemical and temperature up to 90 ℃. Magnetic drive pump is widely used in pharmaceutical industry.
    *
    SKU: ATO-MDP-3HP
    30-day Returns
    Free Shipping
    Delivery date: 10-12 days

    A 3 hp magnetic drive pump refers to a type of industrial pump that utilizes magnetic coupling to transfer power from the motor to the pump impeller without a direct mechanical connection. Magnetic drive centrifugal pump adaptable to IEC standard motor. This type of pump is suitable forchemical industry and metal industry.

    Features:

    • ETFE (carbon-fiber reinforced) wetted-end material.
    • The discharge head is 34m.
    • Able to handle many types of chemical and temperature up to 90 ℃.
    • Available in flange connections.

    Specification:

    Model 353PW-F-ACV5-LL
    Specific Gravity 1.2
    Frequency 50Hz, 60Hz
    Rated Voltage 3-phase 380V (please contact us for other voltages)
    Pump performance at specific point (M-L/min) 50Hz 24-150
    60Hz 32-120
    Motor Output 3 HP (2.2 kW)
    Flange Size 32 mm (outlet); 32 mm (inlet)
    Casing Material ETFE
    Shaft Material ceramic
    Bearing Material carbon
    O-ring Material FKM
    Interface Mode thread, flange


    Structure:

    PW-F magnetic drive pump structure


    Dimension (Unit: mm)

    PW-F magnetic drive pump dimension

    Model W H L a b c d e f
    352PW-F 160 242 505.5 222.5 132 155 130 120 78

    Tips: How to Prime a Magnetic Drive Pump?

    • Ensure the magnetic drive pump is turned off and disconnected from the power source.
    • Open the suction valve on the inlet side of the pump.
    • Pour liquid into the inlet until the pump is filled.
    • Close the suction valve.
    • Turn on the pump and let it run for a few seconds to ensure that it is working properly.

    It is important to never run a magnetic drive pump dry as this can cause damage to the pump. Always ensure that the pump is primed with the appropriate fluid before turning it on.

    Existing reviews of 3 HP (2.2 kW) Magnetic Drive Pump
    The max RPM for the magnetic drive pump
    Hi, I was wondering what's the max RPM for the magnetic drive pump 350PW-F? May we know your available supply voltage, and frequency?
    From: Jefferson | Date: 26/09/2024
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Our pump needs to use VFD to adjust the speed. The normal adjustable frequency range is 30-60Hz. 30Hz speed is 1700RPM, 50Hz speed is 2900RPM, 60Hz is the maximum speed 3500RPM.
    Good Quality Refined Design
    It's a good little drive pump for the price, and It works perfectly when fitted with a ball valve to control flow. I'd purchase again.
    From: eva | Date: 04/12/2023
