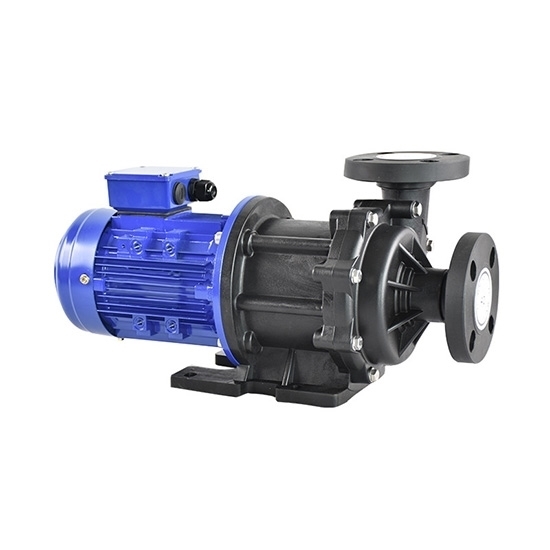

1 HP (0.75 kW) Magnetic Drive Pump

Magnetic drive pump is the use of magnets can attract ferromagnetic material and magnetic force between magnets or magnetic fields, can be no contact through the non-magnetic conductor for power transmission.

Features:

• ETFE (carbon-fiber reinforced) wetted-end material.
• Flow rates up to 830 L/min and discharge head of 34m.
• Able to handle many types of chemical and temperature up to 90 ℃.
• Available in flange connections.

Specification:

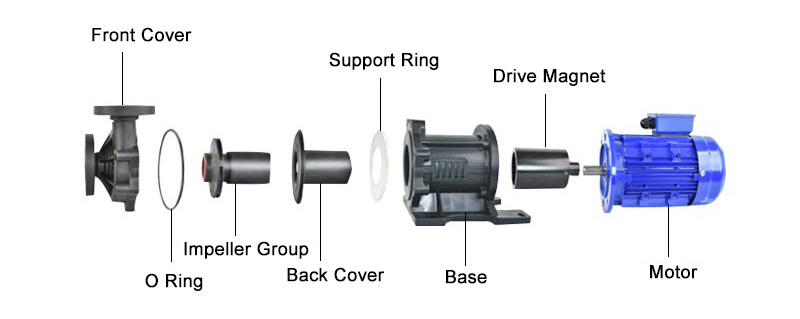

Structure:

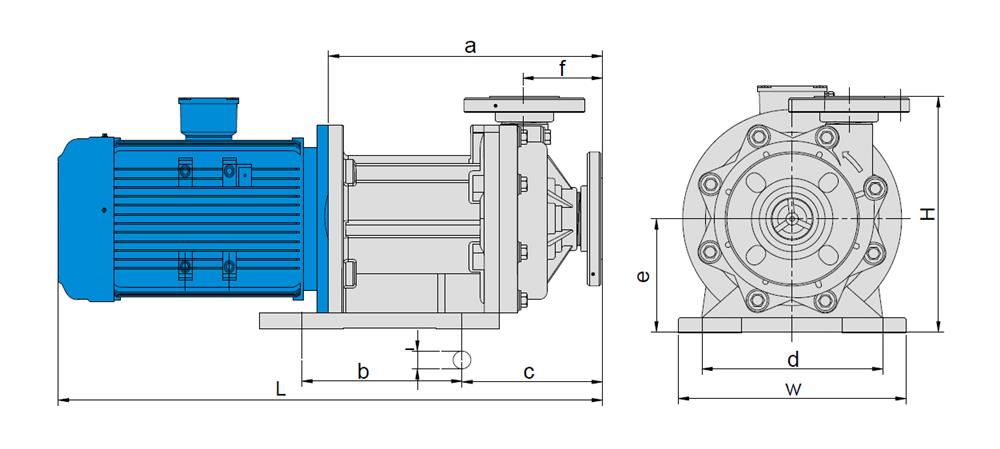

Dimension (Unit: mm)

Tips: What is Magnetic Drive Pump?

Mag drive pump is seal-less pump that use the technology of a drive magnet and inner magnet connected to an impeller to move fluid through the pump. The drive magnet and inner magnet are separated by a rear casing or housing, creating a seal-less containment. Instead of a mechanical seal, the pump uses a magnetic coupling to transmit the power from the motor to the impeller. This allows the pump to be completely sealed, which prevents leaks and contamination of the fluid being pumped.
