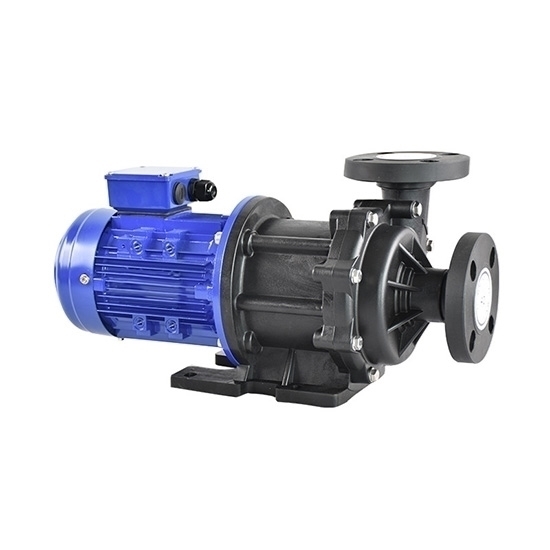

    7.5 HP (5.5 kW) Magnetic Drive Pump

    $4,005.16
    Magnetic drive pump price is affordable and with ETFE casing material. Magnetic pump able to handle many types of chemical and temperature up to 90 ℃. This type of pump availble in flange connections. Mag drive centrifugal pump often used in chemical industry, pharmaceutical industry and metal industry.
    *
    SKU: ATO-MDP-75HP
    30-day Returns
    Free Shipping
    Delivery date: 10-12 days

    Magnetic drive pump is a new product which applies the working principle of permanent magnet coupling shaft to centrifugal pump. It has the characteristics of reasonable design, advanced technology, full seal and no leakage.

    Features:

    • ETFE (carbon-fiber reinforced) wetted-end material.
    • Flow rates up to 830 L/min and discharge head of 34m.
    • Able to handle many types of chemical and temperature up to 90 ℃.
    • Available in flange connections.

    Specification:

    Model 507PW-F-ACV5-LL
    Specific Gravity 1.2
    Frequency 50Hz, 60Hz
    Rated Voltage 3-phase 380V (please contact us for other voltages)
    Pump performance at specific point 50Hz 21.5-600
    60Hz 22.5-600
    Motor Output 7 HP (5.5 kW)
    Flange Size 50 mm (outlet); 65 mm (inlet)
    Casing Material ETFE
    Shaft Material ceramic
    Bearing Material carbon
    O-ring Material FKM
    Interface Mode thread, flange


    Structure:

    PW-F magnetic drive pump structure


    Dimension (Unit: mm)

    PW-F magnetic drive pump dimension

    Model W H L a b c d e f
    507PW-F 260 319 676.5 311.5 300 123.2 220 162 89.5

    Tips: Disadvantages of Magnetic Drive Pump

    • Limited Flow Rate. Magnetic drive pumps have a limited flow rate due to their design, which can restrict their use in high-volume applications.
    • Low Pressure. Magnetic drive pumps have lower pressure capabilities compared to other types of pumps, which may make them unsuitable for applications requiring high-pressure delivery.
    • Temperature Sensitivity. Magnetic drive pumps can be sensitive to temperature changes, which can affect their performance and durability.
    • Limited Viscosity Range. Magnetic drive pumps are typically only suitable for handling low to medium viscosity fluids, which can limit their versatility and utility.
