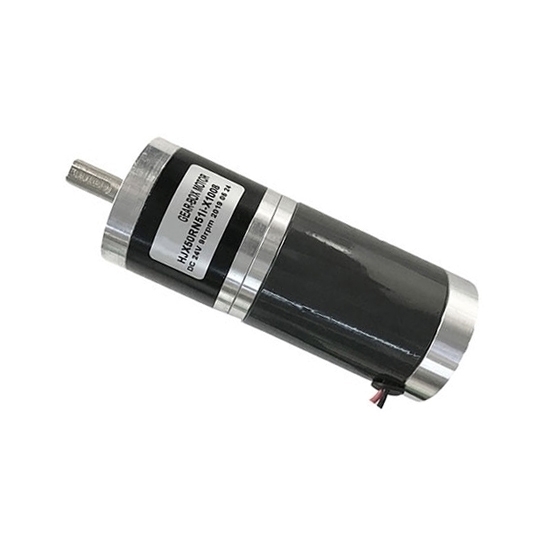

    Brushed DC Motor with Gearbox, 3200rpm, 12V/24V, 50mm

    5 out of 5 based on 1 reviews | Write a review
    $142.72
    Brushed DC gear motor for sale, 35W, 3200rpm rated speed, 4000rpm no load speed, operates with 12V or 24V rated voltage, equipped with 50mm diameter gearbox, gear ratio from 1/3.7 to 1/139.
    SKU: ATO-BDM-3200R50
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Brushed DC gear motor, 12V or 24V DC, comes with 50mm diameter gearbox. It has wide industrial applications, such as food processing machine, sealing equipment, textile machine, etc.

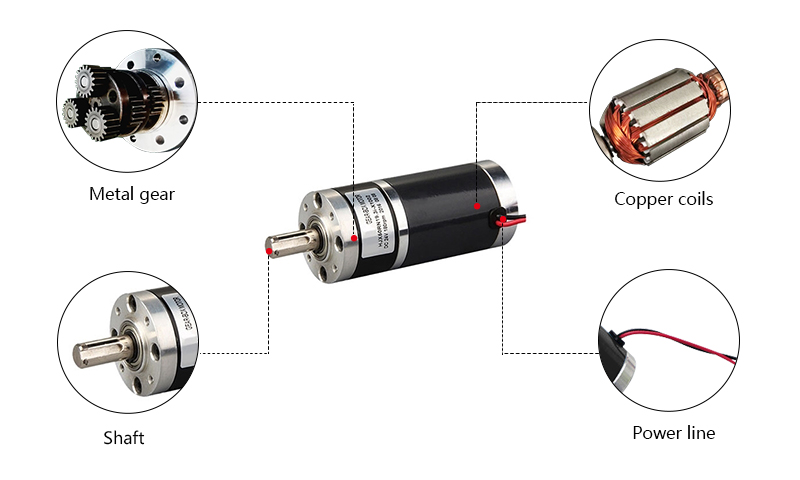

    Features

    • BDC motor with gearbox has compact structure and strong overload capacity.
    • The gear ratio is finely graded, which provides you wide selections for different applications.
    • BDC gear motor is low energy consumption, low vibration and low noise. The efficiency of the gearbox is up to 96%.
    • It adopts a new type of sealing device, which can work continuously in harsh environments such as corrosion and humidity.

    Specification

    Model ATO-BDM-50RN5078
    DC Motor Technical Parameter Rated Voltage 12V DC 24V DC
    No Load Speed 4000rpm 4000rpm
    Current 0.86A 0.46A
    At Max Efficiency Speed 3200rpm 3200rpm
    Current 4.1A 2.1A
    Torque 74.51mN·m 76.47mN·m
    760g·cm 780g·cm
    Power 34W 35W
    Stall Torque 470.6mN·m 490.2mN·m
    4800g·cm 5000g·cm
    Current 13.64A 6.8A
    Gearbox Technical Parameter Gear Ratio 1/3.7 1/5.2 1/13.7 1/19.2 1/27 1/51 1/71 1/100 1/139 1/3.7 1/5.2 1/13.7 1/19.2 1/27 1/51 1/71 1/100 1/139
    Gearbox Diameter (mm) 50 50
    Gearbox Length (mm) 30 39.8 49.5 30 39.8 49.5
    Rated Torque (kg·cm) 2.5 3.6 8.3 11.7 16.4 27.1 37.8 53.2 73.9 2.6 3.7 8.5 12.0 16.8 27.8 38.8 54.6 75.9
    Rated Speed (rpm) 865 615.4 233.6 166.7 118.5 62.7 45.1 32.0 23.0 865 615.4 233.6 166.7 118.5 62.7 45.1 32.0 23.0
    Stall Torque (kg·cm) 11.4 16.0 37.5 52.5 73.9 122.1 170.0 239.4 332.8 11.7 16.4 38.5 53.9 72.8 125.3 174.4 245.7 341.5

    Dimensions

    Units: mm

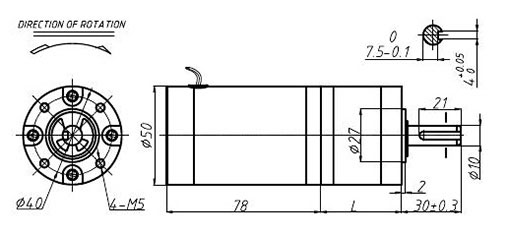

    Dimensions of Brushed DC Motor with Gearbox 3200rpm 12V/24V 50mm

    Tips: Brushed DC motor with gearbox working principle

    DC power supply current flows along the positive to the left of the brush, the brush and commutator mutual friction. The current passes to the left of the commutator and flows into the coil, flowing from the right side of the coil, after the commutator segment on the right and the right of the brush flow back to the power of the cathode, formed a closed circuit.

    As in the main pole of coil magnetic field, the coil will be affected by the effect of electromagnetic force, due to the current in a different direction, the two coil side is the same size in the opposite direction of electromagnetic force, the two electromagnetic force is just formed the electromagnetic torque, under the drive of electromagnetic torque, The coil began to rotate. In a Brushed DC motor, coils are placed in slots in the rotor and it starts to turn.

    The left and right commutators rotate with the rotating shaft and the brush stationary, rotation after a circle, the right coil to the left and the left coil to the right. Because of the existence of the commutator segment, now the current directions of the left and right coil are the same as original, the electromagnetic force direction is invariable. From the perspective of space, the coil side in the same position by the direction of the electromagnetic force is always constant, which ensures the motor cycle rotation.

    However, for a coil, the magnetic field is different when the coil is rotated to different positions, resulting in the electromagnetic force received by the coil changing all the time. Therefore, several coils can be installed to ensure the uniform and stable force of them.
