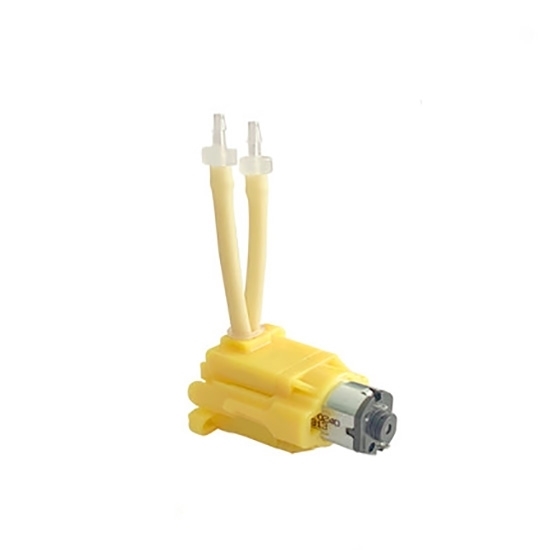

3V Portable Peristaltic Pump, 2.6 mL/min Flow Rate

High quality 3V peristaltic pump with 1.5 mL/min and 2.6 mL/min flow rate. The biggest advantage of this peristaltic pump is portability, lightweight and easy to carry.

Features:

• Compact structure, small size, fine workmanship of 3V peristaltic pump.
• Light weight, weighing only 10g.
• Low noise, suitable for use for small household appliances.
• Adaptable to strong corrosion resistant tube.
• Portable peristaltic pump with high-speed micro motor for interval operation.
• Peristaltic pump body has mounting panel for easy fixing.

Specification:

• Model: ATO-PP-WX2ZL
• Voltage RPM: DC 3.7V, 300 rpm
• Power: ≤1W
• Tube Type: TPE, BPT
• Flow Rate: 2.6 mL/min, 1.5 mL/min
• Net Weight: 14.2g
• Noise: ≤60 dB
• Outlet Pressure: ≤0.03 MPa
• Operating Environment: Temperature 0-60 ℃, relative humidity less than 85%

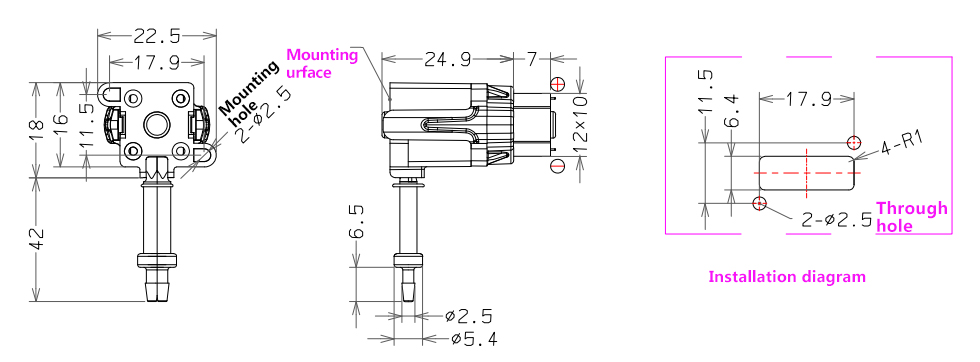

Dimension (Unit: mm)

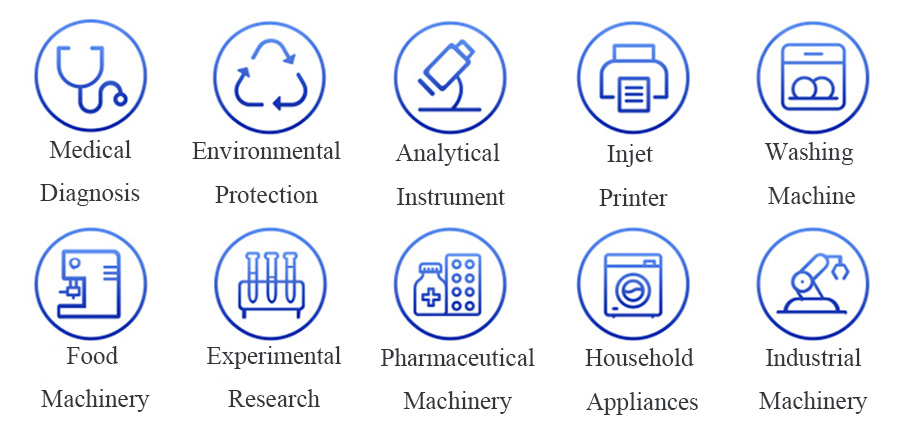

Application:

Tips: What is a Peristaltic Pump?

A peristaltic pump, also commonly known as a roller pump, is a type of positive displacement pump used for pumping a variety of fluids. The fluid is contained in a flexible tube fitted inside a circular pump casing. Most peristaltic pumps work through rotary motion, though linear peristaltic pumps have also been made. The rotor has a number of "wipers" or "rollers" attached to its external circumference, which compress the flexible tube as they rotate by. The part of the tube under compression is closed, forcing the fluid to move through the tube.

Typically, there will be two or more rollers compressing the tube, trapping a body of fluid between them. The body of fluid is transported through the tube, toward the pump outlet. Peristaltic pumps may run continuously, or they may be indexed through partial revolutions to deliver smaller amounts of fluid.
