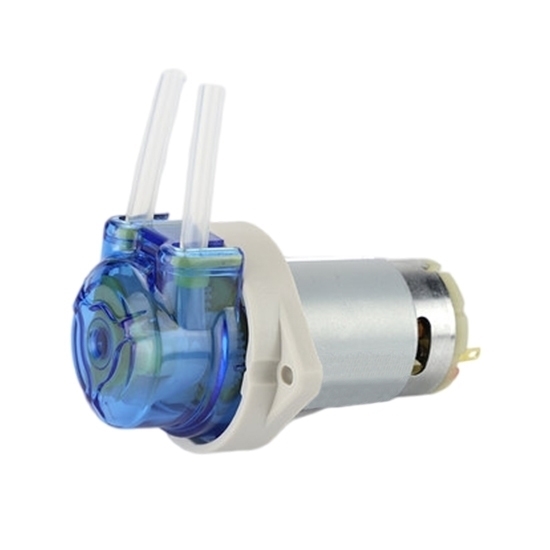

12V Micro Peristaltic Pump, 150 mL/min Flow Rate

Micro peristaltic pump with 12 volt power supply. The peristaltic pump base is designed with strip-shaped mounting holes, which can be directly fixed to your equipment. The silicone tube and BPT tube can be chosen in ATO.

Features:

• Streamlined appearance, exquisite and compact of 12V micro peristaltic pump.
• Tube directions can be adjusted according to your system application.
• 3-roller design, suitable for low pulse dose.
• Micro peristaltic pump with high speed micro motor, more suitable for interval operation.
• The peristaltic pump base is designed with strip-shaped mounting holes, which can be directly fixed to your equipment.

Specification:

• Model: ATO-PP-293KCZL
• Rated Power: DC 12V, 24V
• Voltage RPM: 12V 600 rpm, 24V 680 rpm
• Power: ≤15W
• Tube Type: Silicone, BPT
• Flow Rate: 150 mL/min, 151 mL/min, 175 mL/min, 182 mL/min
• Net Weight: 145g
• Noise: ≤80 dB
• Outlet Pressure: ≤0.1 MPa
• Operating Environment: Temperature 0-60 ℃, relative humidity less than 85%

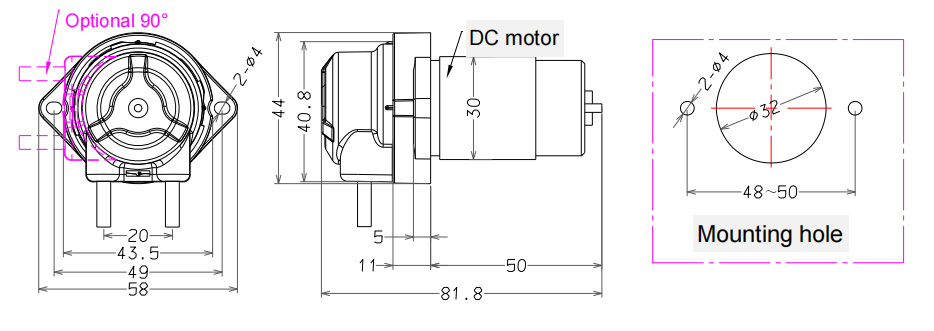

Dimension (Unit: mm)

Application:

Tips: Factors Affecting Peristaltic Pump Flow Rate

Choosing the peristaltic pump is to see the pump flow rate. Because only the flow parameters meet the requirements, the other aspects will be selected.

• Clear transmission of liquid characteristics, is viscous or the presence of particles, because the particles and viscosity of the liquid has a great impact on flow calculation.
• The factors of silica gel tube can not be ignored, the higher the temperature of the transmission environment and the transmission liquid, the softer the silica gel tube, and the lower the pump flow with the elastic variation.
• The speed of the peristaltic pump is also an important factor, different speed flow is different.
• The use of the process in the suction range is how much, if the suction range and the silicone tube inlet diameter is different, there will be attenuation on the flow.
