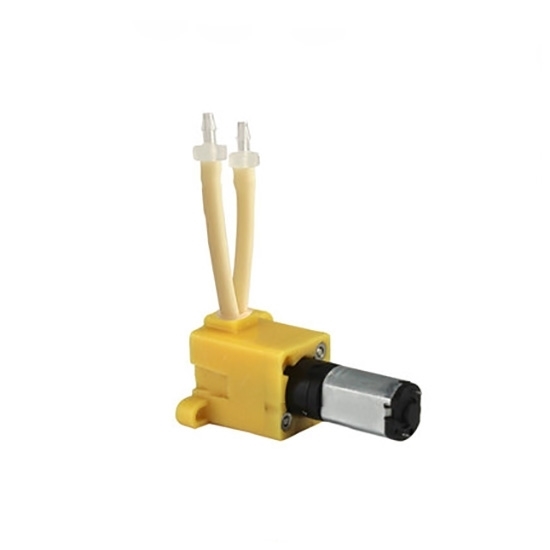

6V Low Flow Peristaltic Pump, 1.2 mL/min Flow Rate

6V low flow peristaltic pump for sale online. Low flow peristaltic pump adaptable to strong corrosion resistant tube. This type peristaltic pump applys to analytical instruments and industrial machinery.

Features:

• Low flow Peristaltic pump with micro dosing flow.
• Compact structure, small size, fine workmanship of 6V peristaltic pump.
• Light weight, weighing only 10g.
• Low noise, suitable for use for small household appliances.
• Adaptable to strong corrosion resistant tube.
• Peristaltic pump with high-speed micro motor for interval operation.
• Pump body has mounting panel for easy fixing.

Specification:

• Model: ATO-PP-WX2ZLX
• Voltage RPM: DC 6V, 290 rpm
• Power: ≤1.2W
• Tube Type: TPE, BPT
• Flow Rate: 1.2-2.7 mL/min, 0.6-1.7 mL/min
• Net Weight: 10g
• Noise: ≤48 dB
• Outlet Pressure: ≤0.03 MPa
• Operating Environment: Temperature 0-60 ℃, relative humidity less than 85%

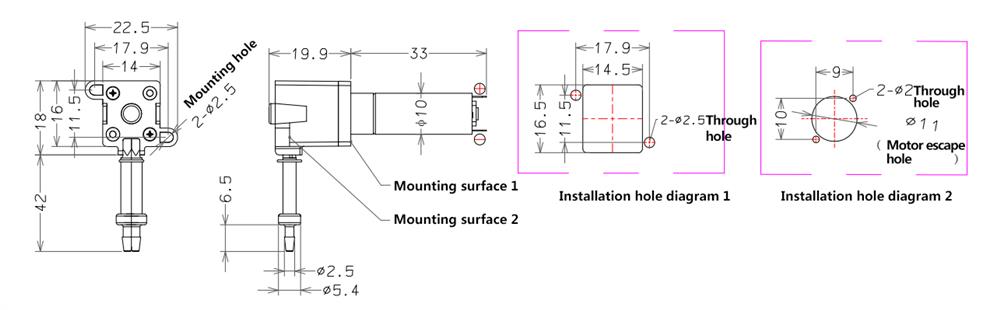

Dimension (Unit: mm)

Application:

Tips: Peristaltic Pump Working Principle

A peristaltic pump works like squeezing a fluid-filled hose between your fingers. The fluid moves forward as you slide your finger forward. Peristaltic pumps work the same way, but with rollers instead of fingers. The fluid is pumped by alternately squeezing and releasing the pump's flexible delivery hose. Like squeezing a hose between two fingers, as the fingers move, negative pressure forms inside the tube and the liquid flows with it.

Peristaltic pump is a "pillow" shaped fluid formed in a pump tube between two rotating rollers. The volume of the "pillow" depends on the inner diameter of the pump tube and the geometry of the rotor. The flow rate depends on the product of three parameters: the speed of the pump head and the size of the "pillows" and the number of "pillows" produced by the rotor per revolution.
