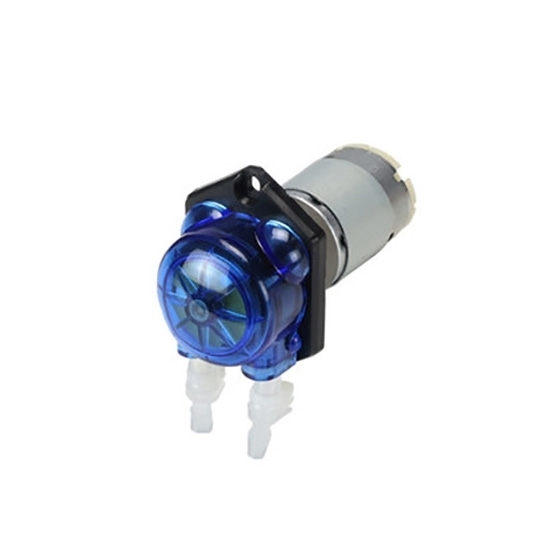

    24V High Pressure Peristaltic Pump, 42 mL/min Flow Rate

    $86.39
    High pressure peristaltic pump with 24 volt power supply. 3 rollers low pulse design, compatible with tubing of wall 1mm. 24V peristaltic pump with stylish, various transparent color, easy for visual management. Compact peristaltic pump has certain corrosion resistant application scenarios, such as printing equipment, laundry equipment and analytical instrument.
    SKU: ATO-PP-MN1ZL
    *
    *
    *
    Free Shipping Worldwide

    Peristaltic pump with 24 volt power supply for sale. This kind of high pressure peristaltic pump has a service life of 600-1500 hours. Peristaltic pump uses wear-resistant lubricating rod material.

    Features:

    • The width of high pressure peristaltic pump only 40mm, compact structure.
    • 3 rollers low pulse design, compatible with tubing of wall 1mm.
    • 24V peristaltic pump has certain corrosion-resistant application scenarios.
    • The peristaltic pump body base is designed with strip mounting holes, which can be directly fixed to your equipment.

    Specification:

    • Model: ATO-PP-MN1ZL
    • Rated Power: DC 12V, 24V
    • Power: ≤3W
    • Voltage RPM: 15 rpm, 150 rpm
    • Tube Type: Silicone, BPT
    • Flow Rate: 4.5 mL/min, 42 mL/min
    • Net Weight: 100g
    • Noise: ≤46 dB
    • Outlet Pressure: ≤0.1 MPa
    • Operating Environment: Temperature 0-60 ℃, relative humidity less than 85%

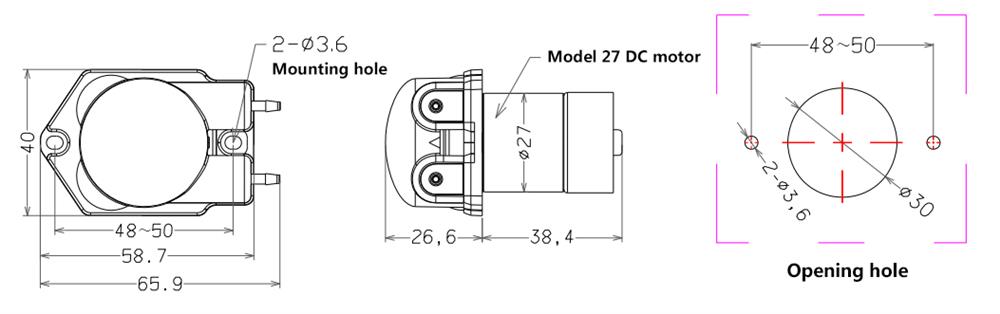

    Dimension (Unit: mm)

    Peristaltic pump mn1zl dimension

    Application:

    Peristaltic pump applications

    Tips: Advanteges and Disadvantages of Precision Peristaltic Pump

    Advantages:

    • The only point of contact the pump has with the fluid or chemical is the interior of the tube.
    • No valves or major seals to replace on a tube pump making them low maintenance.
    • They are able to handle slurries, viscous chemicals, shear sensitive polymers and other abrasive fluids.

    Disadvantages:

    • The flexible hose or tube will tend to degrade with time and require periodic replacement.
    • Replacing the hose can get expensive and timely do to the lubricant inside the casing (tube pumps are require less maintenance).
    • With a hose pump at low flows the flow is pulsed. A hose pump is less suitable where a smooth consistent flow is required. An alternative type of positive displacement pump should be considered.
