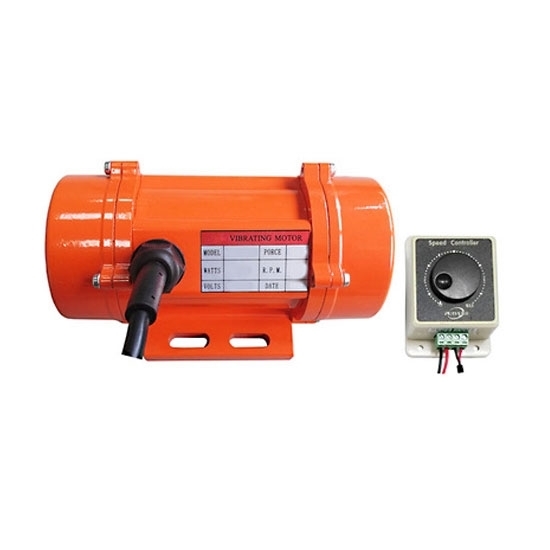

Low cost brushed vibration motor, DC voltage 24 volt, 3000rpm, 1.6A, Insulation class F, vibration motor can be used for driving, providing conveying, screening, grading or compacting functions.
||50 Kg, 0.5 kN
40W DC Brushed Vibration Motor Dimension (unit: mm)
Tips: How to adjust the excitation force of a vertical vibration motor?
Exciting force adjustment: Remove the additional block compression bolts, and adjust the excitation force by increasing or decreasing the number of additional blocks.
Adjustment of the included angle between the upper and lower eccentric blocks: the upper eccentric block is a fixed block, and the lower eccentric block is an adjustable block, both of which are pressed on the motor shaft with fastening bolts. The two ends of the rotating shaft are engraved with reference lines. The outer surface of the lower eccentric block is equipped with a scale indicating the rotation angle. Loosen the compression bolts of the lower eccentric block, and rotate the lower eccentric block so that the angle scale mark on the lower eccentric block is aligned with the reference mark of the rotating shaft. Adjust the line to the desired angle, and tighten the compression bolt of the lower eccentric block; if you need to adjust the angle of the upper eccentric block, you can also adjust it according to the corresponding method.
