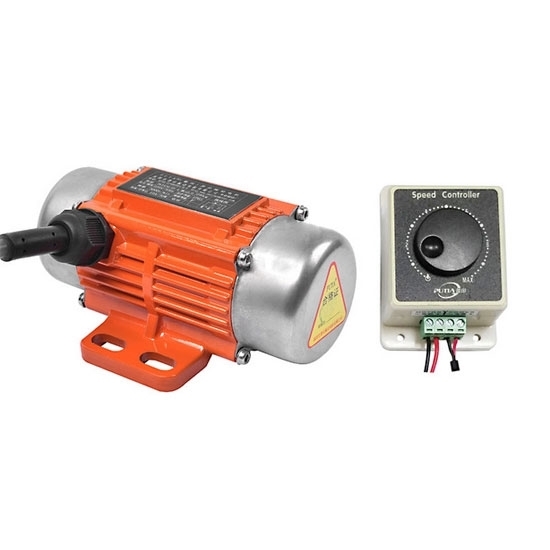

    20W 12 Volt DC Brushed Vibrating Electric Motor with Controller

    $377.48
    20W 12 Volt vibration electric motor for sale online. It is a brushed industrial vibration motor, with a speed controller, 3000rpm, force 20kg, 2A current, insulation class F and IP65 waterproof and dustproof, suitable for driving, providing conveying, screening, grading or compacting processes.
    SKU: ATO-DCVBM-2012
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    The provided 20W small vibration motor features a speed controller, 3000rpm, 2A current, force 20kg, insulation class F and IP65 waterproof and dustproof. Factory price 12V DC brushed vibration electric motor, manufacturer direct sale.

    Specifications

    Model ATO-MVB-20DC12-3
    Volatge 12V
    Current 2A
    Power 20W
    Speed 3000 rpm
    Force 20 Kg, 0.2 kN
    Frame No 3
    Protection Level IP65
    Insulation Grade F
    Weight 3kg
    Certificate CE


    Dimension (Unit: mm)

    20W DC brushed vibration motor dimension

    A B C D R F G H L K M N Cable Gland
    27.5 91.5 166 110 69 9 9 35 55 17.5 33.5 66 M16*1.5


    Internal Structure

    DC brushed vibration motor internal structure

    Applications

    ATO 20W 12V micro brushed DC vibration electric motor is an ideal vibration source and excitation source for various vibration motors such as vibration conveyors, feeders, drying equipment, screening equipment, sand machines, vibration tables, etc., widely used in metallurgy, mining, coal, chemical, electric power, building materials, casting, abrasives, ceramics, glass, food and other industries.

    DC brushless vibration motor applications


    Tips: What is the power rating of the DC vibration motor?

    The power rating of ATO DC vibration motors typically ranges from 10W to 160W. This range allows for a variety of applications depending on the required vibration intensity and motor size:

    • 10W to 30W motors are suitable for smaller, lighter applications like small vibrators, mobile devices, or haptic feedback systems.
    • 30W to 100W motors are used in medium-duty applications such as vibrating feeders, sorting equipment, or testing machines.
    • 100W to 160W motors are designed for heavier-duty tasks requiring more power, such as industrial machinery or large vibratory screens.

    The power rating affects the motor’s vibration intensity, torque, and efficiency, with higher wattages providing stronger vibrations and the ability to handle heavier loads.
