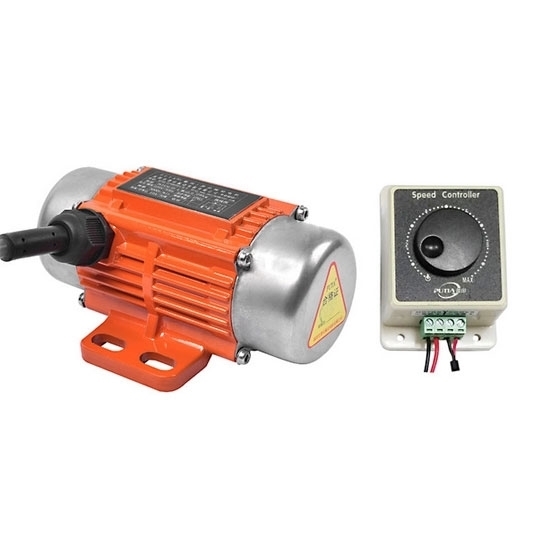

    20W 24 Volt DC Brushed Vibrating Electric Motor with Controller

    5 out of 5 based on 2 reviews | Write a review
    $377.48
    20W 24V DC brushed vibrating electric motor for sale online. With an adjustment speed controller, rated current 1A, IP65 waterproof and dustproof, and 3000rpm speed, this industrial brushed vibration motor is ideal for hoppers, powder cleaners, dust collectors, and feeding conveyors.
    SKU: ATO-DCVBM-2024
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    24 Volt DC brushed vibration motor, speed can be adjusted, force 20 Kg, 3000rpm, small size, suitable for applications like vibrating feeders, small vibratory machines, or devices requiring haptic feedback, where moderate vibration is needed.

    Specifications

    Model ATO-MVB-20DC24
    Voltage 24V
    Current 1A
    Power 20W
    Speed 3000 rpm
    Force 20 Kg, 0.2 kN
    Frame No 3
    Protection Level IP65
    Insulation Grade F
    Weight 3kg
    Certificate CE

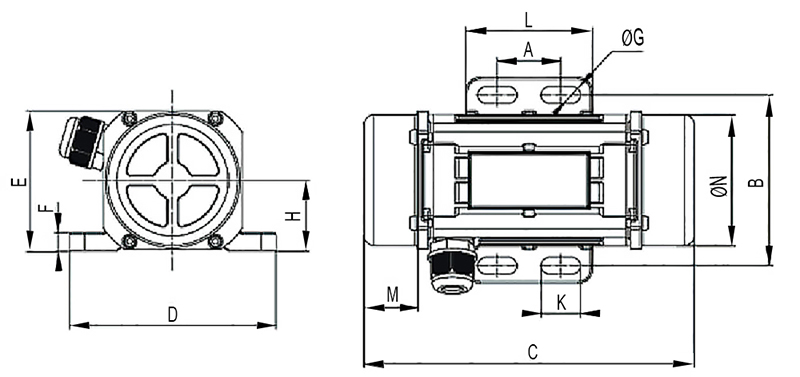

    Dimension (Unit: mm)

    20W dc brushed vibration motor dimension

    A B C D R F G H L K M N Cable Gland
    27.5 91.5 166 110 69 9 9 35 55 17.5 33.5 66 M16*1.5


    Internal Structure

    DC brushed vibration motor internal structure

    Applications

    ATO 20W 24V micro brushed DC vibration electric motor is an ideal vibration source and excitation source for various vibration motors such as vibration conveyors, feeders, drying equipment, screening equipment, sand machines, vibration tables, etc., widely used in metallurgy, mining, coal, chemical, electric power, building materials, casting, abrasives, ceramics, glass, food and other industries.

    DC brushless vibration motor applications

    Tips: Can the speed be adjusted?

    Yes, the 20W 24V 3000rpm DC brushed vibration motor comes with a speed controller that allows you to adjust the motor's rotational speed and, consequently, the vibration intensity

    By varying the speed, you can control how strong or subtle the vibration is, which is essential for applications requiring precise or variable vibration levels. This feature is particularly useful when the motor adapts to different operational conditions or performs tasks requiring a consistent and adjustable vibration rate. You can use the controller to fine-tune the speed motor's performance, ensuring the vibration matches the desired output for your application, whether it's for a testing device, sorting machine, or a haptic feedback system. ATO industrial vibration electric motors series are equipped with a speed controller for easy operation.

    Existing reviews of 20W 24 Volt DC Brushed Vibrating Electric Motor with Controller
    Want a motor could be direct wired without a controller.
    Do you have a motor that could be direct wired without a controller?
    From: Freddy | Date: 25/05/2022
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, our brushed vibration motor can be directly wired without a controller, and it can be directly connected to lithium battery or DC switching power supply. But it cannot adjust the speed and only runs at the highest speed.
    Please provide us with your requirements like the voltage, power, and vibration force of the vibration motor for our better offer.
    If you want a 20W, 24V, 3000rpm brushed vibration motor, its price is 377.48USD/unit, free shipping, lead time will be approx 5 days.
    20W DC brushed vibration motor achieves the effect I want
    ATO's 20W DC brushed vibration motor is really good. I have used several models, and each of them can achieve the effect I want. ATO's DC brushed motor is worth recommending, cost-effective and very durable.
    From: Balushi | Date: 30/11/2021
    Was this review helpful? Yes No (0/0)
