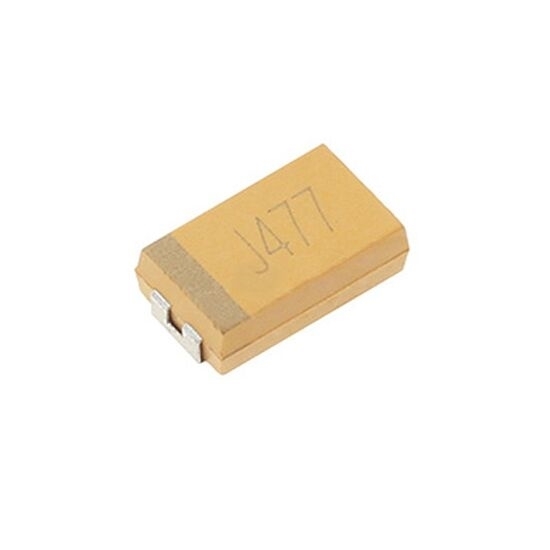

470μF 6.3V SMD Tantalum Capacitor

SMD tantalum capacitor made of tantalum metal which acts as an anode, covered by a layer of oxide which acts as the dielectric, surrounded by a conductive cathode. 470μF 6.3V surface mount tantalum capacitor applies in laptops and automotive industry.

Features:

• Small volume and small capacity error
• Wide temperature range, high temperature resistance
• Long life, high insulation resistance, small leakage current
• Equivalent series resistance (ESR) has good high frequency performance

Specification:

• Model: ATO-TC-470UF063SMD
• Capacitance: 470μF
• Rated Voltage: 16V
• Type: D-SMD
• Net Size: 1 mm
• Height Mounting (Maximum): 3.1 mm
• Equivalent Series Resistance: 1
• Tolerance: 10%
• Leading Spacing: Leadless
• Working Temperature: -85 ℃— +125 ℃

SMD Tantalum Capacitor Dimension: (Unit: mm)

L= 7.3, S= 1.3, W₁= 4.3, W₂= 2.4, H= 2.8

Tips: What is Tantalum?

Tantalum is a chemical element with the symbol Ta and atomic number 73. Tantalum is a rare, hard, blue-gray, lustrous transition metal that is highly corrosion-resistant. It is part of the refractory metals group, which are widely used as minor components in alloys. The chemical inertness of tantalum makes it a valuable substance for laboratory equipment, and as a substitute for platinum. Its main use today is in tantalum capacitors in electronic equipment such as mobile phones, DVD players, video game systems and computers.
