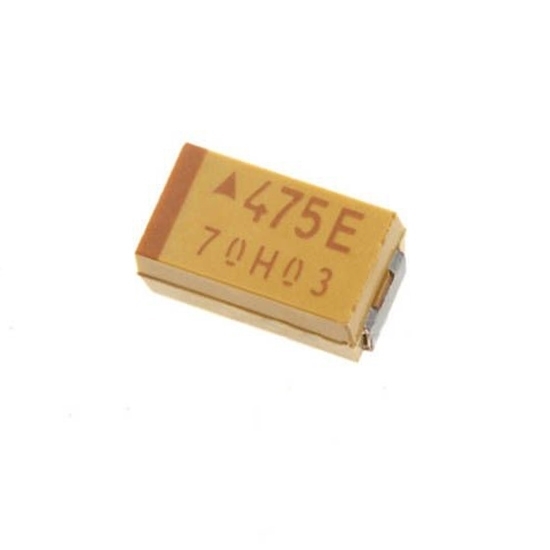

    4.7μF 25V SMD Tantalum Capacitor

    5 out of 5 based on 1 reviews | Write a review
    SMD tantalum capacitor with 25V voltage and 4.7μF capacitance. Tantalum chip capacitor can operate between -85 ℃ and 125 ℃. Tantalum capacitor is small in size, only 2.2 mm. 4.7μF SMD tantalum capacitor can be found in pressure gauge and video equipment.
    SKU: ATO-TC-047UF25SMD
    This product has a minimum quantity of 100
    30-day Returns
    Free Shipping
    Delivery date: 10-12 days

    25V SMD Tantalum capacitor with small volume and small error can be provided by ATO. Surface mount tantalum capacitor can operate in -85 ℃ to 125 ℃. Tantalum chip capacitor widely used in pressure gauge, industrial equipment and video equipment.


    • Small volume and small capacity error
    • Wide temperature range, high temperature resistance
    • Long life, high insulation resistance, small leakage current
    • Equivalent series resistance (ESR) has good high frequency performance


    • Model: ATO-TC-047UF25SMD
    • Capacitance: 4.7μF
    • Rated Voltage: 25V
    • Type: C-SMD
    • Net Size: 6 mm
    • Height Mounting (Maximum): 3.2 mm
    • Equivalent Series Resistance: 1
    • Tolerance: 10%
    • Leading Spacing: Leadless
    • Working Temperature: -85 ℃— +125 ℃

    SMD Tantalum Capacitor Dimension: (Unit: mm)

    L= 6, S= 1.3, W1= 3.2, W2= 2.2, H= 2.5

    SMD tantalum capacitor dimension

    Tips: Why Use Tantalum Capacitor?

    The tantalum capacitor also has excellent stability characteristics. Across a wide range of temperatures and frequencies, the tantalum capacitor will maintain the expected capacitance better. With this stability you get more of the expected behavior of your system, which is especially important for filters; if the capacitance varies too much you may lose frequencies you desire. Beyond the electrical differences the construction of the tantalum capacitor also makes it highly resistant to vibration issues, improving overall system reliability. Tantalum capacitors are generally polarized devices, meaning that during layout and assembly you need to pay more attention to their orientation.
