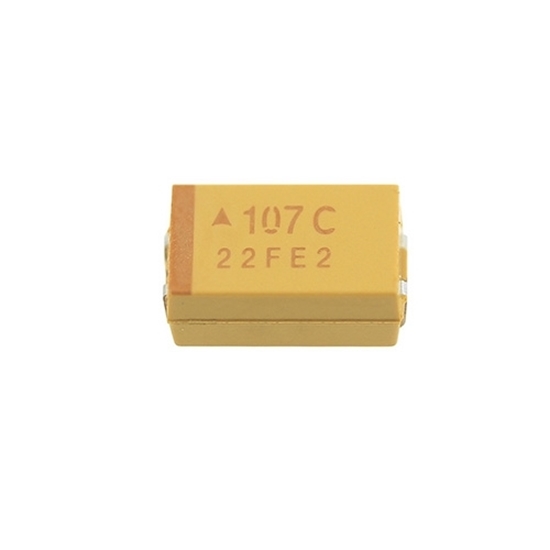

SMD tantalum capacitor is a subtype of electrolytic capacitor. Technology advances allow 100μF tantalum capacitor SMD to be used in a wide variety of circuits, often found in laptops, automotive industry and cell phones.
- Small volume and small capacity error
- Wide temperature range, high temperature resistance
- Long life, high insulation resistance, small leakage current
- Equivalent series resistance (ESR) has good high frequency performance
- Model: ATO-TC-100UF16SMD
- Capacitance: 100μF
- Rated Voltage: 16V
- Type: D-SMD
- Net Size: 1 mm
- Height Mounting (Maximum): 1 mm
- Equivalent Series Resistance: 1
- Tolerance: 10%
- Leading Spacing: Leadless
- Working Temperature: -85 ℃— +125 ℃
SMD Tantalum Capacitor Dimension: (Unit: mm)
L= 7.3, S= 1.3, W1= 4.2, W2= 2.4, H= 2.8
Tips: Advantages of Tantalum Capacitor
Tantalum capacitors have the advantage of excellent performance. Tantalum capacitors are small in size, but they can reach larger capacitances. Tantalum capacitors have few competitors in applications such as power filtering and AC bypass. Tantalum capacitors use a unique process to make their operating temperature range-wide, ranging from minus 25 degrees to 125 degrees. In addition, tantalum capacitors have excellent stability, high accuracy, and small size. This capacitor is reinforced by the oxide film dielectric and restores its insulating ability. therefore. It has a unique self-healing function to prevent it from being cumulatively damaged by the connection.
The performance of tantalum capacitors is stable. In addition, high accuracy and good filtering of high frequencies are also the advantages of tantalum capacitors. Tantalum capacitors are generally used in relatively high-end products. We can see its applications on computer motherboards and graphics cards or on mobile phones. Tantalum capacitors are generally used in circuits that require relatively high capacitance stability.
