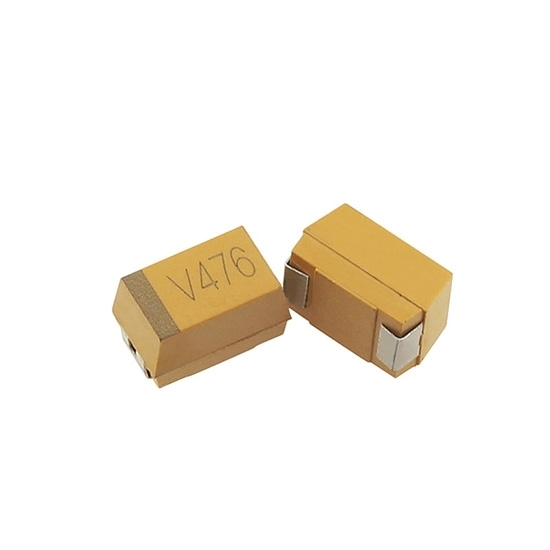

47μF 35V SMD Tantalum Capacitor

47μF tantalum capacitor is a subtype of electrolytic capacitor. Long life, high insulation resistance, small leakage current. Chip tantalum capacitor applies in various scenarios, such as electronic tool and video equipment.

Features:

• Small volume and small capacity error
• Wide temperature range, high temperature resistance
• Long life, high insulation resistance, small leakage current
• Equivalent series resistance (ESR) has good high frequency performance

Specification:

• Model: ATO-TC-47UF35SMD
• Capacitance: 47μF
• Rated Voltage: 35V
• Type: E-SMD
• Net Size: 7.3 mm
• Height Mounting (Maximum): 4.3 mm
• Equivalent Series Resistance: 1
• Tolerance: 10%
• Leading Spacing: Leadless
• Working Temperature: -85 ℃— +125 ℃

SMD Tantalum Capacitor Dimension: (Unit: mm)

L= 7.3, S= 1.3, W₁= 4.3, W₂= 2.4, H= 4.1

Tips: Characteristics of Tantalum Capacitor

Using metal tantalum as a medium, unlike ordinary electrolytic capacitors using electrolytes, tantalum capacitors do not need to be fired with aluminum-plated capacitor paper like ordinary electrolytic capacitors, and there is almost no inductance, but this also limits its capacity. In addition, since there is no electrolyte inside the tantalum capacitor, it is very suitable for working at high temperatures.

Tantalum capacitors are characterized by long life, high-temperature resistance, high accuracy, and excellent performance in filtering high frequency and changing waves. In the working process of tantalum electrolytic capacitors, it has the performance of automatically repairing or isolating the defects in the oxide film, so that the oxide film medium can be strengthened at any time and restore its proper insulating ability without continuous cumulative damage. This unique self-healing performance guarantees its long life and reliability advantages. Tantalum electrolytic capacitors have a very high working electric field strength and are larger than other types of capacitors to ensure their miniaturization.
