Note: This electric butterfly valve cannot be used for drinking water.

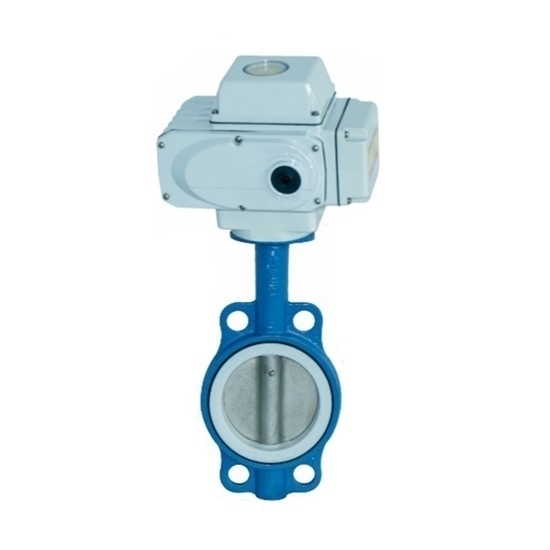

Factory price 5 inch electric butterfly valve is equipped with an aluminum alloy electric actuator to work. Our electric actuated butterfly valve can work at high temperature below 120 °C, which is a reliable device for flow control.
Specification
Butterfly Valve |
Model |
ATO-EBV-50WF |
Media |
Water, Air, Gas, Oil, Liquid, etc. |
Butterfly Valve Type |
Wafer Type |
PVC Type |
Port Size |
5 inch (DN125, 125mm) |
Body Material |
Cast Iron |
PVC |
Disc Material |
Stainless Steel (SS) |
UPVC |
Seat Material |
EPDM |
Working Temperature |
-10 °C to 120 °C |
Electric Actuator |
Model |
ATO-KLST-10 |
Frequency |
50/ 60Hz |
Power Supply (Optional) |
110V AC, 220V AC, 380V AC, 24V DC |
Actuator Input |
4-20mA DC |
Actuator Type |
Double Acting |
Output Torque & Response Time |
50N.m, 13s/ 15s 60N.m, 20s 100N.m, 30s |
Actuator Material |
Aluminum Alloy |
Wafer Butterfly Valve Body Dimension (Unit: mm)

DN |
L |
H1 |
H2 |
A |
D |
D1 |
N-φd |
125 |
54.5 |
127 |
370 |
198 |
215 |
184 |
4-23 |
PVC Butterfly Valve Body Dimension (Unit: mm)

JIS |
ANSI |
DIN |
D |
D2 |
D3 |
H2 |
H3 |
W1 |
W2 |
d1 |
D4 |
S |
H1 |
L |
D1 |
n-φe |
D1 |
n-φe |
D1 |
n-φe |
210 |
8-19 |
216 |
8-19 |
210 |
8-18 |
258 |
130 |
164 |
165 |
15 |
64 |
50 |
8.5 |
70 |
17 |
360 |
255 |
Details

Tips: Reasons for electric actuated wafer butterfly valve leakage
Electric soft sealing butterfly valve (the raw material of butterfly valve is ductile iron with rubber seal)
This kind of electric butterfly valve is often used for opening and closing of non-corrosive water at normal temperature.
Reasons of leakage
- The butterfly plate is corroded, due to the ductile iron plate, the valve plate will rust and cause leakage over time.
- The rubber valve seat is damaged, the long-term opening and closing, the rubber wear resistance is not good, resulting in the damage of the seal.
- The reason for the electric actuator is that the on-site debugging is not in place, resulting in leakage.
Electric hard seal butterfly valve (the raw material of butterfly valve is carbon steel with metal hard seal)
This kind of butterfly valve is used in relatively harsh working conditions, generally high temperature steam, heat transfer oil, etc.
Reasons of leakage
- Damage to the sealing surface, caused by high temperature steam cavitation.
- The fine and hard particles are washed away for a long time.
- The butterfly valve plate has air holes.
