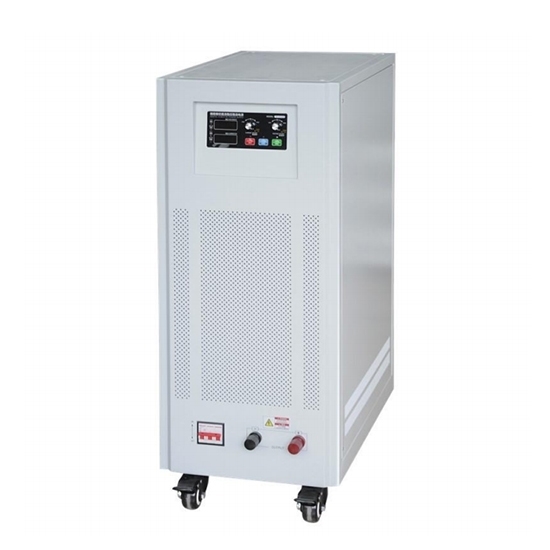

    50A 60V 3000W Variable Linear DC Power Supply

    5 out of 5 based on 3 reviews | Write a review
    $3,168.59
    High efficiency 0 to 50 amp, 0 to 60 volt variable linear DC power supply is switching mode with 3000W DC output. Output voltage and current are continuously adjustable at nominal value, with constant voltage (CV) / constant current (CC) output precision.
    *
    SKU: ATO-DCPS6050
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    High precision variable linear DC power supply for use in scientific research, product development, laboratories, schools and electronic production lines. It supplies 0 to 60V DC at up to 50A. Output voltage and current are adjustable and displayed on a 3 digit LED display.

    Specification

    Model ATO-JK6050S
    Input Voltage 110V or 220V AC (+/- 10%)
    Output Voltage Range 0-60V
    Output Current Range 0-50A
    Output Power 3000W
    Frequency 50Hz/60Hz
    Output Type Dual
    Display 3 digit
    Display Accuracy ≤ ±0.1%+2d
    Voltage Display Resolution 100mV
    Current Display Resolution 100mA
    Efficiency >65%
    Voltage Regulation
    Load Regulation (CV) 1×10-5+8mV
    Line Regulation (CV) 1×10-5+3mV
    Ripple & Noise (P-P) 0.5mV
    Temperature Coefficient 300PPm/℃
    Current Regulation
    Load Regulation (CC) ≤5mA
    Line Regulation (CC) 2×10-5+3mA
    Temperature Coefficient 500PPm/℃
    Others
    Protection Over Load and Over Voltage Protection
    Recovery Time ≤100µs
    Operating Ambient 0℃ to + 40℃/ 85%RH
    Storage Ambient -10℃ to + 80℃/ 80%RH
    Warranty 12 Months
    Size 480 (W) x 520 (H) x 700 (D) mm
    Weight 100kg
    Package List 1 x DC Power Supply Host, 1 x User Manual

    Tips: Difference between Linear DC power supply and switching power supply

    1. The linear power supply has many advantages of good accuracy, small ripple, good adjustment rate and low external interference. It is suitable for many occasions.
    2. The size of the switching power supply is smaller than the linear power supply, but the switching power supply has the problem of pollution to the power grid and radiation interference.
    3. The switching power supply is not suitable for continuous and adjustable occasions with 0 volt starting when outputting high voltage and large current, but it is suitable for occasions where fixed output or relatively fixed output does not require much radiation interference.
    4. The linear power supply is relatively easy to maintain. However, the switching power supply has a certain degree of difficulty in maintenance due to its dense components. In addition, because the circuit is completely different from the linear power supply, the technical quality of the maintenance personnel is relatively high, and the working state of each point of the circuit can be observed with an oscilloscope.
    Existing reviews of 50A 60V 3000W Variable Linear DC Power Supply
    We are looking to source a DC power supply capable of providing at least 70V/40A
    We are looking to source a DC power supply capable of providing at least 70V/40A, for a total power of at least 2800W. The linear power supply lacks the required voltage but otherwise is extremely close to what we are looking for. This product can fulfill our requirements?
    From: jason | Date: 10/11/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Unfortunately, we only provide the linear power supply with 60V/50A, and there is no 70V voltage version.
    Question about this power supply
    I measured the base to collector voltage with a multimeter in "diode mode". The 48 transistors gave me a reading of ~0.4V which I think is normal. After careful inspection, there is no sign of damage anywhere, no burns, no broken traces.
    From: Drew | Date: 05/04/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Please measure the G and Emitter of The 48 transistors again. If the 48 transistors G and Emitter read ~0.4V, that's normal. Please feed back this information to us and provide us with a photo of your multimeter measuring the G and Emitter readings for further confirmation.
    Good 3000W variable linear DC power supply
    I like this 3000W variable linear DC power supply very much. It can provide accurate voltage and current. It is the best I have used in this price range and can be compared with most high-end devices.
    From: Joshual | Date: 06/12/2021
    Was this review helpful? Yes No (0/0)
