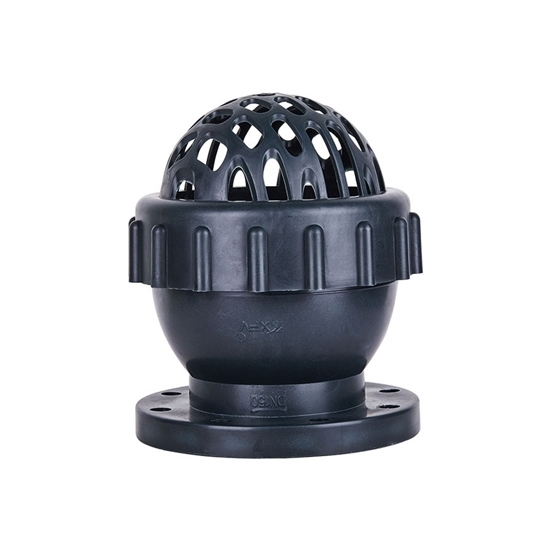

6" Plastic Foot Valve, UPVC Non Return Valve

The 6 inch plastic foot valve comes with UPVC material, flange connection, DN150 and 10kg PN, and is an ideal water pump-supporting facility for the petrochemical, chemical, textile, metallurgy, mining, drainage and irrigation industries.

Specifications

• Model: ATO-H42F-10S
• Port Size: 6 inch, DN150
• Nominal Pressure: 10kg
• Type: Foot Valve
• Body Material: UPVC
• Connection Form: Flange
• Weight: 7.6kg
• Suitable Medium: Water

Features

• The foot valve is mainly used in pumps and other mechanical equipment for slurry treatment. It is usually installed at the bottom of the pump's underwater suction pipe to limit the return of the liquid in the pump pipe to the water source.
• There are many water inlets and ribs on the foot valve cover, equipped with a screen to prevent impurities from flowing in and reduce clogging.
  With good sealing performance, small pressure loss and strong hydraulic performance, the
• UPVC foot valve is an ideal water pump supporting facility for petrochemical, chemical, textile, printing and dyeing, metallurgy, mining, drainage, irrigation industries, etc.

 Dimension (Unit: mm)

	Nominal Diameter	DN150
	D1	282
	D2	240
	L	335
	h	31
	N-Φ	8-Φ21

Applications

Foot valve is a type of valve that is used in pumping systems to prevent the backflow of fluids. UPVC foot valve is used in various applications such as irrigation, water supply, and other fluid handling systems where backflow prevention is necessary.

Tips: Sizes and Types of UPVC Foot Valve

UPVC foot valves are available in a range of sizes, from 1/2 inch to 8 inches or more, to accommodate various pipe diameters and flow rates. There are several types of UPVC foot valves available in the market, such as spring-loaded foot valves, flanged foot valves, and threaded foot valves. The type of foot valve chosen depends on the specific application requirements, such as the fluid type, pressure, and flow rate. In terms of design and performance, the type of foot valve may affect its pressure rating, temperature range, and resistance to chemicals and abrasion.
