    90 W DC Planetary Gear Motor, 12V/24V/48V

    5 out of 5 based on 1 reviews | Write a review
    $426.86
    Popular 90 watt DC planetary gear motor for sale, offers high speed ratio, 3000rpm, 0.29Nm rated torque and peak torque up to 0.86Nm, motor dimension 86mm, supports 12V/24V/36V/48V power supply, planetary gearbox with a high quality brushless DC motor are best for electric car.
    SKU: ATO-GEAR-P90
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Reasonable price 90 watt planetary gear motor is available with 12V/24V/36V/48V DC voltage power supply, 3000rpm rated speed, 0.29Nm low torque and peak torque to 0.86Nm, motor dimension 86mm. 3 phase BLDC motor works with a low noise planetary gearbox, designed for electric vehicle.

    Features:

    • 12V, 24V, 36V, 48V DC are available.
    • The planetary gearbox ratio is up to 250:1.
    • Power, voltage, speed, shaft, motor length and lead can be customized.
    • BLDC motor with a planetary gearbox has low power consumption, high efficiency and longer battery life.
    • Planetary gear motor provides high torque at low speeds.
    • Easy for speed adjustment and reversible direction.

    Specifications:

    Motor Model D5BLD90-12A-30S D5BLD90-24A-30S D5BLD90-36A-30S D5BLD90-48A-30S
    Motor Type BLDC Motor
    Power 90W
    Voltage 12V DC 24V DC 36V DC 48V DC
    Rated Current 9.38A 4.96A 3.13A 2.34A
    No Load Current <0.85A <0.7A <0.6A <0.5A
    No Load Speed 3000 rpm
    Rated Speed 3000 rpm
    Rated Torque 0.29 N·m
    Peak Torque 0.86 N·m
    Motor Dimension 86mm
    Shaft Diameter 14mm
    Construction Permanent Magnet
    Direction of Rotation CW/CCW
    Certificate CCC, CE, ROSH, LVD, EMC
    Recommended drive model BLD-300B BLD-120A BLD-300B BLD-300B
    Gear Ratio 4, 5, 7, 10, 16, 20, 25, 28, 35, 40, 50, 70, 80, 100, 125, 140, 175, 200, 250
    What Parameters of ATO Planetary Gear Motor Can Be Customized?
    Power Yes
    Voltage Yes
    Speed Yes
    Shaft Yes
    Motor Length Yes
    Motor Lead Yes

    Note: Please contact us for planetary gear motor drawing information before ordering.

    Allowable Torque with Gear Head

    Gear ratio 4 5 7 10 16 20 25 28 35 40 50 70 80 100 125 140 175 200 250
    Rated output speed (rpm) 750 600 429 300 188 150 120 107 86 75 60 43 38 30 24 21 17 15 12
    Rated torque (Nm) 1 1 2 3 4 5 7 8 9 11 13 19 21 21 27 30 38 38 41
    Peak torque (Nm) 3.3 4.1 5.8 8.3 12.9 16.2 20.2 22.6 28.3 32.3 40.4 43.0 61.9 64.5 80.6 75.0 82.0 75.0 82.0
    Rotor inertia (kgcm2) 0.094 0.092 0.091 0.091 0.094 0.092 0.092 0.091 0.091 0.091 0.091 0.091 0.092 0.092 0.092 0.091 0.091 0.091 0.091

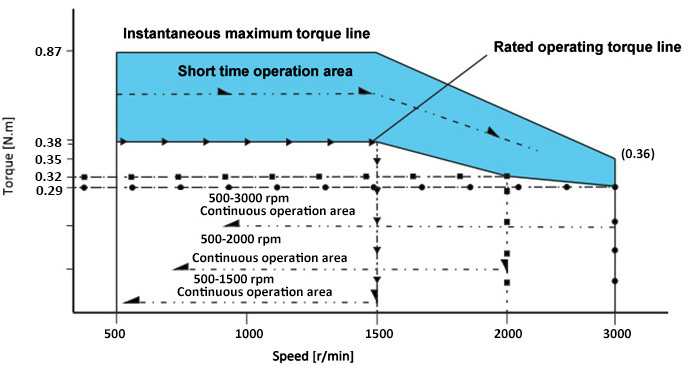

    Speed-torque curve

    90W dc planetary gear motor torque speed curve

    • Instantaneous maximum torque line
      The maximum torque momentarily impacts the load when the motor is started.
      Beyond this torque, the over-current protection of the driver will cause the motor to stop.
    • Short time operation area
      The motor can run at a short time within this torque range at different speeds.
      If the operation time is too long, the motor will generate heat, which may cause the motor to stop or burn.
    • Rated operating torque line
      The rated torque of motor running at different speeds, and the motor can run for a long time at this torque.
    • Continuous operating area
      When the motor rotates at different speeds, it runs continuously in this corresponding zone.

    Tips: What are the applications and characteristics of planetary gear motors?

    Planetary gear motors are small in size, light in weight, high in carrying capacity, long in service life, stable in operation and low in noise. With the characteristics of power splitting and multi-tooth meshing, it is suitable for lifting and transportation, construction machinery, metallurgy, mining, petrochemical, construction machinery, light industrial textiles, medical equipment, instrumentation, automobiles, ships, weapons and aerospace, etc.

    Planetary gear motor is a new type of planetary gear motor with wide versatility. The internal gear adopts low-carbon alloy steel carburizing and quenching plus gear grinding or nitriding process. The whole machine has the characteristics of small structural size, large output torque, large speed ratio, high efficiency and reliable performance.
