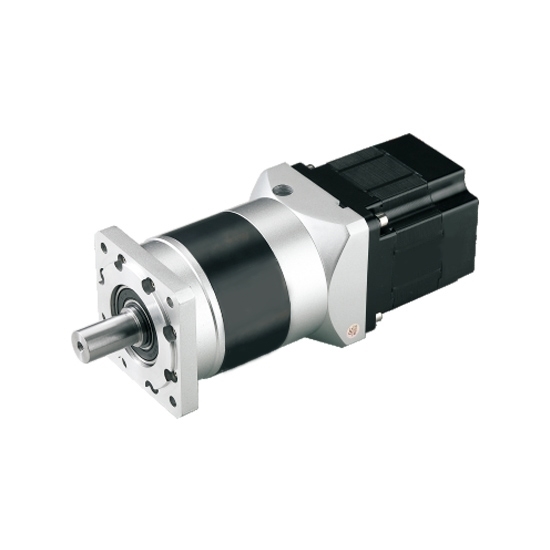

    200 W DC Planetary Gear Motor, 12V/24V/48V

    5 out of 5 based on 1 reviews | Write a review
    $530.62
    Hot selling 86mm 200W brushless dc motor with a planetary gearbox is from reliable planetary gear motor manufacturers, 3000rpm and 0.64Nm, 12V/24V/36V/48V power supply planetary gear motor has long battery life and low noise, provides high torque for industrial equipment.
    SKU: ATO-GEAR-P200
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Low price 200 watt DC planetary gear motor for sale online, optional 12V, 24V, 36V or 48V power supply, gear ratio from 4:1 to 250:1, rated speed 3000 rpm, rated torque 0.64Nm, motor dimension 86mm, brushless design for electric car and industrial equipment.

    Features:

    • 12V, 24V, 36V, 48V DC are available.
    • The planetary gearbox ratio is up to 250:1.
    • Power, voltage, speed, shaft, motor length and lead can be customized.
    • BLDC motor with a planetary gearbox has low power consumption, high efficiency and longer battery life.
    • Planetary gear motor provides high torque at low speeds.
    • Easy for speed adjustment and reversible direction.

    Specifications:

    Motor Model D5BLD200-12A-30S D5BLD200-24A-30S D5BLD200-36A-30S D5BLD200-48A-30S
    Motor Type BLDC Motor
    Power 200W
    Voltage 12V DC 24V DC 36V DC 48V DC
    Rated Current 20.83A 10.42A 6.94A 5.21A
    No Load Current <6.2A <4.13A <2.5A <1.61A
    No Load Speed 3300 rpm
    Rated Speed 3000 rpm
    Rated Torque 0.64 N·m
    Peak Torque 1.91 N·m
    Motor Dimension 86mm
    Shaft Diameter 14mm
    Construction Permanent Magnet
    Direction of Rotation CW/CCW
    Certificate CCC, CE, ROSH, LVD, EMC
    Recommended drive model BLDC-50A BLD-300B BLD-300B BLD-300B
    Gear Ratio 4, 5, 7, 10, 16, 20, 25, 28, 35, 40, 50, 70, 80, 100, 125, 140, 175, 200, 250
    What Parameters of ATO Planetary Gear Motor Can Be Customized?
    Power Yes
    Voltage Yes
    Speed Yes
    Shaft Yes
    Motor Length Yes
    Motor Lead Yes

    Note: Please contact us for planetary gear motor drawing information before ordering.

    Allowable Torque with Gear Head

    Gear ratio 4 5 7 10 16 20 25 28 35 40 50 70 80 100 125 140 175 200 250
    Rated output speed (rpm) 750 600 429 300 188 150 120 107 86 75 60 43 38 30 24 21 17 15 12
    Rated torque (Nm) 2.4 3.1 4.3 6.1 9.6 12.0 15.0 16.8 21.0 24.0 29.9 21.5 37.5 37.5 41.0 37.5 41.0 37.5 41.0
    Peak torque (Nm) 7.3 9.2 12.8 17.0 28.7 35.9 44.9 50.3 62.9 60.0 66.0 43.0 75.0 75.0 82.0 75.0 82.0 75.0 82.0
    Rotor inertia (kgcm2) 0.094 0.092 0.091 0.091 0.094 0.092 0.092 0.091 0.091 0.091 0.091 0.091 0.092 0.092 0.092 0.091 0.091 0.091 0.091

    Speed-torque curve

    200W dc planetary gear motor torque speed curve

    • Instantaneous maximum torque line
      The maximum torque momentarily impacts the load when the motor is started.
      Beyond this torque, the over-current protection of the driver will cause the motor to stop.
    • Short time operation area
      The motor can run at a short time within this torque range at different speeds.
      If the operation time is too long, the motor will generate heat, which may cause the motor to stop or burn.
    • Rated operating torque line
      The rated torque of motor running at different speeds, and the motor can run for a long time at this torque.
    • Continuous operating area
      When the motor rotates at different speeds, it runs continuously in this corresponding zone.

    Tips: What are the factors considered in the selection of gear reducer motors?

    • What is the geared motor used in the equipment? This has to take into account the specifications (size, shape) of the geared motor and the installation method.
    • Consider the application environment. For example, special environments such as large temperature difference between day and night, high temperature, cold, corrosiveness, and sealing (rainproof).
    • Consider power, including detailed transmission methods such as current, voltage, speed, reduction ratio, transmission ratio, torque, load capacity, noise, transmission efficiency (transmission mode), and number of stages.
    • For the verification of the radial force and axial force of the output shaft of the geared motor, the manufacturer shall provide reference standards for the axial force and radial force.
    Existing reviews of 200 W DC Planetary Gear Motor, 12V/24V/48V
    Strong and quiet
    I received a well made 12V DC planetary gear motor. Reliable motor with amazingly high torque. Very robust.
    From: Sarah | Date: 22/04/2022
    Was this review helpful? Yes No (0/0)
