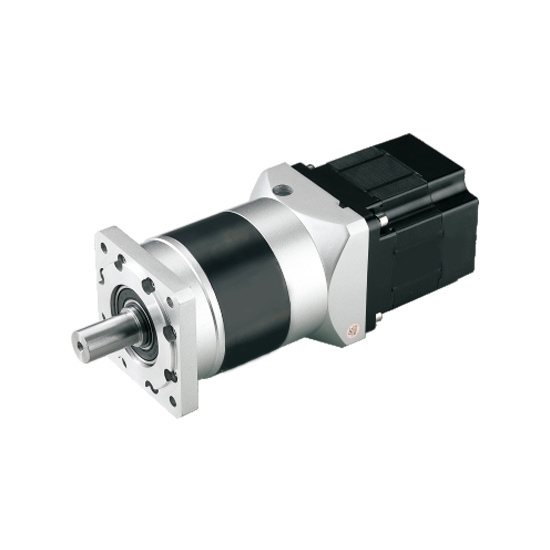

    450 W DC Planetary Gear Motor, 12V/24V/48V

    5 out of 5 based on 1 reviews | Write a review
    $622.98
    Affordable 450 watt high precision dc planetary gear motor for sale online. 3000rpm, 1.43Nm rated torque and peak torque up to 4.30Nm. 12/24/36/48 volt BLDC motor combines with a high speed ratio planetary gearbox, low noise and work efficiently, offers high torque at low speeds.
    SKU: ATO-GEAR-P450
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Compact DC planetary gear motor for sale, 450W, 3000 rpm rated speed, works at 12V, 24V, 36V or 48V power supply, brushless design for your electric car, and selectable gear ratio from 4:1 to 250:1. Power, voltage, speed, shaft, motor length and lead can be customized.

    Features:

    • 12V, 24V, 36V, 48V DC are available.
    • The planetary gearbox ratio is up to 250:1.
    • Power, voltage, speed, shaft, motor length and lead can be customized.
    • BLDC motor with a planetary gearbox has low power consumption, high efficiency and longer battery life.
    • Planetary gear motor provides high torque at low speeds.
    • Easy for speed adjustment and reversible direction.

    Specifications:

    Motor Model D5BLD450-12A-30S D5BLD450-24A-30S D5BLD450-36A-30S D5BLD450-48A-30S
    Motor Type BLDC Motor
    Power 450W
    Voltage 12V DC 24V DC 36V DC 48V DC
    Rated Current 46.88A 23.44A 15.63A 11.72A
    No Load Current <10.2A <7.13A <6.5A <5.61A
    No Load Speed 3300 rpm
    Rated Speed 3000 rpm
    Rated Torque 1.43 N·m
    Peak Torque 4.30 N·m
    Motor Dimension 86mm
    Shaft Diameter 14mm
    Construction Permanent Magnet
    Direction of Rotation CW/CCW
    Certificate CCC, CE, ROSH, LVD, EMC
    Recommended drive model BLDC-100A BLDC-50A BLD-750 BLD-750
    Gear Ratio 4, 5, 7, 10, 16, 20, 25, 28, 35, 40, 50, 70, 80, 100, 125, 140, 175, 200, 250
    What Parameters of ATO Planetary Gear Motor Can Be Customized?
    Power Yes
    Voltage Yes
    Speed Yes
    Shaft Yes
    Motor Length Yes
    Motor Lead Yes

    Note: Please contact us for planetary gear motor drawing information before ordering.

    Allowable Torque with Gear Head

    Gear ratio 4 5 7 10 16 20 25 28 35 40 50 70 80 100 125 140 175 200 250
    Rated output speed (rpm) 750 600 429 300 188 150 120 107 86 75 60 43 38 30 24 21 17 15 12
    Rated torque (Nm) 5.5 6.9 9.6 8.5 21.5 26.9 33.0 30.0 33.0 30.0 33.0 21.5 37.5 37.5 41.0 37.5 41.0 37.5 41.0
    Peak torque (Nm) 16.5 20.6 28.9 17.0 60.0 60.0 66.0 60.0 66.0 60.0 60.0 60.0 60.0 43.0 75.0 75.0 82.0 75.0 82.0
    Rotor inertia ((kgcm2) 0.094 0.092 0.091 0.091 0.094 0.092 0.092 0.091 0.091 0.091 0.091 0.091 0.092 0.092 0.092 0.091 0.091 0.091 0.091

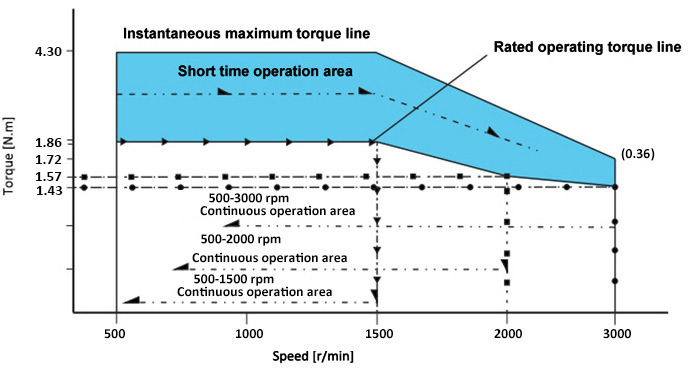

    Speed-torque curve

    450W dc planetary gear motor torque speed curve

    • Instantaneous maximum torque line
      The maximum torque momentarily impacts the load when the motor is started.
      Beyond this torque, the over-current protection of the driver will cause the motor to stop.
    • Short time operation area
      The motor can run at a short time within this torque range at different speeds.
      If the operation time is too long, the motor will generate heat, which may cause the motor to stop or burn.
    • Rated operating torque line
      The rated torque of motor running at different speeds, and the motor can run for a long time at this torque.
    • Continuous operating area
      When the motor rotates at different speeds, it runs continuously in this corresponding zone.

    Tips: Common causes of oil leakage of planetary gear motor

    • Rubber sealing products are aging, resulting in poor sealing effect
    • When the reducer is produced, the processing is not concentric, resulting in serious wear of the seal and oil leakage
    • When the reducer is connected to the end face of the factory, the sealing treatment is simple, or there is no sealing treatment, resulting in oil leakage
    • The bearing is damaged, causing serious wear of the seals and oil leakage
    • The end face connecting bolts are loose, causing oil leakage
    Existing reviews of 450 W DC Planetary Gear Motor, 12V/24V/48V
    Excellent gear motor
    This is a nice gear motor! I run it at 12V and I can barely hear it at that voltage. It looks like it will last a long time. The 3 phase brushless motor with a planetary gearbox can provide the torque I need.
    From: Johnny | Date: 22/04/2022
