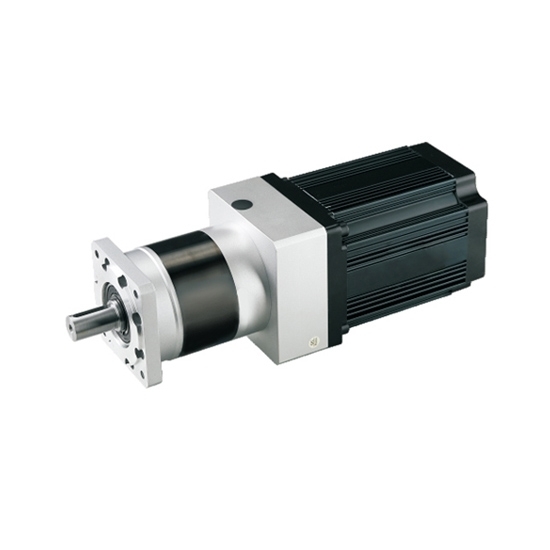

    1000 W DC Planetary Gear Motor, 24V/36V/48V

    5 out of 5 based on 1 reviews | Write a review
    $903.57
    Reasonable price 1000 watt planetary gear motor for sale online. 3 phase 24V/36V/48V BLDC motor with a planetary gearbox has 3000rpm speed ratio, 2.39N·m rated torque and peak torque up to 7.16N·m. Low noise 110mm planetary gear motor provides higher efficiency and increases torque transmission for electric vehicle and industrial equipment.
    SKU: ATO-GEAR-P1000
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Low price 1000W BLDC motor with a planetary gearbox is used for electric car, renewable energy systems and industrial equipment, dc planetary gear motor provides 3000rpm high speed at 24V, 36V or 48V, low noise, and selectable gear ratio form 3:1 to 250:1.

    Features:

    • 24V, 36V, 48V DC are available.
    • The planetary gearbox ratio is up to 250:1.
    • Power, voltage, speed, shaft, motor length and lead can be customized.
    • BLDC motor with a planetary gearbox has low power consumption, high efficiency and longer battery life.
    • Planetary gear motor provides high torque at low speeds.
    • Easy for speed adjustment and reversible direction.

    Specifications:

    Motor Model D110BLD1000-24A-30S D110BLD1000-36A-30S D110BLD1000-48A-30S
    Motor Type BLDC Motor
    Power 1000W
    Voltage 24V DC 36V DC 48V DC
    Rated Current 52.08A 34.72A 26.04A
    No Load Current <12A <8.5A <6A
    No Load Speed 4200 rpm
    Rated Speed 3000 rpm
    Rated Torque 3.18 N·m
    Peak Torque 9.55 N·m
    Motor Dimension 110mm
    Construction Permanent Magnet
    Direction of Rotation CW/CCW
    Certificate CCC, CE, ROSH, LVD, EMC
    Recommended drive model BD-50 BD-50 BD-50
    Gear Ratio 3, 4, 5, 7, 10, 16, 20, 25, 28, 35, 40, 50, 70, 80, 100, 125, 140, 175, 200, 250
    What Parameters of ATO Planetary Gear Motor Can Be Customized?
    Power Yes
    Voltage Yes
    Speed Yes
    Shaft Yes
    Motor Length Yes
    Motor Lead Yes

    Note: Please contact us for planetary gear motor drawing information before ordering.

    Allowable Torque with Gear Head

    Gear ratio 3 4 5 7 10 16 20 25 28 35 40 50 80 100 125 140 175 200 250
    Rated output speed (rpm) 1000 750 600 429 300 188 150 120 107 86 75 60 38 30 24 21 17 15 12
    Rated torque (Nm) 9.2 12.2 15.3 21.4 30.5 47.9 59.8 74.8 83.8 104.7 96.0 105.5 120.0 120.0 132.0 120.0 132.0 120.0 132.0
    Peak torque (Nm) 27.5 36.6 45.8 64.1 91.6 143.6 179.5 211.0 192.0 211.0 192.0 211.0 240.0 240.0 264.0 240.0 264.0 240.0 264.0
    Rotor inertia (kgcm2) 0.400 0.309 0.290 0.285 0.280 0.309 0.290 0.290 0.290 0.285 0.280 0.280 0.290 0.291 0.290 0.285 0.285 0.280 0.283

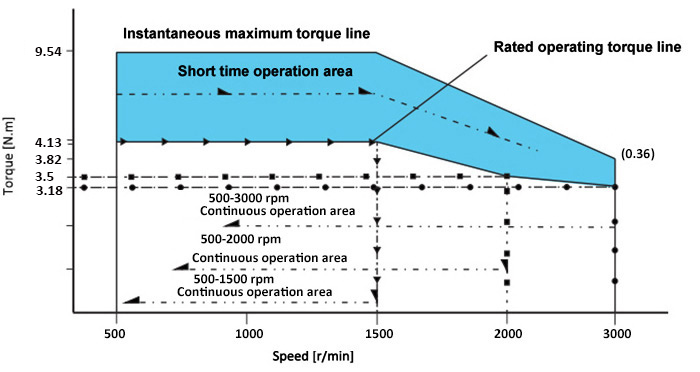

    Speed-torque curve

    1000W dc planetary gear motor torque speed curve

    • Instantaneous maximum torque line
      The maximum torque momentarily impacts the load when the motor is started.
      Beyond this torque, the over-current protection of the driver will cause the motor to stop.
    • Short time operation area
      The motor can run at a short time within this torque range at different speeds.
      If the operation time is too long, the motor will generate heat, which may cause the motor to stop or burn.
    • Rated operating torque line
      The rated torque of motor running at different speeds, and the motor can run for a long time at this torque.
    • Continuous operating area
      When the motor rotates at different speeds, it runs continuously in this corresponding zone.

    Tips: What are the common problems in the application of planetary reducer?

    • The pressure in the fuel tank rises: In a closed reducer, when each pair of gears are in conflict, the heat must be announced. According to Boyle Mallot’s law, as the working time increases, the temperature in the reducer case gradually rises. The internal volume of the reduction box remains unchanged, so the pressure in the box increases accordingly, and the lubricating oil in the box is splashed and spilled on the inner wall of the reduction box. Due to the relatively strong oil permeability, under the pressure in the tank, where the seal is not tight, the oil will leak out from where.
    • Unreasonable structural planning of the reducer causes oil leakage: If the planned reducer does not have a vent cover, the reducer cannot complete the pressure equalization, causing the pressure in the box to become higher and higher, and oil leakage occurs.
    • Too much lubricating oil: during the work process of the reducer, the oil pool is agitated fiercely, and the lubricating oil splashes everywhere in the machine. If the lubricating oil is too much, a lot of lubricating oil will accumulate on the shaft seal, joint surface, etc., resulting in leakage.
    Existing reviews of 1000 W DC Planetary Gear Motor, 24V/36V/48V
    Awesome little planetary gear motor!
    I ordered a couple planetary gear motors, a 24V and a 36V motor. I hooked the 24V motor up to my variable DC power supply, and it worked great in either direction. The 36V one also did a good job.
    From: Mark | Date: 06/05/2022
