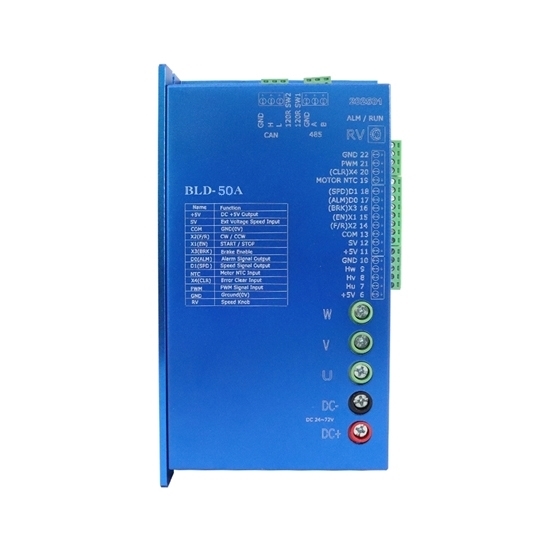

    24V-60V Brushless DC Motor Controller for 36/48 BLDC Motor

    5 out of 5 based on 4 reviews | Write a review
    $283.36
    Low price brushless DC motor controller works at 24V to 60V power supply to control speed for 36V/ 48V BLDC motor. This motor driver is equipped with a variety of communication interfaces, and can realize different mode control, PWM open loop and speed closed loop.
    *
    SKU: ATO-BLDC-C50
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    BLDC motor driver is equipped with the basic control interface and the upper computer can realize the main functions of the whole system. The hall sensor motor can be controlled by square wave or positive wave algorithm.

    Specification

    Model ATO-BD50 (Click it to view more controller specs)
    Rated Current 50A
    Rated Input Voltage Range DC +24~ +72V
    Operating Temperature Range -40-+80℃
    IO Input Supports NPN, PNP
    NPN: 0V is low, 5~24V is high, current 20mA
    PNP: 13V high output, low to ground
    IO Output Open Drain NPN Output Voltage: not exceed 30V, Current: 500mA
    SV Input Characteristics DC 0-5V Range or DC 0-10V Range
    Deadband Voltage Adjustment Range: 0.2~1.0V
    Input Internal Resistance:100k
    PWM Input Characteristics Frequency Range: 1~10kHz (50% duty cycle)
    Duty Cycle Range:0~100%(100Hz-1000Hz)
    Signal Voltage: DC 5~24V
    Carrier Frequency 10~20kHz
    485 Communication Parameters ID: 1~255
    Baud Rate: 9600/19200/38400/57600/115200 bps
    CAN Communication Parameters ID: 0~255
    Baud Rate: 125/250/500 kbps
    Load 150% of Rated Current
    Overload Duration: 30~1s (at 150% Rated)
    External Temperature Sensor Customizable
    ntc=mf52-103f-3435-55l
    Control Method Torque Loop (Open Loop) Speed Loop (Close Loop)
    Acceleration and Deceleration Times 0.5-16s Motor Without Load
    Overheating Protection Inside the Driver:+85℃
    Note*
    1. RS485 (Modbus RTU) and CAN Bus cannot be used at the same time.
    2. VRM and PWM cannot be used at the same time.

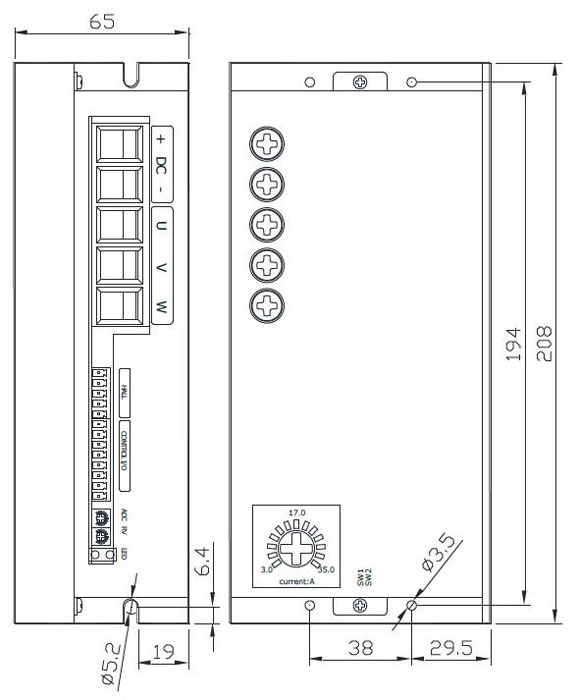

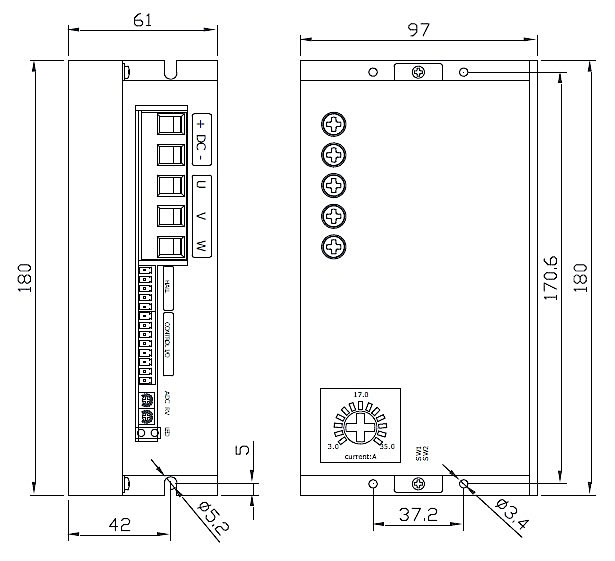

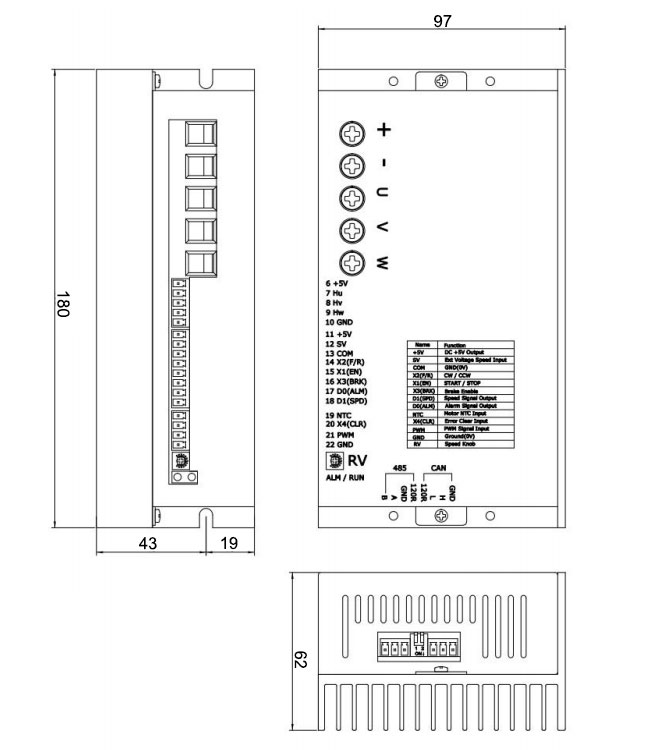

    Dimensions (Unit: mm)

    Dimensions of Brushless DC Motor Driver 24V 60V

    Note:

    • Please install, connect, and debug the motor controller with industry technicians.
    • It is not allowed to install, remove,e or replace the circuit of the motor controller when it is live.
    • Be sure to install necessary protective devices between the power input and the power supply (battery) to avoid dangerous accidents or fatal injuries.
    • Need to install: overcurrent protector, insurance, emergency switch.
    • Please do the isolation and insulation protection between the motor controller and the ground and equipment.
    • If there is a real need for live debugging of this motor controller, please choose a non-metallic well-insulated screwdriver or special debugging tool.
    • This motor controller shall be installed in a well-ventilated environment.
    • This motor controller cannot be directly used in high humidity, dust, corrosive gas, or strong vibration of the abnormal environment.

    Details

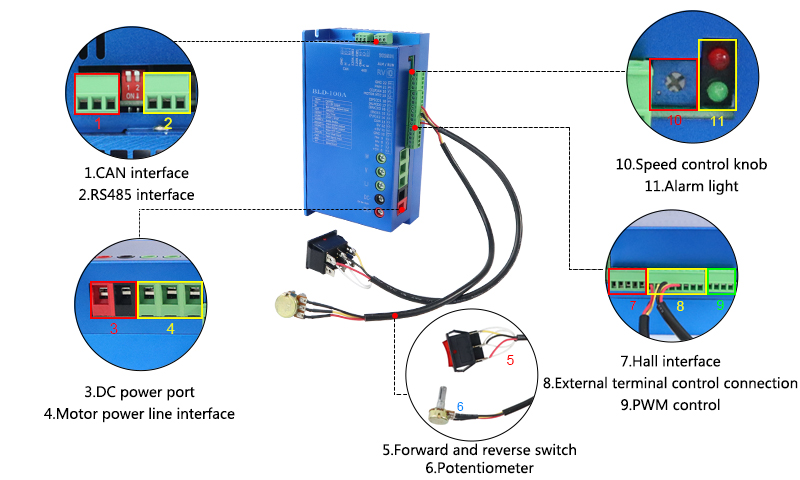

    24V-60V Brushless DC Motor Controller Details

    Tips: What is a brushless DC motor controller?

    The brushless DC motor controller is composed of the motor's main body and the driver. It is a typical mechatronic product. The BLDC motor drivers have the advantages of good adjustment and starting performance of the DC motor and the simple structure of the asynchronous motor without maintenance. The highly reliable motor speed regulation field has been widely used.

    The motor controller is the command center for the normal operation of the brushless DC motor and the realization of various speed-regulating servo functions. It mainly completes the following functions: logically synthesize various signals to provide various control signals to the drive circuit; generate PWM modulation signals, realize the speed regulation of the motor, adjust the speed of the motor to the current loop, so that the system has better dynamic static performance, and realize the fault protection functions such as short circuit, over current, under voltage, and locked rotor.

    BLDC Motor Controller Circuit: 'IO + SV' Control

    This video walks you through setting up a BLDC motor controller using the "Input/Output & Speed Voltage" method, covering control basics, required components, wiring, and operation.

    Existing reviews of 24V-60V Brushless DC Motor Controller for 36/48 BLDC Motor
    can i drive sensor-less Motor using this Driver?
    can i drive sensor-less Motor using this Driver?
    From: Vikram | Date: 14/06/2022
    Was this review helpful? Yes No (0/0)
    ATO Responded
    No, you can't.
    What is the capacitance of the capacitors in the MCU?
    A peer of mine helped us purchase an ATO TH-G Series motor controller. We are currently designing a precharge circuit for the MCU and are wondering what the capacitance of the capacitors in the MCU is.
    From: Miser | Date: 25/05/2022
    Was this review helpful? Yes No (0/0)
    ATO Responded
    What's the specific model of the controller?
    Works well.
    Excellent brushless DC motor controller, extremely smooth and great speed control. Everything works as expected and without any issues. Will buy more of these for sure!
    From: Della | Date: 18/05/2022
    Was this review helpful? Yes No (0/0)
    Worked as described
    This  controller worked as described. We install it according to the instruction,  and connect it properly, It works well on three phase motor. So far so good! I'll update if there is anything wrong.
    From: Michael | Date: 22/03/2022
    Was this review helpful? Yes No (0/0)
    Load more reviews...
    Write your review for 24V-60V Brushless DC Motor Controller for 36/48 BLDC Motor
    • Only registered users can write reviews
    • Bad
    • Excellent
    Customers who bought this item also bought

    24V-60V Brushless DC Motor Controller for 24/36/48/60V BLDC Motor

    $473.06
    SKU: ATO-BLDC-C100
    Low cost BLDC motor controller works at 24V to 60V power supply to control speed for 24/36/48/60V 3 phase BLDC motor. Rated current 75A, 50 rpm in hall sensor motor and 1 rpm in encoder sensor. This brushless electric motor driver should be installed in a well-ventilated environment.

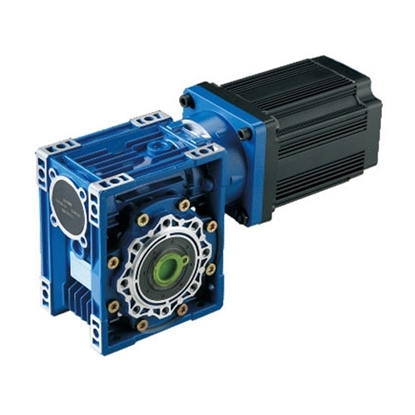

    450 W DC Worm Gear Motor, 12V/24V/48V

    $709.66
    SKU: ATO-GEAR-W450
    Compact DC worm gear motor for sale, 450 W, works at 12V, 24V, 36V or 48V power supply, brushless design for electric car, and selectable gear ratio from 7.5:1 to 100:1. Different parameters can be customized.

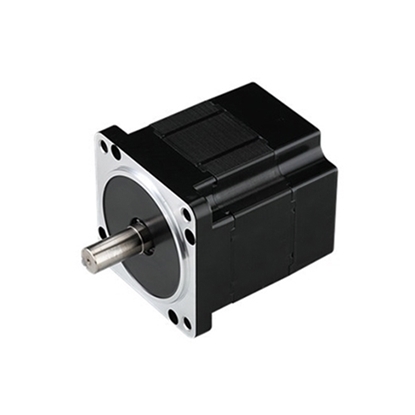

    1/4 hp (200W) Brushless DC Motor, 24V/48V, 0.64 Nm
