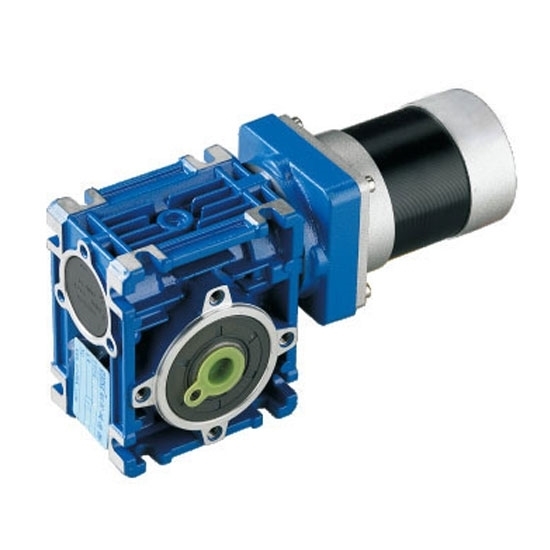

    100 W DC Worm Gear Motor, 12V/24V/48V

    5 out of 5 based on 1 reviews | Write a review
    $484.27
    100 W DC worm gear motor for sale at economical price, it is a 3 phase brushless motor and worm gearbox providing high torque and high efficiency at 12V, 24V, 36V or 48V, 2000 rpm rated speed, rated torque at 0.32N·m and peak torque at 0.96N·m, gear ratio from 7.5:1 to 80:1.
    SKU: ATO-GEAR-W100
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    100 W DC worm gear motor works at 2000 rpm rated speed, choosing gear ratio from 7.5:1 to 80:1. Worm gearbox drives BLDC motor with high torque and low noise at 12V, 24V, 36V or 48V.

    Specification

    Motor Model ATOD2BLD100-12A ATOD2BLD100-24A ATOD2BLD100-36A ATOD2BLD100-48A
    Motor Type BLDC Motor
    Power 100W
    Voltage 12V DC 24V DC 36V DC 48V DC
    Rated Current 10.42A 5.21A 3.47A 2.60A
    No Load Current <1.2A <0.8A <0.6A <0.4A
    No Load Speed 2800 rpm
    Rated Speed 2000 rpm
    Rated Torque 0.32N·m
    Peak Torque 0.96N·m
    Motor Dimension 57mm
    Shaft Diameter 11mm
    Construction Permanent Magnet
    Direction of Rotation CW/CCW
    Certificate CCC, CE, ROSH, LVD, EMC
    Gear Ratio 7.5, 10, 15, 20, 30, 40, 50, 60
    Recommended Drive Model ATO-BLD750 ATO-BLD300B ATO-BLD120A ATO-BLD300B
     What Parameters of ATO Worm Gear Motors Can Be Customized?
    Power Yes
    Voltage Yes
    Speed Yes
    Shaft Yes
    Motor Length Yes
    Motor Lead Yes

    Allowable Torque with Gear Head

    Gear Ratio 7.5 10 15 20 25 30 40 50 60 80
    Rated Output Speed (rpm) 267 200 133 100 80 67 50 40 33 25
    Rated Output Torque (Nm) 2.9 3.8 5.7 7.4 9.1 10.6 13.4 12 17 12

    Note:

    • This torque value is the rated output value of the reducer, not the final motor + output torque value T after reducer.
    • The formula for calculating the output torque after the final motor + reducer: T = rated torque of the motor * reduction ratio * 0.6, and T≤ rated allowable output torque value of the reducer.

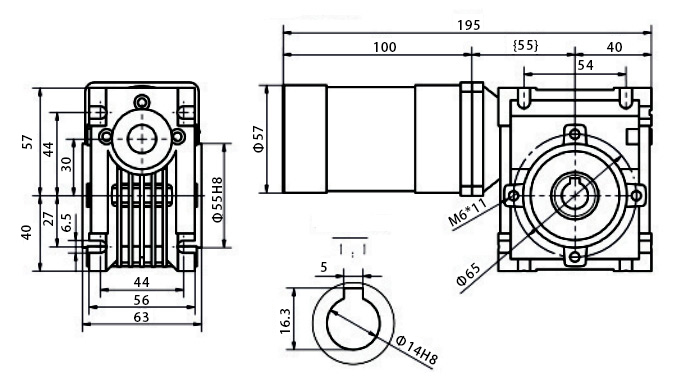

    Dimensions (Unit: mm)

    Mounting screws are included with gearhead

    Dimensions of 100 W DC Worm Gear Motor

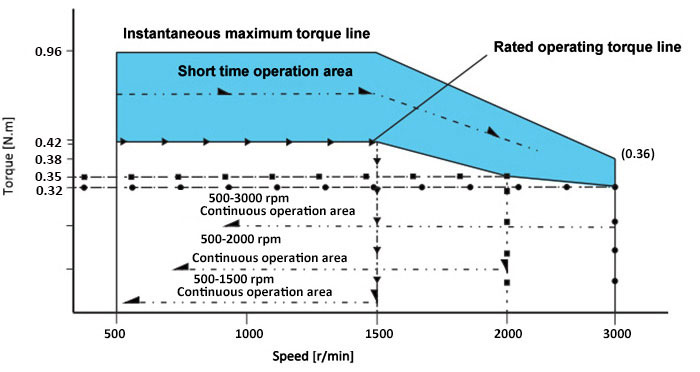

    Speed-Torque Curve

    100 W DC Worm Gear Motor Speed Torque Curve

    • Instantaneous maximum torque line
      The maximum torque momentarily impacts the load when the motor is started.
      Beyond this torque, the over-current protection of the driver will cause the motor to stop.
    • Short time operation area
      The motor can run at a short time within this torque range at different speeds.
      If the operation time is too long, the motor will generate heat, which may cause the motor to stop or burn.
    • Rated operating torque line
      The rated torque of motor running at different speeds, and the motor can run for a long time at this torque.
    • Continuous operating area
      When the motor rotates at different speeds, it runs continuously in this corresponding zone.

    Details

    100W DC Worm Gear Motor Details

    Tips: How to maintain the DC worm gear motor?

    • Don't hammer the worm gear motor housing by gravity to avoid damage.
    • Regularly check whether the installation foundation, seals, drive shaft, etc. are normal. If an abnormal phenomenon occurs, stop the machine immediately for inspection and troubleshoot.
    • Try to avoid direct sunlight and harsh conditions for the worm gear motor.
    • Good ventilation should be provided to ensure the normal heat dissipation of the worm gear motor.
    • Use recommended lubricating oil.

    The above methods can extend the life span of the worm gear motor to a certain extent.
