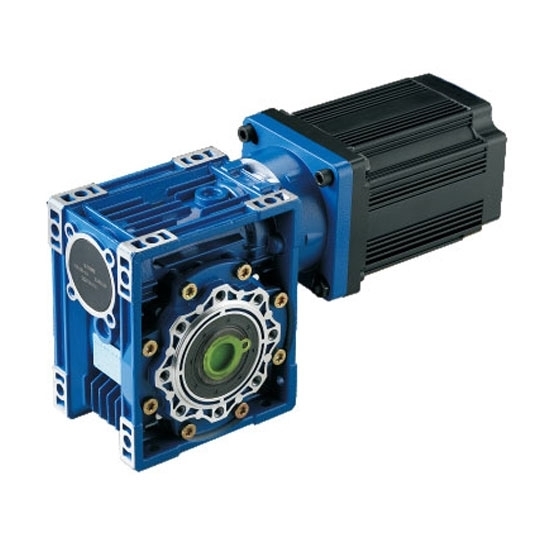

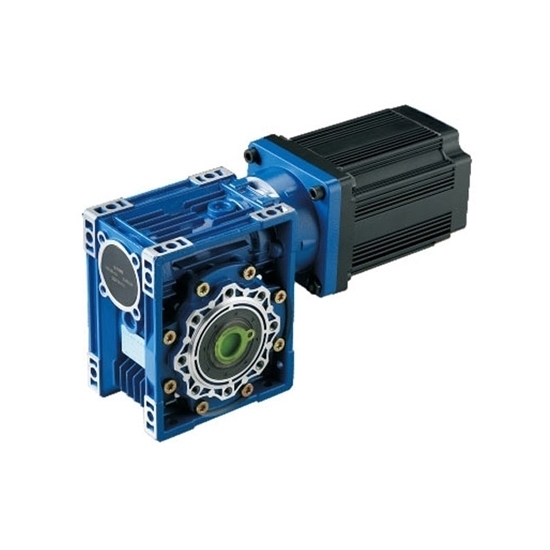

    200 W DC Worm Gear Motor, 12V/24V/48V

    5 out of 5 based on 2 reviews | Write a review
    $620.62
    Economical price 200 W DC worm gear motor for sale online, optional 12V, 24V, 36V or 48V power supply, gear ratio from 7.5:1 to 100:1, rated speed 2000 rpm, rated torque 0.64N·m, motor dimension 86mm, brushless design for electric car and industrial equipment.
    *
    *
    SKU: ATO-GEAR-W200
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Buy 200 W worm gear motor at best price. This BLDC gear motor is best for new energy electric car, renewable energy systems, industrial equipment which require high torque density and compact occasions.

    Specification

    Motor Model ATOD5BLD200-12A ATOD5BLD200-24A ATOD5BLD200-36A ATOD5BLD200-48A
    Motor Type BLDC Motor
    Power 200W
    Voltage 12V DC 24V DC 36V DC 48V DC
    Rated Current 20.83A 10.42A 6.94A 5.21A
    No Load Current <6.2A <4.13A <2.5A <1.61A
    No Load Speed 2700 rpm
    Rated Speed 2000 rpm
    Rated Torque 0.64N·m
    Peak Torque 1.92N·m
    Motor Dimension 86mm
    Shaft Diameter 11mm
    Construction Permanent Magnet
    Direction of Rotation CW/CCW
    Certificate CCC, CE, ROSH, LVD, EMC
    Gear Ratio 7.5, 10, 15, 20, 25, 30, 40, 50, 60, 80, 100
    Recommended Drive Model ATO-KVD2412N ATO-BLD300B ATO-BLD300B ATO-BLD300B
    What Parameters of ATO Worm Gear Motors Can Be Customized?
    Power Yes
    Voltage Yes
    Speed Yes
    Shaft Yes
    Motor Length Yes
    Motor Lead Yes

    Allowable Torque with Gear Head

    Gear Ratio 7.5 10 15 20 25 30 40 50 60 80 100
    Rated Output Speed (rpm) 267 200 133 100 80 67 50 40 33 25 20
    Rated Output Torque (Nm) 4.3 5.7 8.6 11.2 13.6 15.9 17.0 12.0 17.0 12.0 29.0

    Note:

    • This torque value is the rated output value of the reducer, not the final motor + output torque value T after reducer.
    • The formula for calculating the output torque after the final motor + reducer: T = rated torque of the motor * reduction ratio * 0.6, and T≤ rated allowable output torque value of the reducer.

    Dimensions (Unit: mm)

    Mounting screws are included with gearhead

    Dimensions of 200 W DC Worm Gear Motor

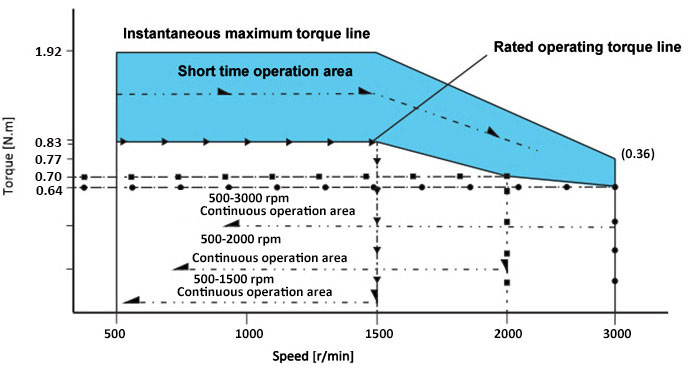

    Speed-Torque Curve

    200 W DC Worm Gear Motor Speed Torque Curve

    • Instantaneous maximum torque line
      The maximum torque momentarily impacts the load when the motor is started.
      Beyond this torque, the over-current protection of the driver will cause the motor to stop.
    • Short time operation area
      The motor can run at a short time within this torque range at different speeds.
      If the operation time is too long, the motor will generate heat, which may cause the motor to stop or burn.
    • Rated operating torque line
      The rated torque of motor running at different speeds, and the motor can run for a long time at this torque.
    • Continuous operating area
      When the motor rotates at different speeds, it runs continuously in this corresponding zone.

    Details

    200W DC Worm Gear Motor Details

    Tips: The functions of worm gear reducer motor

    The application of worm gear motor can be seen in the application of worm gear motor from the transmission of large power to small load and precise angle transmission. In industrial applications, the worm gear motor has the function of reducing speed and increasing torque. Therefore, it is widely used in speed and torque conversion equipment.

    The main functions of the worm gear motor are:

    • Reduce the speed and increase the output torque at the same time. The torque output ratio is the motor output multiplied by the reduction ratio, but it should be noted that the rated torque of the reducer cannot be exceeded.
    • Deceleration reduces the inertia of the load at the same time, and the reduction in inertia is the square of the reduction ratio.
