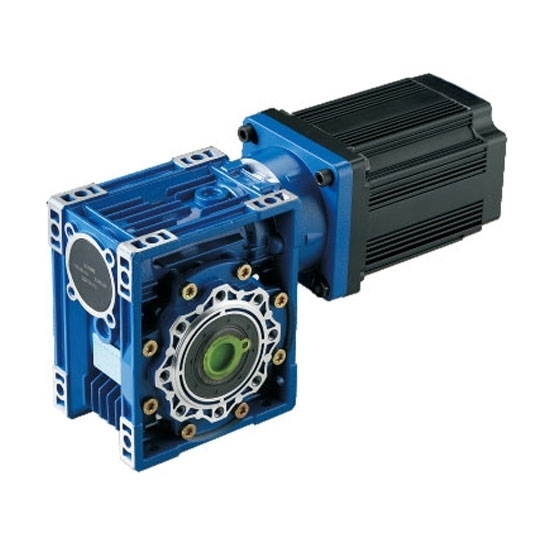

    750 W DC Worm Gear Motor, 24V/48V

    5 out of 5 based on 1 reviews | Write a review
    Low price 750 W DC worm gear motor is a BLDC motor with worm gearbox used for electric car, renewable energy systems and industrial equipment. It provides 2000 rpm high speed at 24V, 36V or 48V, low noise, and selectable gear ratio form 7.5:1 to 100:1.
    SKU: ATO-GEAR-W750
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    750 W BLDC motor is equipped with worm gearbox providing high speed and high efficiency at 24V, 36V or 48V power supply. Its power, voltage, speed, shaft, motor length and lead can be customized.


    Motor Model ATOD5BLD750-24A ATOD5BLD750-36A ATOD5BLD750-48A
    Motor Type BLDC Motor
    Power 750W
    Voltage 24V DC 36V DC 48V DC
    Rated Current 39.06A 26.04A 19.53A
    No Load Current <9.2A <8.13A <6.5A
    No Load Speed 2700 rpm
    Rated Speed 2000 rpm
    Rated Torque 2.39N·m
    Peak Torque 7.17N·m
    Motor Dimension 86mm
    Shaft Diameter 11mm
    Construction Permanent Magnet
    Direction of Rotation CW/CCW
    Certificate CCC, CE, ROSH, LVD, EMC
    Gear Ratio 7.5, 10, 15, 20, 25, 30, 40, 50, 60, 80, 100
    Recommended Drive Model ATO-BD100 ATO-BLD50A ATO-BLD750
    What Parameters of ATO Worm Gear Motors Can Be Customized?
    Power Yes
    Voltage Yes
    Speed Yes
    Shaft Yes
    Motor Length Yes
    Motor Lead Yes

    Allowable Torque with Gear Head

    Gear Ratio 7.5 10 15 20 25 30 40 50 60 80 100
    Rated Output Speed (rpm) 267 200 133 100 80 67 50 40 33 25 20
    Rated Output Torque (Nm) 21.5 28.7 43.0 55.9 68.0 79.5 68.0 54.0 60.0 52.0 40.0


    • This torque value is the rated output value of the reducer, not the final motor + output torque value T after reducer.
    • The formula for calculating the output torque after the final motor + reducer: T = rated torque of the motor * reduction ratio * 0.6, and T≤ rated allowable output torque value of the reducer.

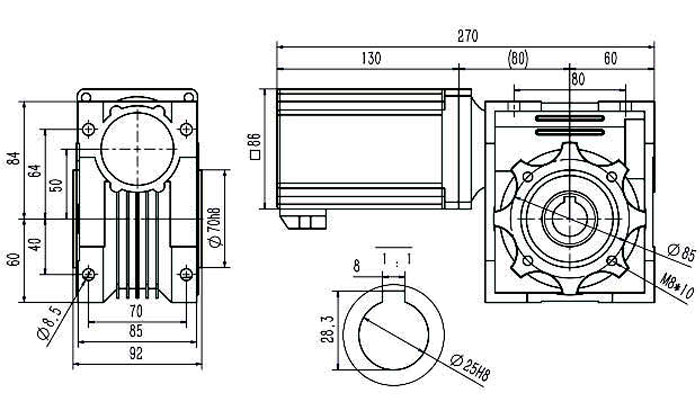

    Dimensions (Unit: mm)

    Mounting screws are included with gearhead

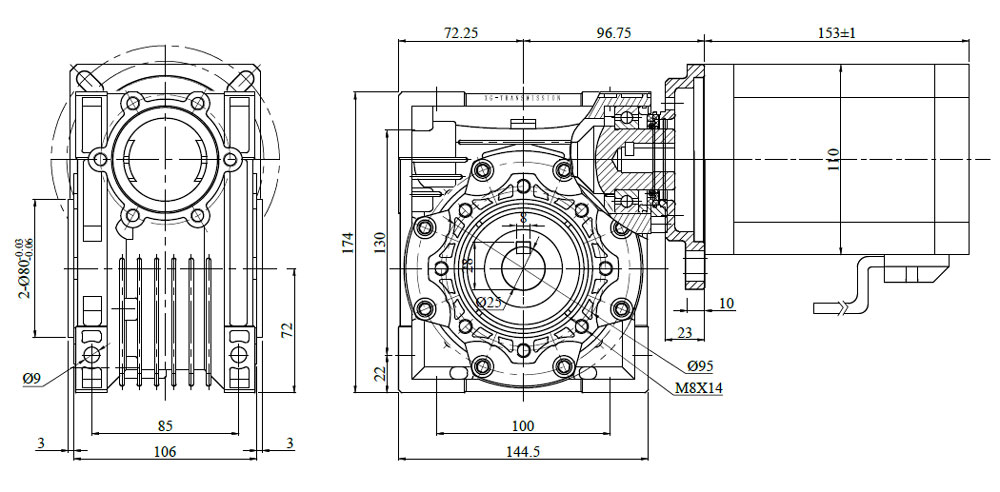

    Dimensions of 750 W DC Worm Gear Motor

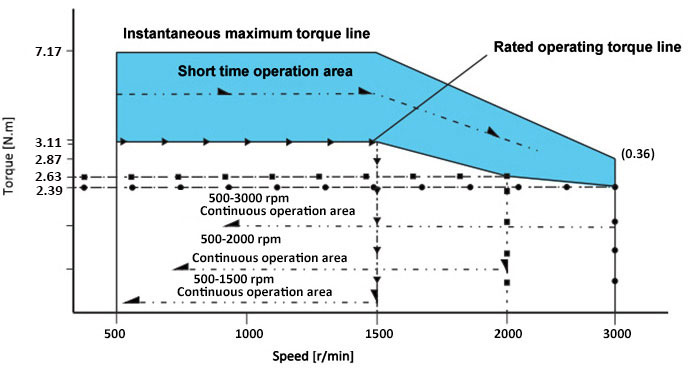

    Speed-Torque Curve

    750 W DC Worm Gear Motor Speed Torque Curve

    • Instantaneous maximum torque line
      The maximum torque momentarily impacts the load when the motor is started.
      Beyond this torque, the over-current protection of the driver will cause the motor to stop.
    • Short time operation area
      The motor can run at a short time within this torque range at different speeds.
      If the operation time is too long, the motor will generate heat, which may cause the motor to stop or burn.
    • Rated operating torque line
      The rated torque of motor running at different speeds, and the motor can run for a long time at this torque.
    • Continuous operating area
      When the motor rotates at different speeds, it runs continuously in this corresponding zone.


    750W DC Worm Gear Motor Details


    The main power transmission mode of DC worm gear motor is staggered and vertical. Such a simple structure can reduce the utilization rate of space to a certain extent and save installation steps.

    The transmission mode of the worm gear motor is currently the most popular power transmission used in various mechanical equipment. In general, such a compact type of reducer conforms to the needs of the development of the times, continues to be effective, stable and reliable.

    Obviously, it is impossible to see the uneven load distribution of the ordinary motor which leads to the damage of the mechanism. The vertical transmission of power has a very good effect and cancels the load pulse generated. It is also true that worm gear motors are used to transmit loads with higher torque.
