    1 hp (750W) 24V/48V/72/96V Brushless DC Motor

    5 out of 5 based on 6 reviews | Write a review
    $352.77
    Buy 1 hp (750W) BLDC motor has good control performance and reasonable price. It comes with 80 mm compact square flange size, 3000 rpm rated speed, 2.4 Nm holding torque, works at 24V/48V DC power supply, 72V/92V voltage is available. Selecting our powerful controller and gearbox combines with the motor will provide you higher torque, higher efficiency and more reliable.
    SKU: ATO-BLDC-750R3
    *
    *
    *
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 15-30 days

    PRODUCT DESCRIPTION

    3 phase 750 watt power rating brushless DC motor, 3000 rpm rated speed, maximum speed up to 3600 rpm, 2.4 Nm holding torque, peak torque to 7.5 Nm, 24 volt, 48 volt,  72 volt, 96 volt DC voltage for selection. Its high power density, low-speed stability, large start-up torque, small start-up current, making it widely used in automatic machinery, medical institutions, electronic equiment etc.

    1 hp (750W) BLDC MOTOR SPECIFICATION

    Model ATO-80WDM02430 (Click it to see more motor specs)
    Matched Controller Model ATOTH-G (Click it to see more controller specs)
    Square Flange Size 80 mm
    Phase 3 phase
    Number of Pole 4 pairs of poles (8 poles)
    Rated Voltage 24V DC 48V DC 72V DC 96V DC
    Rated Current 39.27 A 19.5 A 13.09 A 9.82 A
    Rated Power 1 hp (750W)
    Maximum Power 2.3 kW
    Holding Torque 2.4 Nm
    Peak Torque 7.5 Nm
    Rated Speed 3000 rpm
    Maximum Speed 3600 rpm
    Efficiency 85%
    Rotor Inertia 0.8 kgcm2
    Electric Potential 6.7 V/K rpm 13.3 V/K rpm 20 V/K rpm 26.7 V/K rpm
    Brake Apparatus Voltage 24V DC, (If 24V voltage is not connected, the motor brake)
    Motor Lead Length by Default 30 cm, if buy a kit (motor+controller), extra 1 meter of wire shall be provided.
    Warranty Time 12 months
    Certificate CE, ROHs, ISO/TS16949
    Insulation Rank F
    Protection Rank IP54
    Temperature -20~55℃
    Humidity <90%RH (no dewing)
    Motor Weight 3 kg
    NOTE: Tell us your application needs, we can customize the BLDC motor to meet your precise power, speed, voltage and current requirements.

    BLDC MOTOR LINE DEFINITION

    Power Wire Power Line Color Red Yellow Blue
    Motor Winding U V W
    Feedback Wire Hall Line Color Orange and Black Orange Yellow Blue Green
    Hall Signal Definition 5V 0V Hall A Hall B Hall C
    Plug serial number 1 2 3 4 5

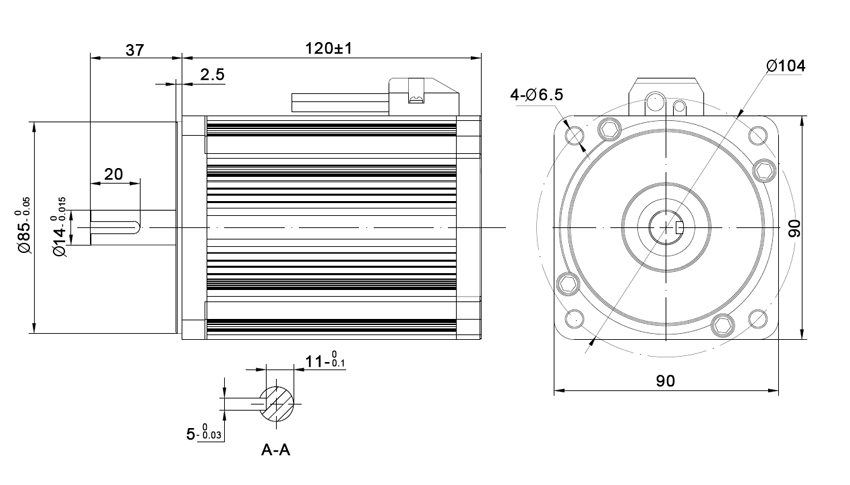

    24V/48V/72V/96V BLDC MOTOR DIMENSION (Unit=mm)

    750w 3000rpm bldc motor size

    MOTOR AND HAll RELATIONSHIP

    BLDC motor and hall relationship

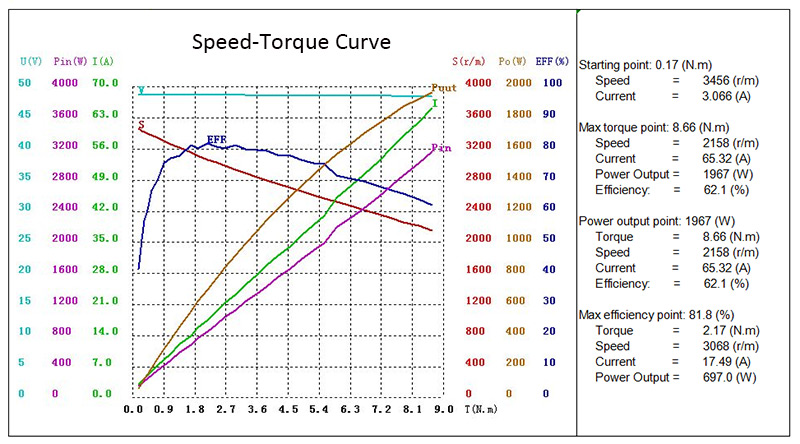

    48V BLDC MOTOR SPEED-TORQUE CURVE



    750w bldc motor speed torque curve

    TIPS:

    This 1 hp brushless DC motor has the same working principle and application characteristics as the DC motor, but not for their compositions. In addition to the motor itself, brushless DC motors also have more than a commutation circuit, and the motor itself is closely connected to the commutation circuit. Many low-power motors are integrated with the commutation circuit, therefore, judging from the appearance, brushless DC motors and DC motors are exactly the same.

    DC brushless motor itself is the mechatronic conversion part, which in addition to the motor armature and permanent magnet excitation, it also has a sensor. The motor itself is the core of the brushless DC motor, which not only relates to performance indicators, noise and vibration, reliability and service life, but also involves manufacturing costs and product costs. As applying the permanent magnetic field, the brushless DC motor gets rid of the traditional design and structure of the general DC motor, in order to meet the requirements of various applications market, and develop to be more copper saving and easier manufactured.

    Wiring ATO High Torque BLDC Motor With Controller

    In this video, we will show you how to connect a ATO 400W-15kW 24V/48V/72V/96V high torque brushless DC motor with the matching controller.

    How to Make Your BLDC Motor Forward and Reverse Control

    If you want your electric car to be more powerful, try using ATO high torque BLDC motor kit as the power unit. It is a good idea. Refer to the video step by step to operate, you can achieve the forward and reverse control of the brushless DC motor.



    1. Controller User Manual.pdf

    2. BLDC Motor Wiring Instruction.pdf

    3. ATO BLDC Motors Catalog.pdf

    ATO High Torque BLDC Motor Drawings & Price List

    Note:

    1. ATO highly recommends 48V motors because all models of 48V are in stock, the price is cheaper and the delivery time is shorter, only about 7 days.

    2. 24V/ 72V/ 96V motors are generally not in stock, need to be produced by the factory, which will cost more to start the production line and the delivery time will be longer, about 25 days.

    3. The prices in the table are just for your reference. If you want to get the latest quotation, please feel free to contact us.

    Model Motor Price Controller Price Rated Power Rated Speed Rated Torque Rotor Inertia Motor Weight
    (USD/Piece) (USD/Piece) (kW)  (RPM) (Nm) (Kgcm2) (Kg)
    80mm Series DC Brushless Motor
    ATO-80WDM01330 24/48/72/96V 24V: 458.24 395.52 0.41 3000 1.3 0.6 2.4
    48V: 305.49
    72/96V: 580.43
    ATO-80WDM02420 24/48/72/96V 24V: 564.53 395.52 0.5 2000 2.4 0.8 3
    48V: 376.35
    72/96V: 715.06
    ATO-80WDM02430 24/48/72/96V 24V: 529.16 395.52 0.75 3000 2.4 0.8 3
    48V: 352.77
    72/96V: 670.26
    ATO-80WDM03320 24/48/72/96V 24V: 597.68 395.52 0.69 2000 3.3 1.1 3
    48V: 398.45
    72/96V: 757.36
    ATO-80WDM03330 24/48/72/96V 24V: 639.27 395.52 1.04 3000 3.3 1.1 3
    48V: 426.18
    72/96V: 809.74
    110mm Series DC Brushless Motor
    ATO-110WDM02020 24/48/72/96V 24V: 687.38 395.52 0.4 2000 2 3.3 3.2
    48V: 458.25
    72/96V: 824.85
    ATO-110WDM02030 24/48/72/96V 24V: 745.11 395.52 0.6 3000 2 3.3 3.2
    48V: 496.74
    72/96V: 894.13
    ATO-110WDM04010 24/48/72/96V 24V: 779.86 395.52 0.4 1000 4 6.5 5.65
    48V: 519.93
    72/96V: 935.87
    ATO-110WDM04020 24/48/72/96V 24V: 788.57 395.52 0.8 2000 4 6.5 5.65
    48V: 525.71
    72/96V: 988.33
    ATO-110WDM04030 24/48/72/96V 24V: 798.63 653.05 1.3 3000 4 6.5 5.65
    48V: 532.42
    72/96V: 1001.95
    ATO-110WDM06010 24/48/72/96V 24V: 758.82 395.52 0.6 1000 6 10 6.6
    48V: 505.88
    72/96V: 956.69
    ATO-110WDM06020 24/48/72/96V 24V: 819.59 653.05 1.3 2000 6 10 6.6
    48V: 546.39
    72/96V: 1010.82
    ATO-110WDM06030 24/48/72/96V 24V: 995.94 653.05 1.9 3000 6 10 6.6
    48V: 553.28
    72/96V: 1051.23
    130mm Series DC Brushless Motor
    ATO-130WDM04010 24/48/72/96V 24V: 876.95 395.52 0.4 1000 4 10.4 6.7
    48V: 584.62
    72/96V: 1099.08
    ATO-130WDM04020 24/48/72/96V 24V: 910.67 395.52 0.8 2000 4 10.4 6.7
    48V: 607.13
    72/96V: 1104.98
    ATO-130WDM04030 24/48/72/96V 24V: 959.18 653.05 1.3 3000 4 10.4 6.7
    48V: 639.45
    72/96V: 1151.01
    ATO-130WDM06010 24/48/72/96V 24V: 987.65 395.52 0.6 1000 6 12.4 7.7
    48V: 658.43
    72/96V: 1185.17
    ATO-130WDM06020 24/48/72/96V 24V: 1012.23 653.05 1.3 2000 6 12.4 7.7
    48V: 674.82
    72/96V: 1147.19
    ATO-130WDM06030 24/48/72/96V 24V: 1047.72 653.05 1.9 3000 6 12.4 7.7
    48V: 698.48
    72/96V: 1208.34
    ATO-130WDM07710 24/48/72/96V 24V: 1060.07 395.52 0.8 1000 7.7 15.8 9.05
    48V: 706.71
    72/96V: 1257.94
    ATO-130WDM07720 24/48/72/96V 24V: 1093.21 653.05 1.6 2000 7.7 15.8 9.05
    48V: 738.65
    72/96V: 1292.64
    ATO-130WDM07730 48/72/96V 48V: 751.52 653.05 2.3 3000 7.7 15.8 9.05
    72/96V: 1337.71
    ATO-130WDM10010 24/48/72/96V 24V: 1161.55 653.05 1 1000 10 21.4 12
    48V: 784.83
    72/96V: 1396.89
    ATO-130WDM10020 24/48/72/96V 24V: 1224.36 653.05 2 2000 10 21.4 12
    48V: 816.24
    72/96V: 1371.28
    ATO-130WDM10030 48/72/96V 48V: 879.12 898.21 3.1 3000 10 21.4 12
    72/96V: 1450.55
    ATO-130WDM15010 24/48/72/96V 24V:1311.88 653.05 1.6 1000 15 32.4 12
    48V: 936.47
    72/96V: 1498.35
    ATO-130WDM15020 48/72/96V 48V: 1086.36 898.21 3.1 2000 15 32.4 12
    72/96V: 1738.17
    ATO-130WDM15030 48/72/96V 48V: 1127.54 1119.07 4.7 3000 15 32.4 12
    72/96V: 1804.64
    180mm Series DC Brushless Motor
    ATO-180WDM12010 48/72/96V 48V: 1246.31 653.05 1.3 1000 12 32.6  18.5
    72/96V: 1994.09
    ATO-180WDM12020 48/72/96V 48V: 1323.69 653.05 2.5 2000 12 32.6 18.5
    72/96V: 2117.91
    ATO-180WDM12030 48/72/96V 48V: 1398.84 898.21 3.8 3000 12 38 18.5
    72/96V: 2238.14
    ATO-180WDM16010 48/72/96V 48V: 1555.69 653.05 1.7 1000 16 55 18.6
    72/96V: 2411.32
    ATO-180WDM16020 48/72/96V 48V: 1625.36 898.21 3.4 2000 16 55 18.6
    72/96V: 2568.07
    ATO-180WDM16030 48/72/96V 48V: 1745.93 1119.07 5 3000 16 55 18.6
    72/96V: 2618.89
    ATO-180WDM25010 48/72/96V 48V: 2012.54 653.05 2.6 1000 25 55 26
    72/96V: 3179.81
    ATO-180WDM25020 48/72/96V 48V: 2274.19 1119.07 5.2 2000 25  93 26
    72/96V: 3411.26
    ATO-180WDM25030 48/72/96V 48V: 2448.58 1531.99 7.9 3000 25  93 26
    72/96V: 3672.87
    ATO-180WDM36010 48/72/96V 48V: 2644.28 898.21 3.8 1000 36 148 30
    72/96V: 3966.42
    ATO-180WDM36020 48/72/96V 48V: 2832.56 1119.07 7.5 2000 36 148 30
    72/96V: 4248.84
    ATO-180WDM36030 72/96V 72/96V: 4334.69 1885.15 11.3 3000 36 148 30
    ATO-180WDM50010 48/72/96V 48V: 3284.58 1119.07 5.2 1000 50 165 38
    72/96V: 4556.41
    ATO-180WDM50020 48/72/96V 48V: 4344.12 1531.99 10.8 2000 50 165 38
    72/96V: 5994.72
    ATO-180WDM50030 96V 96V: 6204.65 2261.84 15.7 3000 50 165 38
