    1/2 hp (400W) 24/48/72V 2000rpm Brushless DC Motor

    5 out of 5 based on 1 reviews | Write a review
    $458.25
    Affordable price brushless dc motor features with 2000 rpm low speed and 2Nm hold torque, 110mm square flange size, 400W rated power works at 24V/48V/72V/96V supply voltage, low noise, low vibration and low moment of inertia. IP65 protection grade, can be subjected to moist or humid environments.
    SKU: ATO-BLDC-400R2
    *
    *
    *
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 15-30 days

    PRODUCT DESCRIPTION

    1/2 hp (400 watt) brushless dc motor, 2000 rpm low speed BLDC motor, with good torque characteristics, small size and light weight, high power density and very long service life, perfect solution for automatic machinery, medical institutions, electronic equiment etc. Matched controller and gearbox are available for selection as your needs.

    1/2 HP (400W) BLDC MOTOR SPECIFICATION

    Model ATO-110WDM02020 (Click it to see more motor specs)
    Matched Controller Model ATOTH-G (Click it to see more controller specs)
    Square Flange Size 110 mm
    Phase 3 phase
    Number of Pole 4 pairs of poles (8 poles)
    Rated Voltage 24V DC 48V DC 72V DC 96V DC
    Rated Current 21.8 A 10.9 A 7.3 A 5.5 A
    Rated Power 400 W
    Maximum Power 1.3 kW
    Holding Torque 2 Nm
    Peak Torque 6 Nm
    Rated Speed 2000 rpm
    Maximum Speed 2400 rpm
    Electric Potential 10 V/Krpm
    Brake Apparatus Voltage 24V DC, (If 24V voltage is not connected, the motor brake.)
    Motor Lead Length by Default 30 cm, If buy a kit (motor+controller), extra 1 meter of wire shall be provided.
    Warranty Time 12 months
    Certificate CE, ROHs, ISO/TS16949
    Insulation Rank F
    Protection Rank IP65
    Temperature -20~55℃
    Humidity <90%RH (no dewing)
    Motor Weight 3.2 kg
    NOTE: Tell us your application needs, we can customize the BLDC motor to meet your precise power, speed, voltage and current requirements.

    BLDC MOTOR LINE DEFINITION

    Power Wire Power Line Color Red Yellow Blue
    Motor Winding U V W
    Feedback Wire Hall Line Color Orange and Black Orange Yellow Blue Green
    Hall Signal Definition 5V 0V Hall A Hall B Hall C
    Plug serial number 1 2 3 4 5

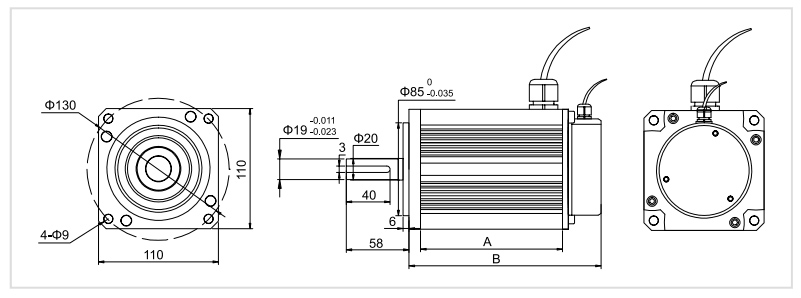

    24V/48V/72V/96V BLDC MOTOR DIMENSION (Unit=mm)

    400 watt 2000rpm bldc motor size

     MOTOR AND HAll RELATIONSHIP

    BLDC motor and hall relationship

    TIPS: MAINTENANCE OF BRUSHLESS DC MOTOR

    1. Before disassembling, blow the motor surface dust with the compressed air and wipe the surface dirt thoroughly.
    2. Select the place for disassembling the motor and clean up the site environment.
    3. Be familiar with the motor structure and maintenance technical requirements.
    4. Prepare the necessary tools (including special tools) and equipment for dissembling.
    5. In order to further understand the motor running defects, do a check test before disassembling the motor. To this end, run the motor with load, and examine the various parts of the motor in detail, such as temperature, sound, vibration and so on, and test voltage, current, speed, etc., and then disconnect the load, do a no-load test alone, test the load current and no-load loss, make a record.
    6. Cut off the power, remove the motor external wiring, make a record.
    7. Use the appropriate voltage megohm meter to test motor insulation resistance. In order to be compared with the insulation resistance measured in the last inspection to determine the trend of motor insulation and insulation, insulation resistance measured at different temperatures should be converted to the same temperature, the general conversion to 75 ℃.
    8. The test absorption ratio is K. When the absorption ratio is greater than 1.33, indicating that the motor has not damp or moisture level is not serious. In order to compare with the previous data, the same absorption ratio measured at any temperature should be converted to the same temperature.

    Wiring ATO High Torque BLDC Motor With Controller

    In this video, we will show you how to connect a ATO 400W-15kW 24V/48V/72V/96V high torque brushless DC motor with the matching controller.

    How to Make Your BLDC Motor Forward and Reverse Control

    If you want your electric car to be more powerful, try using ATO high torque BLDC motor kit as the power unit. It is a good idea. Refer to the video step by step to operate, you can achieve the forward and reverse control of the brushless DC motor.



    1. Controller User Manual.pdf

    2. BLDC Motor Wiring Instruction.pdf

    3. ATO BLDC Motors Catalog.pdf

    ATO High Torque BLDC Motor Drawings & Price List

    Note:

    1. ATO highly recommends 48V motors because all models of 48V are in stock, the price is cheaper and the delivery time is shorter, only about 7 days.

    2. 24V/ 72V/ 96V motors are generally not in stock, need to be produced by the factory, which will cost more to start the production line and the delivery time will be longer, about 25 days.

    3. The prices in the table are just for your reference. If you want to get the latest quotation, please feel free to contact us.

    Model Motor Price Controller Price Rated Power Rated Speed Rated Torque Rotor Inertia Motor Weight
    (USD/Piece) (USD/Piece) (kW)  (RPM) (Nm) (Kgcm2) (Kg)
    80mm Series DC Brushless Motor
    ATO-80WDM01330 24/48/72/96V 24V: 458.24 395.52 0.41 3000 1.3 0.6 2.4
    48V: 305.49
    72/96V: 580.43
    ATO-80WDM02420 24/48/72/96V 24V: 564.53 395.52 0.5 2000 2.4 0.8 3
    48V: 376.35
    72/96V: 715.06
    ATO-80WDM02430 24/48/72/96V 24V: 529.16 395.52 0.75 3000 2.4 0.8 3
    48V: 352.77
    72/96V: 670.26
    ATO-80WDM03320 24/48/72/96V 24V: 597.68 395.52 0.69 2000 3.3 1.1 3
    48V: 398.45
    72/96V: 757.36
    ATO-80WDM03330 24/48/72/96V 24V: 639.27 395.52 1.04 3000 3.3 1.1 3
    48V: 426.18
    72/96V: 809.74
    110mm Series DC Brushless Motor
    ATO-110WDM02020 24/48/72/96V 24V: 687.38 395.52 0.4 2000 2 3.3 3.2
    48V: 458.25
    72/96V: 824.85
    ATO-110WDM02030 24/48/72/96V 24V: 745.11 395.52 0.6 3000 2 3.3 3.2
    48V: 496.74
    72/96V: 894.13
    ATO-110WDM04010 24/48/72/96V 24V: 779.86 395.52 0.4 1000 4 6.5 5.65
    48V: 519.93
    72/96V: 935.87
    ATO-110WDM04020 24/48/72/96V 24V: 788.57 395.52 0.8 2000 4 6.5 5.65
    48V: 525.71
    72/96V: 988.33
    ATO-110WDM04030 24/48/72/96V 24V: 798.63 653.05 1.3 3000 4 6.5 5.65
    48V: 532.42
    72/96V: 1001.95
    ATO-110WDM06010 24/48/72/96V 24V: 758.82 395.52 0.6 1000 6 10 6.6
    48V: 505.88
    72/96V: 956.69
    ATO-110WDM06020 24/48/72/96V 24V: 819.59 653.05 1.3 2000 6 10 6.6
    48V: 546.39
    72/96V: 1010.82
    ATO-110WDM06030 24/48/72/96V 24V: 995.94 653.05 1.9 3000 6 10 6.6
    48V: 553.28
    72/96V: 1051.23
    130mm Series DC Brushless Motor
    ATO-130WDM04010 24/48/72/96V 24V: 876.95 395.52 0.4 1000 4 10.4 6.7
    48V: 584.62
    72/96V: 1099.08
    ATO-130WDM04020 24/48/72/96V 24V: 910.67 395.52 0.8 2000 4 10.4 6.7
    48V: 607.13
    72/96V: 1104.98
    ATO-130WDM04030 24/48/72/96V 24V: 959.18 653.05 1.3 3000 4 10.4 6.7
    48V: 639.45
    72/96V: 1151.01
    ATO-130WDM06010 24/48/72/96V 24V: 987.65 395.52 0.6 1000 6 12.4 7.7
    48V: 658.43
    72/96V: 1185.17
    ATO-130WDM06020 24/48/72/96V 24V: 1012.23 653.05 1.3 2000 6 12.4 7.7
    48V: 674.82
    72/96V: 1147.19
    ATO-130WDM06030 24/48/72/96V 24V: 1047.72 653.05 1.9 3000 6 12.4 7.7
    48V: 698.48
    72/96V: 1208.34
    ATO-130WDM07710 24/48/72/96V 24V: 1060.07 395.52 0.8 1000 7.7 15.8 9.05
    48V: 706.71
    72/96V: 1257.94
    ATO-130WDM07720 24/48/72/96V 24V: 1093.21 653.05 1.6 2000 7.7 15.8 9.05
    48V: 738.65
    72/96V: 1292.64
    ATO-130WDM07730 48/72/96V 48V: 751.52 653.05 2.3 3000 7.7 15.8 9.05
    72/96V: 1337.71
    ATO-130WDM10010 24/48/72/96V 24V: 1161.55 653.05 1 1000 10 21.4 12
    48V: 784.83
    72/96V: 1396.89
    ATO-130WDM10020 24/48/72/96V 24V: 1224.36 653.05 2 2000 10 21.4 12
    48V: 816.24
    72/96V: 1371.28
    ATO-130WDM10030 48/72/96V 48V: 879.12 898.21 3.1 3000 10 21.4 12
    72/96V: 1450.55
    ATO-130WDM15010 24/48/72/96V 24V:1311.88 653.05 1.6 1000 15 32.4 12
    48V: 936.47
    72/96V: 1498.35
    ATO-130WDM15020 48/72/96V 48V: 1086.36 898.21 3.1 2000 15 32.4 12
    72/96V: 1738.17
    ATO-130WDM15030 48/72/96V 48V: 1127.54 1119.07 4.7 3000 15 32.4 12
    72/96V: 1804.64
    180mm Series DC Brushless Motor
    ATO-180WDM12010 48/72/96V 48V: 1246.31 653.05 1.3 1000 12 32.6  18.5
    72/96V: 1994.09
    ATO-180WDM12020 48/72/96V 48V: 1323.69 653.05 2.5 2000 12 32.6 18.5
    72/96V: 2117.91
    ATO-180WDM12030 48/72/96V 48V: 1398.84 898.21 3.8 3000 12 38 18.5
    72/96V: 2238.14
    ATO-180WDM16010 48/72/96V 48V: 1555.69 653.05 1.7 1000 16 55 18.6
    72/96V: 2411.32
    ATO-180WDM16020 48/72/96V 48V: 1625.36 898.21 3.4 2000 16 55 18.6
    72/96V: 2568.07
    ATO-180WDM16030 48/72/96V 48V: 1745.93 1119.07 5 3000 16 55 18.6
    72/96V: 2618.89
    ATO-180WDM25010 48/72/96V 48V: 2012.54 653.05 2.6 1000 25 55 26
    72/96V: 3179.81
    ATO-180WDM25020 48/72/96V 48V: 2274.19 1119.07 5.2 2000 25  93 26
    72/96V: 3411.26
    ATO-180WDM25030 48/72/96V 48V: 2448.58 1531.99 7.9 3000 25  93 26
    72/96V: 3672.87
    ATO-180WDM36010 48/72/96V 48V: 2644.28 898.21 3.8 1000 36 148 30
    72/96V: 3966.42
    ATO-180WDM36020 48/72/96V 48V: 2832.56 1119.07 7.5 2000 36 148 30
    72/96V: 4248.84
    ATO-180WDM36030 72/96V 72/96V: 4334.69 1885.15 11.3 3000 36 148 30
    ATO-180WDM50010 48/72/96V 48V: 3284.58 1119.07 5.2 1000 50 165 38
    72/96V: 4556.41
    ATO-180WDM50020 48/72/96V 48V: 4344.12 1531.99 10.8 2000 50 165 38
    72/96V: 5994.72
    ATO-180WDM50030 96V 96V: 6204.65 2261.84 15.7 3000 50 165 38
