    2 kW Brushless DC Motor, 24V/48V/72V, 10 Nm

    5 out of 5 based on 8 reviews | Write a review
    $816.24
    High torque 3 phase brushless DC motor for sale. 2 kW BLDC electric motor available with 24V/ 48V/ 72V/ 96 DC voltage, 2000 rpm speed, IP65 protection, 10 Nm holding torque, peak torque to 30 Nm. Brushless DC motor controller, gearboxs or other parts are provided and customized.
    SKU: ATO-BLDC-2000R2
    *
    *
    *
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    2000W 48 volt BLDC motor with 10 Nm high rated torque at low price, 2000 rpm, 24 volt, 72 volt, 96 volt are optional. 3 phase brushless DC motor kit (electric motor, bldc controller, planetary gearbox) best for new energy electric car, renewable energy systems, industrial equipment which require high torque density and compact occasions. Usually, ATO recommends buying a kit of 2kW BLDC motor.

    FEATURES

    • High performance and low consumption.
      2kW brushless DC motor is three phase electric motor, which especially suited for application requiring higher efficiency and power density.
    • Wide application range and good control effect.
      BLDC motor works with a matching controller (ATOTH-G) may achieve simple to complex control, turn from CW to CCW, and meet various communication requirements (RS232, RS485, CAN, etc.). BLDC controller can be controlled through 0-5VDC analog signal to adjust the speed.
    • Wide control speed torque range.
      Brushless DC motor works with a gearbox (choose inline gearbox or right angle gearbox with gear ratio from 3:1 to 200:1) effectively reduce the motor's speed and moment of inertia to increase torque in your application, because the gearbox can control the start/stop and change speed in time.
    • Low noise and smooth operation.
      Brushless DC motor has no brushes, no sparks will be generated during operation, which greatly reduces friction.
    • Good protection performance and continuous duty (24/7).
      2000W BLDC motor kit adopts a new type of sealing device, which has good protection performance and strong adaptability to the environment, and works continuously in harsh environments such as corrosion and humidity.

    SPECIFICATION

    Model ATO-130WDM10020 (Click it to see more motor specs)
    Matched Controller Model ATOTH-G (Click it to see more controller specs)
    Square Flange Size 130 mm
    Phase 3 phase
    Number of Pole 4 pairs of poles (8 poles)
    Rated Voltage 24V DC 48V DC 72V DC 96V DC
    Rated Current 102.7A 51.3A 34.2A 25.7A
    Rated Power 2000 W
    Maximum Power 6.3 kW
    Holding Torque 10 Nm
    Peak Torque 30 Nm
    Rated Speed 2000 rpm
    Maximum Speed 2400 rpm
    Efficiency 85%
    Rotor Inertia 21.4 kgcm2
    Electric Potential 10 V/K rpm 20 V/K rpm 30 V/K rpm 40 V/K rpm
    Brake Apparatus Voltage 24V DC, (If 24V voltage is not connected, the motor brake)
    Brake length: 40-50mm
    Motor Lead Length by Default 30 cm, if buy a kit (motor+controller), extra 1 meter of wire shall be provided.
    Warranty Time 12 months
    Certificate CE, ROHs, ISO/TS16949
    Insulation Rank F
    Protection Rank IP65
    Temperature -20~55℃
    Humidity <90%RH (no dewing)
    Motor Weight 12 kg
    What Parameters of ATO BLDC motor Can Be Customized?
    Power Yes
    Voltage Yes
    Speed Yes
    Shaft Yes
    Motor Length Yes
    Motor Lead Yes

    BLDC MOTOR LINE DEFINITION

    1. For Motor Power Wire

    Power Wire Power Line Color Red Yellow Blue
    Motor Winding U V W

    2. For Feedback Wire

    Feedback Wire Hall Line Color Orange and Black Orange Yellow Blue Green
    Hall Signal Definition 5V 0V Hall A Hall B Hall C
    Plug Serial Number 1 2 3 4 5

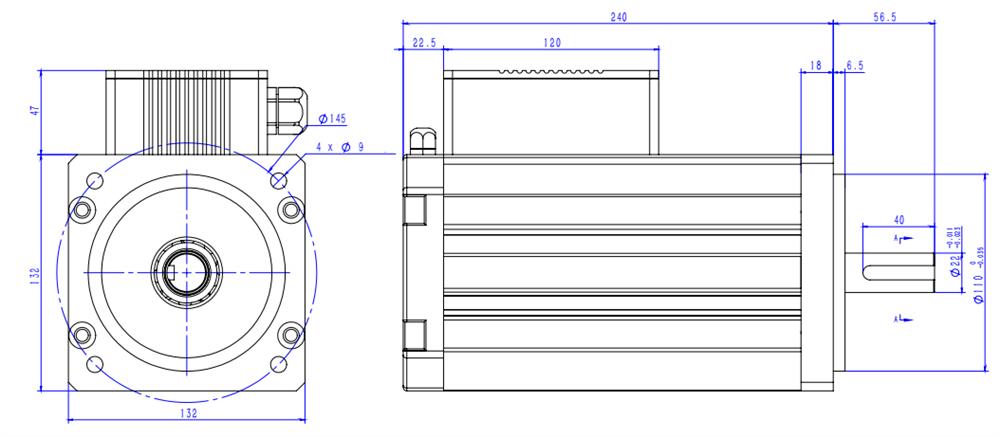

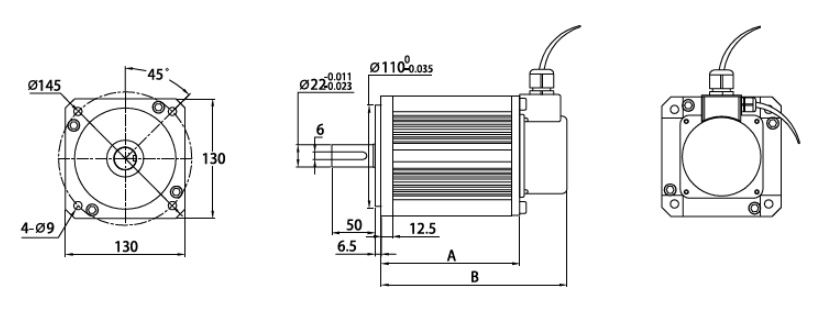

    MOTOR DIMENSION (Unit=mm)

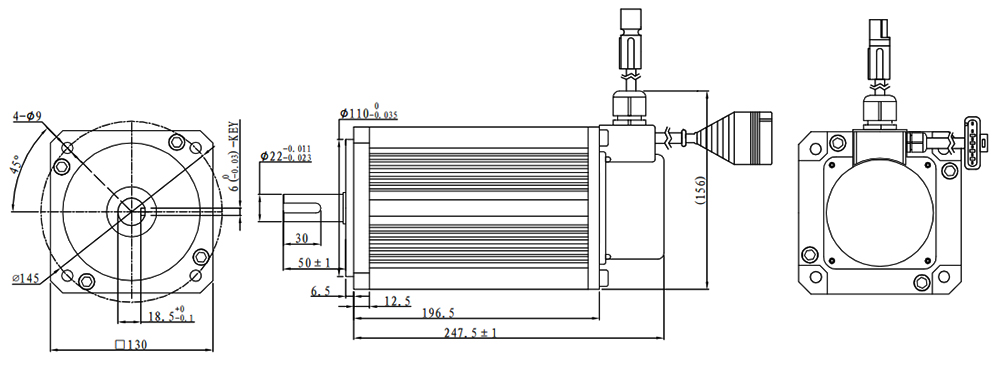

    2000 watt 2000rpm bldc motor size

    MOTOR AND HAll RELATIONSHIP

    BLDC motor and hall relationship

    TIPS: Brushless DC Motor vs. Stepper Motor

    The brushless DC motor is composed of a motor body and a brushless motor driver. It is a typical mechatronics product. Because the brushless DC motor runs in a self-control mode, it will not add a start winding to the rotor like a synchronous motor started under heavy load under variable frequency speed regulation, nor will it cause oscillation and loss of step when the load changes suddenly. The permanent magnets of small and medium-capacity brushless DC motors now mostly use high magnetic energy level rare earth neodymium iron boron (Nd-Fe-B) materials.

    stepper motor is a motor that converts electrical pulse signals into corresponding angular or linear displacements. Every time a pulse signal is input, the rotor rotates an angle or moves forward. The output angular displacement or linear displacement is proportional to the number of input pulses, and the speed is proportional to the pulse frequency. Therefore, the stepper motor can be called the pulse motor.

    Wiring ATO High Torque BLDC Motor With Controller

    In this video, we will show you how to connect a ATO 400W-15kW 24V/48V/72V/96V high torque brushless DC motor with the matching controller.

    How to Make Your BLDC Motor Forward and Reverse Control

    If you want your electric car to be more powerful, try using ATO high torque BLDC motor kit as the power unit. It is a good idea. Refer to the video step by step to operate, you can achieve the forward and reverse control of the brushless DC motor.



    1. Controller User Manual.pdf

    2. BLDC Motor Wiring Instruction.pdf

    3. ATO BLDC Motors Catalog.pdf

    ATO High Torque BLDC Motor Drawings & Price List

    Note:

    1. ATO highly recommends 48V motors because all models of 48V are in stock, the price is cheaper and the delivery time is shorter, only about 7 days.

    2. 24V/ 72V/ 96V motors are generally not in stock, need to be produced by the factory, which will cost more to start the production line and the delivery time will be longer, about 25 days.

    3. The prices in the table are just for your reference. If you want to get the latest quotation, please feel free to contact us.

    Model Motor Price Controller Price Rated Power Rated Speed Rated Torque Rotor Inertia Motor Weight
    (USD/Piece) (USD/Piece) (kW)  (RPM) (Nm) (Kgcm2) (Kg)
    80mm Series DC Brushless Motor
    ATO-80WDM01330 24/48/72/96V 24V: 458.24 395.52 0.41 3000 1.3 0.6 2.4
    48V: 305.49
    72/96V: 580.43
    ATO-80WDM02420 24/48/72/96V 24V: 564.53 395.52 0.5 2000 2.4 0.8 3
    48V: 376.35
    72/96V: 715.06
    ATO-80WDM02430 24/48/72/96V 24V: 529.16 395.52 0.75 3000 2.4 0.8 3
    48V: 352.77
    72/96V: 670.26
    ATO-80WDM03320 24/48/72/96V 24V: 597.68 395.52 0.69 2000 3.3 1.1 3
    48V: 398.45
    72/96V: 757.36
    ATO-80WDM03330 24/48/72/96V 24V: 639.27 395.52 1.04 3000 3.3 1.1 3
    48V: 426.18
    72/96V: 809.74
    110mm Series DC Brushless Motor
    ATO-110WDM02020 24/48/72/96V 24V: 687.38 395.52 0.4 2000 2 3.3 3.2
    48V: 458.25
    72/96V: 824.85
    ATO-110WDM02030 24/48/72/96V 24V: 745.11 395.52 0.6 3000 2 3.3 3.2
    48V: 496.74
    72/96V: 894.13
    ATO-110WDM04010 24/48/72/96V 24V: 779.86 395.52 0.4 1000 4 6.5 5.65
    48V: 519.93
    72/96V: 935.87
    ATO-110WDM04020 24/48/72/96V 24V: 788.57 395.52 0.8 2000 4 6.5 5.65
    48V: 525.71
    72/96V: 988.33
    ATO-110WDM04030 24/48/72/96V 24V: 798.63 653.05 1.3 3000 4 6.5 5.65
    48V: 532.42
    72/96V: 1001.95
    ATO-110WDM06010 24/48/72/96V 24V: 758.82 395.52 0.6 1000 6 10 6.6
    48V: 505.88
    72/96V: 956.69
    ATO-110WDM06020 24/48/72/96V 24V: 819.59 653.05 1.3 2000 6 10 6.6
    48V: 546.39
    72/96V: 1010.82
    ATO-110WDM06030 24/48/72/96V 24V: 995.94 653.05 1.9 3000 6 10 6.6
    48V: 553.28
    72/96V: 1051.23
    130mm Series DC Brushless Motor
    ATO-130WDM04010 24/48/72/96V 24V: 876.95 395.52 0.4 1000 4 10.4 6.7
    48V: 584.62
    72/96V: 1099.08
    ATO-130WDM04020 24/48/72/96V 24V: 910.67 395.52 0.8 2000 4 10.4 6.7
    48V: 607.13
    72/96V: 1104.98
    ATO-130WDM04030 24/48/72/96V 24V: 959.18 653.05 1.3 3000 4 10.4 6.7
    48V: 639.45
    72/96V: 1151.01
    ATO-130WDM06010 24/48/72/96V 24V: 987.65 395.52 0.6 1000 6 12.4 7.7
    48V: 658.43
    72/96V: 1185.17
    ATO-130WDM06020 24/48/72/96V 24V: 1012.23 653.05 1.3 2000 6 12.4 7.7
    48V: 674.82
    72/96V: 1147.19
    ATO-130WDM06030 24/48/72/96V 24V: 1047.72 653.05 1.9 3000 6 12.4 7.7
    48V: 698.48
    72/96V: 1208.34
    ATO-130WDM07710 24/48/72/96V 24V: 1060.07 395.52 0.8 1000 7.7 15.8 9.05
    48V: 706.71
    72/96V: 1257.94
    ATO-130WDM07720 24/48/72/96V 24V: 1093.21 653.05 1.6 2000 7.7 15.8 9.05
    48V: 738.65
    72/96V: 1292.64
    ATO-130WDM07730 48/72/96V 48V: 751.52 653.05 2.3 3000 7.7 15.8 9.05
    72/96V: 1337.71
    ATO-130WDM10010 24/48/72/96V 24V: 1161.55 653.05 1 1000 10 21.4 12
    48V: 784.83
    72/96V: 1396.89
    ATO-130WDM10020 24/48/72/96V 24V: 1224.36 653.05 2 2000 10 21.4 12
    48V: 816.24
    72/96V: 1371.28
    ATO-130WDM10030 48/72/96V 48V: 879.12 898.21 3.1 3000 10 21.4 12
    72/96V: 1450.55
    ATO-130WDM15010 24/48/72/96V 24V:1311.88 653.05 1.6 1000 15 32.4 12
    48V: 936.47
    72/96V: 1498.35
    ATO-130WDM15020 48/72/96V 48V: 1086.36 898.21 3.1 2000 15 32.4 12
    72/96V: 1738.17
    ATO-130WDM15030 48/72/96V 48V: 1127.54 1119.07 4.7 3000 15 32.4 12
    72/96V: 1804.64
    180mm Series DC Brushless Motor
    ATO-180WDM12010 48/72/96V 48V: 1246.31 653.05 1.3 1000 12 32.6  18.5
    72/96V: 1994.09
    ATO-180WDM12020 48/72/96V 48V: 1323.69 653.05 2.5 2000 12 32.6 18.5
    72/96V: 2117.91
    ATO-180WDM12030 48/72/96V 48V: 1398.84 898.21 3.8 3000 12 38 18.5
    72/96V: 2238.14
    ATO-180WDM16010 48/72/96V 48V: 1555.69 653.05 1.7 1000 16 55 18.6
    72/96V: 2411.32
    ATO-180WDM16020 48/72/96V 48V: 1625.36 898.21 3.4 2000 16 55 18.6
    72/96V: 2568.07
    ATO-180WDM16030 48/72/96V 48V: 1745.93 1119.07 5 3000 16 55 18.6
    72/96V: 2618.89
    ATO-180WDM25010 48/72/96V 48V: 2012.54 653.05 2.6 1000 25 55 26
    72/96V: 3179.81
    ATO-180WDM25020 48/72/96V 48V: 2274.19 1119.07 5.2 2000 25  93 26
    72/96V: 3411.26
    ATO-180WDM25030 48/72/96V 48V: 2448.58 1531.99 7.9 3000 25  93 26
    72/96V: 3672.87
    ATO-180WDM36010 48/72/96V 48V: 2644.28 898.21 3.8 1000 36 148 30
    72/96V: 3966.42
    ATO-180WDM36020 48/72/96V 48V: 2832.56 1119.07 7.5 2000 36 148 30
    72/96V: 4248.84
    ATO-180WDM36030 72/96V 72/96V: 4334.69 1885.15 11.3 3000 36 148 30
    ATO-180WDM50010 48/72/96V 48V: 3284.58 1119.07 5.2 1000 50 165 38
    72/96V: 4556.41
    ATO-180WDM50020 48/72/96V 48V: 4344.12 1531.99 10.8 2000 50 165 38
    72/96V: 5994.72
    ATO-180WDM50030 96V 96V: 6204.65 2261.84 15.7 3000 50 165 38
    Existing reviews of 2 kW Brushless DC Motor, 24V/48V/72V, 10 Nm
    I finally bought this 2kW 24V BLDC motor and the controller ATO recommended, which have been perfect for my project.
    After purchasing 3 other motors, I finally bought this 2kW 24V BLDC motor and the controller ATO recommended, which have been perfect for my project. I needed something with high torque at lower RPMs, this motor did the job.
    From: Vicky | Date: 04/07/2018
    Was this review helpful? Yes No (0/0)
    I want your product
    I have two questions about the product and need you answer.
    Please give me your contact number or email soon.

    Regards,
    Christine
    13390647550
    From: Christine | Date: 20/09/2018
    Was this review helpful? Yes No (0/0)
    ATO Responded
    https://www.ato.com/contactus.
    sales@ato.com
    +1 800-585-1519
    Please contact ATO for your question.
    Wondering about the ability to customize the BLDC motors
    We have been ordering BLDC motors from you and they seem to be working well. I was wondering about the ability to customize the motors, these are specifically 2kW 48V motors (Lead lengths? Shaft connection? Bearing Specification?)
    From: George Dronick | Date: 10/07/2019
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, we can customize the motor based on your specs. Email us with asketch or specs required, so can quote.
    I want to know mounting standards for Brusless DC motor. In your website i didnt find it.
    Please let  me know which mounting standard is getting followed for ATO part#  ATO-130WDM15010-24. For my project I need to select one motor adaptor so I need to know the mounting standard. Please let me know.
    From: Arkaprava | Date: 11/10/2019
    Was this review helpful? Yes No (0/0)
    ATO Responded
    The installation standard of the brushless dc motor is similar to the installation of the servo motor, and there are no special requirements. The motor should be fixed horizontally and there should be no shaking after the motor is running.
    Questions about 2kW brushless DC motor
    1. Does the 48V version offer rpm and torque values same as other viltages for 2.0 kW BLDC motors?
    2. What power supply is required for the matched controller?
    From: Walden | Date: 07/05/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    1. Yes.
    2. Controller power supply voltage will be the same like motor.
    BLDC motor driver matched with high speed motor
    Can you please provide the matching BLDC motor driver for model ATOWS4255-50 high speed motor?
    From: Alfredo | Date: 06/06/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, we can provide.
    Related parameters of 2kW brushless DC motor
    What is the starting current and rated current for your 2kW, 48VDC bldc motor?
    From: Debd | Date: 18/08/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Motor starting power is 2 times of rated power (4kW). And Motor minimum rated input current is: 51.3A.
    My questions about 2kW brushless DC motor
    Could you give me the peak output torque for your 2 kW 48 VDC brushless dc motor with 2000 rpm 10 Nm rating driving through your 200:1 planetary gearbox. I assume that it is something less than 2000 Nm?
    From: Chreyl | Date: 13/10/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, it's less than 2000 Nm. The peak rated torque output from (motor + 200 gearbox) will be 10Nm * 200 * 0.9 = approx 1800Nm.
