    3 hp (2.3 kW) 48V/72V/96V Brushless DC Motor

    $617.14
    3 hp (2.3 kW) brushless DC motor with a rated speed of 3000 rpm and a rated voltage of 24V/48V/72V/96V, 130mm flange size, IP 65 rating with shaft seal, brushless design for long periods of operation with best price.
    SKU: ATO-BLDC-2300R3
    *
    *
    *
    *
    Free shipping
    Delivery date: 15-20 days

    3 hp BLDC motor with low noise, rated torque of 7.7 Nm, peak torque to 23 Nm, works on 24V/48V/72V/96V DC voltage, providing 3600rpm max speed. It is widely use in automatic machinery, medical institutions, electronic equiment etc..

    3 HP (2.3 kW) BLDC MOTOR FEATURES

    • 130 mm square flange size, making it easy to install.
    • Brushless design for long life.
    • Excellent speed stability.
    • Hall signals for velocity feedback.
    • Cost-effective replacement for brush DC motors.

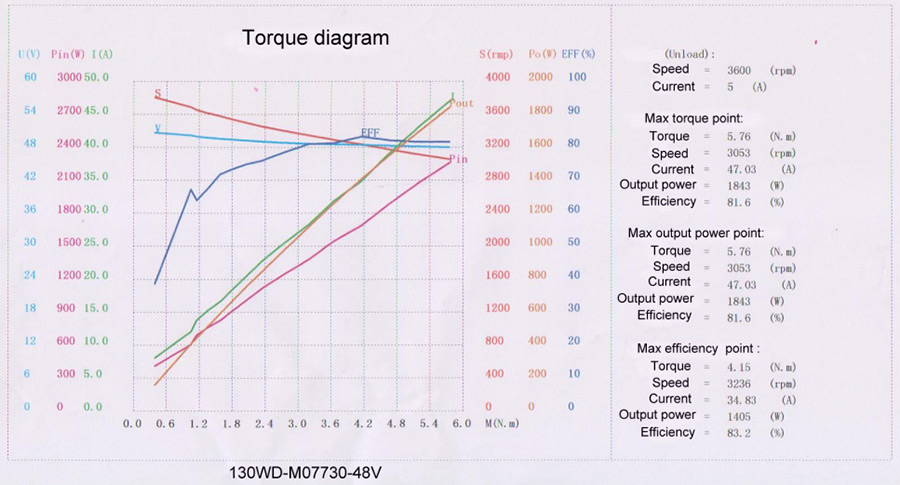

    3HP (2.3 kW) BLDC MOTOR SPECIFICATION

    Model ATO-130WDM07730 (Click it to see more motor specs)
    Matched Controller Model ATOTH-G (Click it to see more controller specs)
    Square Flange Size 130 mm
    Motor Weight 9.05 kg
    Rated Voltage 48V DC 72V DC 96V DC
    Rated Current 59.3 A 39.5 A 29.6 A
    Rated Power 3 hp (2.3kW)
    Maximum Power 7.3 kW
    Holding Torque 7.7 Nm
    Peak Torque 23 Nm
    Rated Speed 3000 rpm
    Maximum Speed 3600 rpm
    Electric Potential 20 V/Krpm
    Brake Apparatus Voltage 24V DC, (If 24V voltage is not connected, the motor brake)
    Warranty Time 12 months
    Certificate CE, ROHs, ISO/TS16949
    Insulation Rank F
    Protection Rank IP 65
    Temperature -20~55℃
    Humidity <90%RH (no dewing)

    NOTE: Tell us your application needs, we can customize your BLDC motor to meet your precise power, speed, voltage and current requirements.

    BLDC MOTOR LINE DEFINITION

    Power Wire Power Line Color Red Yellow Blue
    Motor Winding U V W
    Feedback Wire Hall Line Color Orange and Black Orange Yellow Blue Green
    Hall Signal Definition 5V 0V Hall A Hall B Hall C
    Plug serial number 1 2 3 4 5

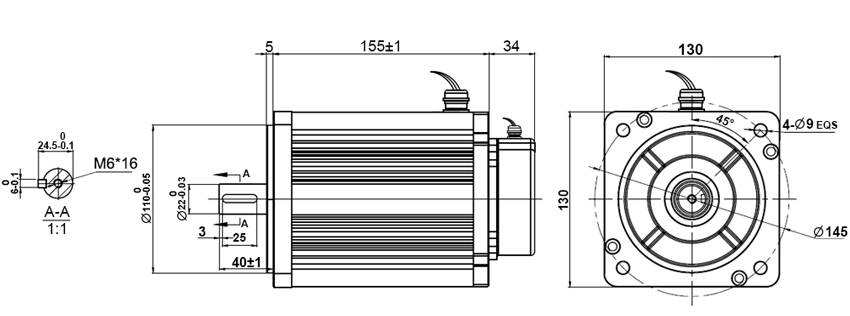

    3HP 48V/72V/96V BLDC MOTOR DIMENSION (Unit=mm)

    130 mm bldc motor dimension

    A=150.5mm, B=201.5mm

    MOTOR AND HAll RELATIONSHIP

    BLDC motor and hall relationship

    TIPS: ADVANTAGES OF ATO BRUSHLESS DC MOTOR

    1. Brushless DC motors have the characteristics of brush motors, and the drive is also a frequency change device, so it is also known as DC inverter; the operating efficiency, low speed torque and speed accuracy of brushless DC motors are better than any control technology inverters, because the brushless DC motor is controlled by the operation, it will not be like heavy-duty synchronous motor under the frequency control speed as the rotor plus start winding, it will not produce oscillation when the load mutation and out of step.
    2. The permanent magnets of brushless DC motors are now mostly applied with rare neodymium iron boron materials that have high energy. Therefore, the rare permanent magnet brushless motors are reduced by one frame size comparing to the same capacity three-phase asynchronous motors.
    3. Brushless DC motors have low voltage, strong torque overload capacity, large start torque, and small start current and so on.
    4. The speed range is wide, the motor can run in speed range from low to medium to high.
    5. The motor does not have mechanical commutator and is applied with fully enclosed structure to prevent dust from entering the motor, which proves to be highly reliable.
    6. The motor control system is simpler than asynchronous motor.

    Wiring ATO High Torque BLDC Motor With Controller
    In this video, we will show you how to connect a ATO 400W-15kW 24V/48V/72V/96V high torque brushless DC motor with the matching controller.

    1. Controller User Manual.pdf

    2. BLDC Motor Wiring Instruction.pdf

    3ATO BLDC Motors Catalog.pdf

    Model Specs.pdf

    Model Motor Price
    (USD/pcs)
    Controller Price
    (USD/pcs)
    Rated Power
    (kW)
    Rated Speed
     (RPM)
    Motor Weight
    (Kg)
    A Dimension
    (mm)
    B Dimension
    (mm)
    80 Series DC Brushless Motor
    ATO-80WDM01330-24/48/72/96 269.08 395.52 0.4 3000 2.5 100 150
    ATO-80WDM02420-24/48/72/96 286.25 395.52 0.5 2000 3 120 170
    ATO-80WDM02430-24/48/72/96 322.77 395.52 0.75 3000 3 120 170
    ATO-80WDM03320-24/48/72/96  326.59  395.52  0.69 2000   3 155   205
    ATO-80WDM03330-24/48/72/96 343.65 395.52 1 3000 3.5 155 205
    110 Series DC Brushless Motor
    ATO-110WDM02020-24/48/72/96 288.15 395.52 0.4 2000 3.2 114.5 145.5
    ATO-110WDM02030-24/48/72/96 295.48 395.52 0.6 3000 3.2 114.5 145.5
    ATO-110WDM04010-24/48/72/96 301.52 395.52 0.4 1000 5.65 139.5 170.5
    ATO-110WDM04020-24/48/72/96 345.56 395.52 0.8 2000 5.65 169.5 199.5
    ATO-110WDM04030-24/48/72/96 404.36 395.52 1.3 3000 5.65 169.5 199.5
    ATO-110WDM06010-24/48/72/96 325.88 395.52 0.6 1000 6.6 169 200
    ATO-110WDM06020-24/48/72/96 476.22 395.52 1.3 2000 6.6 169 200
    ATO-110WDM06030-24/48/72/96 524.56 395.52 1.9 3000 6.6 169 200
    130 Series DC Brushless Motor
    ATO-130WDM04010-24/48/72/96 396.35 445.26 0.4 1000 6.7 126 177
    ATO-130WDM04020-24/48/72/96 419.63 445.26 0.8 2000 6.7 126 177
    ATO-130WDM04030-24/48/72/96 523.84 445.26 1.3 3000 6.7 126 177
    ATO-130WDM06010-24/48/72/96 683.15 445.26 0.6 1000 7.7 136 187
    ATO-130WDM06020-24/48/72/96 771.42 445.26 1.3 2000 7.7 136 187
    ATO-130WDM06030-24/48/72/96 796.51 489.23 1.9 3000 7.7 146 187
    ATO-130WDM07710-24/48/72/96 514.75 395.52 0.8 1000 9.05 150.5 201.5
    ATO-130WDM07720-24/48/72/96 696.47 489.23 1.6 2000 9.05 160.5 212.5
    ATO-130WDM07730-48/72/96 685.56 576.21 2.3 3000 9.05 150.5 201.5
    ATO-130WDM10010-24/48/72/96 653.48 588.47 1 1000 12 196.5 247.5
    ATO-130WDM10020-24/48/72/96 745.68 598.32 2 2000 12 196.5 247.5
    ATO-130WDM15010-24/48/72/96 719.23 588.47 1.6 1000 12 232 283
    ATO-130WDM10030-48/72/96 829.12 702.34 3.1 3000 12 196.5 247.5
    ATO-130WDM15020-48/72/96 814.78 633.54 3.1 2000 12 232 283
    ATO-130WDM15030-48/72/96 843.69 633.54 4.7 3000 12 232 283
    180 Series DC Brushless Motor
    ATO-180WDM12010-48/72/96 786.31 688.59 1.3 1000 18.5 205 255
    ATO-180WDM12020-48/72/96 821.14 688.59 2.5 2000 18.5 205 255
    ATO-180WDM12030-48/72/96 1298.84 714.56 3.8 3000 18.5 205 255
    ATO-180WDM16010-48/72/96 1055.69 688.59 1.7 1000 18.6 205 255
    ATO-180WDM16020-48/72/96 1225.36 688.59 3.4 2000 18.6 205 255
    ATO-180WDM16030-48/72/96 1345.93 1000.56 5 3000 18.6 205 255
    ATO-180WDM25010-48/72/96 1012.54 1000.56 2.6 1000 26 243 294
    ATO-180WDM25020-48/72/96 1374.19 1136.58 5.2 2000 26 243 273
    ATO-180WDM25030-48/72/96 2348.58 2458.46 7.9 3000 26 243 273
    ATO-180WDM36010-48/72/96 1566.47 1358.69 3.8 1000 30 298 349
    ATO-180WDM36020-48/72/96 2232.56 2458.46 7.5 2000 30 298 349
    ATO-180WDM50010-48/72/96 2045.23 1866.85 5.2 1000 38 315 366
    ATO-180WDM50020-48/72/96 2569.33 2458.46 10.8 2000 38 315 366
    ATO-180WDM36030-72/96 2648.36 2458.46 11.3 3000 30 298 349
    ATO-180WDM50030-96 2824.62 2515.48 15.7 3000 38 315 366
