    500W 24V/48V 2000rpm Brushless DC Motor
    Picture of 500W 24V/48V 2000rpm Brushless DC Motor
    Picture of 500W 24V/48V 2000rpm Brushless DC Motor
    Picture of 500W 24V/48V 2000rpm Brushless DC Motor

    500W 24V/48V 2000rpm Brushless DC Motor

    5 out of 5 based on 1 reviews | Write a review
    $376.35
    500W BLDC motor, brushless design for long life, the peak power of the motor can reach 1.5kW. Operates with 24 volt, 48 volt, providing 2000rpm rated speed and 2.4 Nm holding torque. IP54 rated which meet the splash-proof requirements for most applications. Select the matched controller and gearbox form drop-down box if necessary.
    SKU: ATO-BLDC-500R2
    *
    *
    *
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 15-30 days
    Related products
    1 hp (750W) 24V/48V/72/96V Brushless DC Motor

    1 hp (750W) 24V/48V/72/96V Brushless DC Motor

    $352.77
    SKU: ATO-BLDC-750R3
    Buy 1 hp (750W) BLDC motor has good control performance and reasonable price. It comes with 80 mm compact square flange size, 3000 rpm rated speed, 2.4 Nm holding torque, works at 24V/48V DC power supply, 72V/92V voltage is available. Selecting our powerful controller and gearbox combines with the motor will provide you higher torque, higher efficiency and more reliable.
    1 kW 36V/48V 3000rpm Brushless DC Motor

    1 kW 36V/48V 3000rpm Brushless DC Motor

    $415.85
    SKU: ATO-BLDC-1000R3
    1 kW 36V/48V BLDC motor on sales, brushless design for long life, cost-effective replacement for brush DC motors. Features with 3000 rpm rated speed, 3.18 Nm holding torque, offers a great combination of durability, efficiency, torque and speed in a compact size. The matching controller and gearbox are available here.
    1 kW 48V/72V 1000rpm 10Nm Brushless DC Motor

    1 kW 48V/72V 1000rpm 10Nm Brushless DC Motor

    $784.83
    SKU: ATO-BLDC-1000R1
    Low cost brushless DC motor is 3 phase, 1000 rpm low speed, 1 kW rated power, max power to 3.1 kW, 10 Nm holding torque and peak torque to 30Nm. Working voltage available with 24V/48/72/96V DC, compact size and high power density, IP65 protection grade and class F insulation for high temperature operation in humid environments.
    600W 24V/48V72V 1000rpm 6Nm Brushless DC Motor

    600W 24V/48V72V 1000rpm 6Nm Brushless DC Motor

    $505.88
    SKU: ATO-BLDC-600R1
    3 phase 600W brushless DC motor operates at 24V/48V72V power supply, provides 6.0Nm holding torque, 1000rpm low speed and more reliable, peak torque up to 18Nm. ATO offers powerful motor controller and gearbox with multiple gear ratios for choice. In general, BLDC motor combines with the gearbox are perfect solutions for motion control applications where high efficiency and high torque are required.
    Brushless DC Motor Controller for Electric Vehicle

    Brushless DC Motor Controller for Electric Vehicle

    $395.52
    SKU: ATO-BLDC-TH-G
    High speed BLDC motor controller is designed for electric motorcycles and electric scooters, equiped with powerful and intelligent microprocessor, up to 40000 electric RPM, compatible with 60 degrees or 120 degrees Hall position sensor and support any poles of brushless motor.

    PRODUCT DESCRIPTION

    High efficiency and energy-saving 24V/48V brushless DC motor, 500W rated power, has a rated speed of 2,000 rpm and utilizes Hall sensor feedback, cost-effective replacement for brush DC motors. Product can be widely used in new energy electric car, renewable energy systems, industrial equipment which require high torque density and compact occasions.

    500W BLDC MOTOR SPECIFICATION

    Model ATO-80WDM02420 (Click it to see more motor specs)
    Matched Controller Model ATOTH-G (Click it to see more controller specs)
    Square Flange Size 80 mm
    Phase 3 phase
    Number of Pole 4 pairs of poles (8 poles)
    Rated Voltage 24V DC 48V DC 72V DC 96V DC
    Rated Current 26.18 A 13.09 A 8.73 A 6.54 A
    Rated Power 500 W
    Maximum Power 1.5 kW
    Holding Torque 2.4 Nm
    Peak Torque 7.5 Nm
    Rated Speed 2000 rpm
    Maximum Speed 2400 rpm
    Efficiency 85%
    Rotor Inertia 0.8 kgcm2
    Electric Potential 10 V/K rpm 20 V/K rpm 30 V/K rpm 40 V/K rpm
    Brake Apparatus Voltage 24V DC, (If 24V voltage is not connected, the motor brake)
    Motor Lead Length by Default 30 cm, if buy a kit (motor+controller), extra 1 meter of wire shall be provided.
    Warranty Time 12 months
    Certificate CE, ROHs, ISO/TS16949
    Insulation Rank F
    Protection Rank IP54
    Temperature -20~55℃
    Humidity <90%RH (no dewing)
    Motor Weight 3 kg
    NOTE: Tell us your application needs, we can customize the BLDC motor to meet your precise power, speed, voltage and current requirements.

    BLDC MOTOR LINE DEFINITION

    Power Wire Power Line Color Red Yellow Blue
    Motor Winding U V W
    Feedback Wire Hall Line Color Orange and Black Orange Yellow Blue Green
    Hall Signal Definition 5V 0V Hall A Hall B Hall C
    Plug serial number 1 2 3 4 5

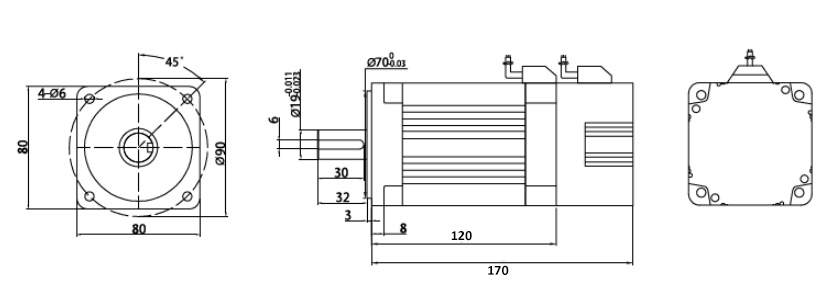

    24V/48V/72V/96V BLDC MOTOR DIMENSION (Unit=mm)

    500w 2000rpm bldc motor size

    MOTOR AND HAll RELATIONSHIP

    BLDC motor and hall relationship

    TIPS:

    Brushless DC motor consists of the motor and drive, is a typical mechatronic product. The stator windings of the motor are mostly made using three-phase symmetrical star connection, which is very similar to the three-phase asynchronous motor. Magnetically charged permanent magnets are attached to the rotor of the motor. In order to detect the polarity of the motor rotor, a position sensor is provided in the motor. The drive consists of power electronics and integrated circuits. Its function is: To accept the motor start, stop and brake signal to control the motor start, stop and brake. To accept the position sensor signal and the positive and negative signals used to control the inverse change the power of the bridge power on and off, resulting in continuous torque. Receive speed instructions and speed feedback signal, used to control and adjust the speed. It provides protection and display and so on.

    Visit blog post Brushless DC motor, how does it works?

    Wiring ATO High Torque BLDC Motor With Controller

    In this video, we will show you how to connect a ATO 400W-15kW 24V/48V/72V/96V high torque brushless DC motor with the matching controller.

    How to Make Your BLDC Motor Forward and Reverse Control

    If you want your electric car to be more powerful, try using ATO high torque BLDC motor kit as the power unit. It is a good idea. Refer to the video step by step to operate, you can achieve the forward and reverse control of the brushless DC motor.



    1. Controller User Manual.pdf

    2. BLDC Motor Wiring Instruction.pdf

    3. ATO BLDC Motors Catalog.pdf

    ATO High Torque BLDC Motor Drawings & Price List

    Note:

    1. ATO highly recommends 48V motors because all models of 48V are in stock, the price is cheaper and the delivery time is shorter, only about 7 days.

    2. 24V/ 72V/ 96V motors are generally not in stock, need to be produced by the factory, which will cost more to start the production line and the delivery time will be longer, about 25 days.

    3. The prices in the table are just for your reference. If you want to get the latest quotation, please feel free to contact us.

    Model Motor Price Controller Price Rated Power Rated Speed Rated Torque Rotor Inertia Motor Weight
    (USD/Piece) (USD/Piece) (kW)  (RPM) (Nm) (Kgcm2) (Kg)
    80mm Series DC Brushless Motor
    ATO-80WDM01330 24/48/72/96V 24V: 458.24 395.52 0.41 3000 1.3 0.6 2.4
    48V: 305.49
    72/96V: 580.43
    ATO-80WDM02420 24/48/72/96V 24V: 564.53 395.52 0.5 2000 2.4 0.8 3
    48V: 376.35
    72/96V: 715.06
    ATO-80WDM02430 24/48/72/96V 24V: 529.16 395.52 0.75 3000 2.4 0.8 3
    48V: 352.77
    72/96V: 670.26
    ATO-80WDM03320 24/48/72/96V 24V: 597.68 395.52 0.69 2000 3.3 1.1 3
    48V: 398.45
    72/96V: 757.36
    ATO-80WDM03330 24/48/72/96V 24V: 639.27 395.52 1.04 3000 3.3 1.1 3
    48V: 426.18
    72/96V: 809.74
    110mm Series DC Brushless Motor
    ATO-110WDM02020 24/48/72/96V 24V: 687.38 395.52 0.4 2000 2 3.3 3.2
    48V: 458.25
    72/96V: 824.85
    ATO-110WDM02030 24/48/72/96V 24V: 745.11 395.52 0.6 3000 2 3.3 3.2
    48V: 496.74
    72/96V: 894.13
    ATO-110WDM04010 24/48/72/96V 24V: 779.86 395.52 0.4 1000 4 6.5 5.65
    48V: 519.93
    72/96V: 935.87
    ATO-110WDM04020 24/48/72/96V 24V: 788.57 395.52 0.8 2000 4 6.5 5.65
    48V: 525.71
    72/96V: 988.33
    ATO-110WDM04030 24/48/72/96V 24V: 798.63 653.05 1.3 3000 4 6.5 5.65
    48V: 532.42
    72/96V: 1001.95
    ATO-110WDM06010 24/48/72/96V 24V: 758.82 395.52 0.6 1000 6 10 6.6
    48V: 505.88
    72/96V: 956.69
    ATO-110WDM06020 24/48/72/96V 24V: 819.59 653.05 1.3 2000 6 10 6.6
    48V: 546.39
    72/96V: 1010.82
    ATO-110WDM06030 24/48/72/96V 24V: 995.94 653.05 1.9 3000 6 10 6.6
    48V: 553.28
    72/96V: 1051.23
    130mm Series DC Brushless Motor
    ATO-130WDM04010 24/48/72/96V 24V: 876.95 395.52 0.4 1000 4 10.4 6.7
    48V: 584.62
    72/96V: 1099.08
    ATO-130WDM04020 24/48/72/96V 24V: 910.67 395.52 0.8 2000 4 10.4 6.7
    48V: 607.13
    72/96V: 1104.98
    ATO-130WDM04030 24/48/72/96V 24V: 959.18 653.05 1.3 3000 4 10.4 6.7
    48V: 639.45
    72/96V: 1151.01
    ATO-130WDM06010 24/48/72/96V 24V: 987.65 395.52 0.6 1000 6 12.4 7.7
    48V: 658.43
    72/96V: 1185.17
    ATO-130WDM06020 24/48/72/96V 24V: 1012.23 653.05 1.3 2000 6 12.4 7.7
    48V: 674.82
    72/96V: 1147.19
    ATO-130WDM06030 24/48/72/96V 24V: 1047.72 653.05 1.9 3000 6 12.4 7.7
    48V: 698.48
    72/96V: 1208.34
    ATO-130WDM07710 24/48/72/96V 24V: 1060.07 395.52 0.8 1000 7.7 15.8 9.05
    48V: 706.71
    72/96V: 1257.94
    ATO-130WDM07720 24/48/72/96V 24V: 1093.21 653.05 1.6 2000 7.7 15.8 9.05
    48V: 738.65
    72/96V: 1292.64
    ATO-130WDM07730 48/72/96V 48V: 751.52 653.05 2.3 3000 7.7 15.8 9.05
    72/96V: 1337.71
    ATO-130WDM10010 24/48/72/96V 24V: 1161.55 653.05 1 1000 10 21.4 12
    48V: 784.83
    72/96V: 1396.89
    ATO-130WDM10020 24/48/72/96V 24V: 1224.36 653.05 2 2000 10 21.4 12
    48V: 816.24
    72/96V: 1371.28
    ATO-130WDM10030 48/72/96V 48V: 879.12 898.21 3.1 3000 10 21.4 12
    72/96V: 1450.55
    ATO-130WDM15010 24/48/72/96V 24V:1311.88 653.05 1.6 1000 15 32.4 12
    48V: 936.47
    72/96V: 1498.35
    ATO-130WDM15020 48/72/96V 48V: 1086.36 898.21 3.1 2000 15 32.4 12
    72/96V: 1738.17
    ATO-130WDM15030 48/72/96V 48V: 1127.54 1119.07 4.7 3000 15 32.4 12
    72/96V: 1804.64
    180mm Series DC Brushless Motor
    ATO-180WDM12010 48/72/96V 48V: 1246.31 653.05 1.3 1000 12 32.6  18.5
    72/96V: 1994.09
    ATO-180WDM12020 48/72/96V 48V: 1323.69 653.05 2.5 2000 12 32.6 18.5
    72/96V: 2117.91
    ATO-180WDM12030 48/72/96V 48V: 1398.84 898.21 3.8 3000 12 38 18.5
    72/96V: 2238.14
    ATO-180WDM16010 48/72/96V 48V: 1555.69 653.05 1.7 1000 16 55 18.6
    72/96V: 2411.32
    ATO-180WDM16020 48/72/96V 48V: 1625.36 898.21 3.4 2000 16 55 18.6
    72/96V: 2568.07
    ATO-180WDM16030 48/72/96V 48V: 1745.93 1119.07 5 3000 16 55 18.6
    72/96V: 2618.89
    ATO-180WDM25010 48/72/96V 48V: 2012.54 653.05 2.6 1000 25 55 26
    72/96V: 3179.81
    ATO-180WDM25020 48/72/96V 48V: 2274.19 1119.07 5.2 2000 25  93 26
    72/96V: 3411.26
    ATO-180WDM25030 48/72/96V 48V: 2448.58 1531.99 7.9 3000 25  93 26
    72/96V: 3672.87
    ATO-180WDM36010 48/72/96V 48V: 2644.28 898.21 3.8 1000 36 148 30
    72/96V: 3966.42
    ATO-180WDM36020 48/72/96V 48V: 2832.56 1119.07 7.5 2000 36 148 30
    72/96V: 4248.84
    ATO-180WDM36030 72/96V 72/96V: 4334.69 1885.15 11.3 3000 36 148 30
    ATO-180WDM50010 48/72/96V 48V: 3284.58 1119.07 5.2 1000 50 165 38
    72/96V: 4556.41
    ATO-180WDM50020 48/72/96V 48V: 4344.12 1531.99 10.8 2000 50 165 38
    72/96V: 5994.72
    ATO-180WDM50030 96V 96V: 6204.65 2261.84 15.7 3000 50 165 38
