    1 kW Brushless DC Motor, 48V/72V, 10 Nm, 1000 rpm

    5 out of 5 based on 7 reviews | Write a review
    $784.83
    Low cost 1000W brushless DC motor operates at 48V/ 72V/ 96V power supply, 8 poles 3 phase BLDC electric motor features 1000 rpm low speed, 10 Nm holding torque and peak torque to 30 Nm, IP65 for body. Matching with our BLDC motor controller to provide higher torque.
    SKU: ATO-BLDC-1000R1
    *
    *
    *
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    ATO customized 24V, 48V, 72V, 96V brushless DC electric motor combines with controller at competitive price. Adding brake option and matching gearbox are provided. 1kW BLDC motor features 130 mm square flange size, 1000 low rpm rated speed, 10 Nm high torque to meet your project's needs. ATO recommends buying a set of BLDC motors, which is an economical solution in the long run.

    FEATURES

    • High performance and low consumption.
      1000 watt brushless DC motor is three phase electric motor, which especially suited for application requiring higher efficiency and power density.
    • Wide application range and good control effect.
      BLDC motor works with a matching controller (ATOTH-G) may achieve simple to complex control, turn from CW to CCW, and meet various communication requirements (RS232, RS485, CAN, etc.). BLDC controller can be controlled through 0-5VDC analog signal to adjust the speed.
    • Wide control speed torque range.
      Brushless DC motor works with a gearbox (choose inline gearbox or right angle gearbox with gear ratio from 3:1 to 200:1) effectively reduce the motor's speed and moment of inertia to increase torque in your application, because the gearbox can control the start/stop and change speed in time.
    • Low noise and smooth operation.
      Brushless DC motor has no brushes, no sparks will be generated during operation, which greatly reduces friction.
    • Good protection performance and continuous duty (24/7).
      1kW BLDC motor kit adopts a new type of sealing device, which has good protection performance and strong adaptability to the environment, and works continuously in harsh environments such as corrosion and humidity.

    SPECIFICATION

    Model ATO-130WDM10010 (Click it to see more motor specs)
    Matched Controller Model ATOTH-G (Click it to see more controller specs)
    Square Flange Size 130 mm
    Phase 3 phase
    Number of Pole 4 pairs of poles (8 poles)
    Rated Voltage 24V DC 48V DC 72V DC 96V DC
    Rated Current 51.4 A 25.7 A 17.1 A 12.8 A
    Rated Power 1 kW
    Maximum Power 3.1 kW
    Holding Torque 10 Nm
    Peak Torque 30 Nm
    Rated Speed 1000 rpm
    Maximum Speed 1200 rpm
    Efficiency 85%
    Rotor Inertia 21.4 kgcm2
    Electric Potential 20 V/K rpm 40 V/K rpm 60 V/K rpm 80 V/K rpm
    Brake Apparatus Voltage 24V DC, (If 24V voltage is not connected, the motor brake)
    Brake length: 40-50mm
    Motor Lead Length by Default 30 cm, if buy a kit (motor+controller), extra 1 meter of wire shall be provided.
    Warranty Time 12 months
    Certificate CE, ROHs, ISO/TS16949
    Insulation Rank F
    Protection Rank IP65
    Temperature -20~55℃
    Humidity <90%RH (no dewing)
    Motor Weight 12 kg
    What Parameters of ATO BLDC motor Can Be Customized?
    Power Yes
    Voltage Yes
    Speed Yes
    Shaft Yes
    Motor Length Yes
    Motor Lead Yes

    BLDC MOTOR LINE DEFINITION

    1. For Motor Power Wire

    Power Wire Power Line Color Red Yellow Blue
    Motor Winding U V W

    2. For Feedback Wire

    Feedback Wire Hall Line Color Orange and Black Orange Yellow Blue Green
    Hall Signal Definition 5V 0V Hall A Hall B Hall C
    Plug Serial Number 1 2 3 4 5

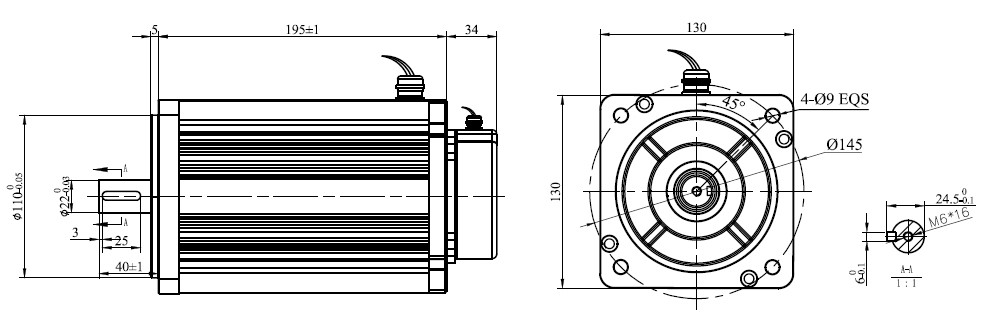

    MOTOR DIMENSION (Unit=mm)

    1kw 1000rpm bldc motor size

    MOTOR AND HAll RELATIONSHIP

    BLDC motor and hall relationship

    TIPS: Different Structure between BLDC motor and AC motor

    There is a coil in the AC motor. The resistance of this coil is generally not very high, which is around 100 ohms. Taking the phase shift as an example, it is divided into starting winding and operation winding.
    The internal structure of the brushless DC motor is mainly composed of the stator and the rotor. In the past, brush motors were used in most cases. There is a carbon brush on the rotor of the brush motor, and there is a Hall sensor on the motor. During the working process, it continuously and alternately contacts with the conversion plate, which generates an alternating electromagnetic field and continues to rotate. However, the later developed and designed DC brushless motors have no carbon brushes and are much smaller than AC motors and DC brushed motors in size, so many industrial equipment now use brushless DC motors.

    Wiring ATO High Torque BLDC Motor With Controller

    In this video, we will show you how to connect a ATO 400W-15kW 24V/48V/72V/96V high torque brushless DC motor with the matching controller.

    How to Make Your BLDC Motor Forward and Reverse Control

    If you want your electric car to be more powerful, try using ATO high torque BLDC motor kit as the power unit. It is a good idea. Refer to the video step by step to operate, you can achieve the forward and reverse control of the brushless DC motor.



    1. Controller User Manual.pdf

    2. BLDC Motor Wiring Instruction.pdf

    3. ATO BLDC Motors Catalog.pdf

    ATO High Torque BLDC Motor Drawings & Price List

    Note:

    1. ATO highly recommends 48V motors because all models of 48V are in stock, the price is cheaper and the delivery time is shorter, only about 7 days.

    2. 24V/ 72V/ 96V motors are generally not in stock, need to be produced by the factory, which will cost more to start the production line and the delivery time will be longer, about 25 days.

    3. The prices in the table are just for your reference. If you want to get the latest quotation, please feel free to contact us.

    Model Motor Price Controller Price Rated Power Rated Speed Rated Torque Rotor Inertia Motor Weight
    (USD/Piece) (USD/Piece) (kW)  (RPM) (Nm) (Kgcm2) (Kg)
    80mm Series DC Brushless Motor
    ATO-80WDM01330 24/48/72/96V 24V: 458.24 395.52 0.41 3000 1.3 0.6 2.4
    48V: 305.49
    72/96V: 580.43
    ATO-80WDM02420 24/48/72/96V 24V: 564.53 395.52 0.5 2000 2.4 0.8 3
    48V: 376.35
    72/96V: 715.06
    ATO-80WDM02430 24/48/72/96V 24V: 529.16 395.52 0.75 3000 2.4 0.8 3
    48V: 352.77
    72/96V: 670.26
    ATO-80WDM03320 24/48/72/96V 24V: 597.68 395.52 0.69 2000 3.3 1.1 3
    48V: 398.45
    72/96V: 757.36
    ATO-80WDM03330 24/48/72/96V 24V: 639.27 395.52 1.04 3000 3.3 1.1 3
    48V: 426.18
    72/96V: 809.74
    110mm Series DC Brushless Motor
    ATO-110WDM02020 24/48/72/96V 24V: 687.38 395.52 0.4 2000 2 3.3 3.2
    48V: 458.25
    72/96V: 824.85
    ATO-110WDM02030 24/48/72/96V 24V: 745.11 395.52 0.6 3000 2 3.3 3.2
    48V: 496.74
    72/96V: 894.13
    ATO-110WDM04010 24/48/72/96V 24V: 779.86 395.52 0.4 1000 4 6.5 5.65
    48V: 519.93
    72/96V: 935.87
    ATO-110WDM04020 24/48/72/96V 24V: 788.57 395.52 0.8 2000 4 6.5 5.65
    48V: 525.71
    72/96V: 988.33
    ATO-110WDM04030 24/48/72/96V 24V: 798.63 653.05 1.3 3000 4 6.5 5.65
    48V: 532.42
    72/96V: 1001.95
    ATO-110WDM06010 24/48/72/96V 24V: 758.82 395.52 0.6 1000 6 10 6.6
    48V: 505.88
    72/96V: 956.69
    ATO-110WDM06020 24/48/72/96V 24V: 819.59 653.05 1.3 2000 6 10 6.6
    48V: 546.39
    72/96V: 1010.82
    ATO-110WDM06030 24/48/72/96V 24V: 995.94 653.05 1.9 3000 6 10 6.6
    48V: 553.28
    72/96V: 1051.23
    130mm Series DC Brushless Motor
    ATO-130WDM04010 24/48/72/96V 24V: 876.95 395.52 0.4 1000 4 10.4 6.7
    48V: 584.62
    72/96V: 1099.08
    ATO-130WDM04020 24/48/72/96V 24V: 910.67 395.52 0.8 2000 4 10.4 6.7
    48V: 607.13
    72/96V: 1104.98
    ATO-130WDM04030 24/48/72/96V 24V: 959.18 653.05 1.3 3000 4 10.4 6.7
    48V: 639.45
    72/96V: 1151.01
    ATO-130WDM06010 24/48/72/96V 24V: 987.65 395.52 0.6 1000 6 12.4 7.7
    48V: 658.43
    72/96V: 1185.17
    ATO-130WDM06020 24/48/72/96V 24V: 1012.23 653.05 1.3 2000 6 12.4 7.7
    48V: 674.82
    72/96V: 1147.19
    ATO-130WDM06030 24/48/72/96V 24V: 1047.72 653.05 1.9 3000 6 12.4 7.7
    48V: 698.48
    72/96V: 1208.34
    ATO-130WDM07710 24/48/72/96V 24V: 1060.07 395.52 0.8 1000 7.7 15.8 9.05
    48V: 706.71
    72/96V: 1257.94
    ATO-130WDM07720 24/48/72/96V 24V: 1093.21 653.05 1.6 2000 7.7 15.8 9.05
    48V: 738.65
    72/96V: 1292.64
    ATO-130WDM07730 48/72/96V 48V: 751.52 653.05 2.3 3000 7.7 15.8 9.05
    72/96V: 1337.71
    ATO-130WDM10010 24/48/72/96V 24V: 1161.55 653.05 1 1000 10 21.4 12
    48V: 784.83
    72/96V: 1396.89
    ATO-130WDM10020 24/48/72/96V 24V: 1224.36 653.05 2 2000 10 21.4 12
    48V: 816.24
    72/96V: 1371.28
    ATO-130WDM10030 48/72/96V 48V: 879.12 898.21 3.1 3000 10 21.4 12
    72/96V: 1450.55
    ATO-130WDM15010 24/48/72/96V 24V:1311.88 653.05 1.6 1000 15 32.4 12
    48V: 936.47
    72/96V: 1498.35
    ATO-130WDM15020 48/72/96V 48V: 1086.36 898.21 3.1 2000 15 32.4 12
    72/96V: 1738.17
    ATO-130WDM15030 48/72/96V 48V: 1127.54 1119.07 4.7 3000 15 32.4 12
    72/96V: 1804.64
    180mm Series DC Brushless Motor
    ATO-180WDM12010 48/72/96V 48V: 1246.31 653.05 1.3 1000 12 32.6  18.5
    72/96V: 1994.09
    ATO-180WDM12020 48/72/96V 48V: 1323.69 653.05 2.5 2000 12 32.6 18.5
    72/96V: 2117.91
    ATO-180WDM12030 48/72/96V 48V: 1398.84 898.21 3.8 3000 12 38 18.5
    72/96V: 2238.14
    ATO-180WDM16010 48/72/96V 48V: 1555.69 653.05 1.7 1000 16 55 18.6
    72/96V: 2411.32
    ATO-180WDM16020 48/72/96V 48V: 1625.36 898.21 3.4 2000 16 55 18.6
    72/96V: 2568.07
    ATO-180WDM16030 48/72/96V 48V: 1745.93 1119.07 5 3000 16 55 18.6
    72/96V: 2618.89
    ATO-180WDM25010 48/72/96V 48V: 2012.54 653.05 2.6 1000 25 55 26
    72/96V: 3179.81
    ATO-180WDM25020 48/72/96V 48V: 2274.19 1119.07 5.2 2000 25  93 26
    72/96V: 3411.26
    ATO-180WDM25030 48/72/96V 48V: 2448.58 1531.99 7.9 3000 25  93 26
    72/96V: 3672.87
    ATO-180WDM36010 48/72/96V 48V: 2644.28 898.21 3.8 1000 36 148 30
    72/96V: 3966.42
    ATO-180WDM36020 48/72/96V 48V: 2832.56 1119.07 7.5 2000 36 148 30
    72/96V: 4248.84
    ATO-180WDM36030 72/96V 72/96V: 4334.69 1885.15 11.3 3000 36 148 30
    ATO-180WDM50010 48/72/96V 48V: 3284.58 1119.07 5.2 1000 50 165 38
    72/96V: 4556.41
    ATO-180WDM50020 48/72/96V 48V: 4344.12 1531.99 10.8 2000 50 165 38
    72/96V: 5994.72
    ATO-180WDM50030 96V 96V: 6204.65 2261.84 15.7 3000 50 165 38
