    1/2 hp (400W) 24V/48V 3000rpm Brushless DC Motor

    5 out of 5 based on 6 reviews | Write a review
    $305.49
    Lower price 24 volt / 48 volt bldc electric motor matches with bldc motor controller, 3000rpm rated speed, 1.3Nm rated torque, peak torque up to 4Nm. 400W 3-phase brushless dc motor kit best for electric car.
    SKU: ATO-BLDC-400R3
    *
    *
    *
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 15-30 days

    Buy 1/2 hp (400 watt) brushless dc motor with powerful bldc controller. Features 3 phase and 4 pair of poles, 24V/48V voltage, rated speed of 3000 rpm, max speed up to 3600 rpm. IP54 rating with shaft seal, complete protection from dust particles, can be subjected to moist or humid environments.

    1/2 HP (400W) BLDC MOTOR SPECIFICATION

    Model ATO-80WDM01330 (Click it to see more motor specs)
    Matched Controller Model ATOTH-G (Click it to see more controller specs)
    Square Flange Size 80 mm
    Phase 3 phase
    Number of Pole 4 pairs of poles (8 poles)
    Rated Voltage 24V DC 48V DC 72V DC 96V DC
    Rated Current 21.3 A 10.6 A 7.1 A 5.3 A
    Rated Power 400 W
    Maximum Power 1.2 kW
    Holding Torque 1.3 Nm
    Peak Torque 4 Nm
    Rated Speed 3000 rpm
    Maximum Speed 3600 rpm
    Efficiency 85%
    Rotor Inertia 0.6 kgcm2
    Electric Potential 6.7 V/K rpm 13.3 V/K rpm 20 V/K rpm 26.7 V/K rpm
    Brake Apparatus Voltage 24V DC, (If 24V voltage is not connected, the motor brake.)
    Brake length: 40-50mm
    Motor Lead Length by Default 30 cm, If buy a kit (motor+controller), extra 1 meter of wire shall be provided.
    Warranty Time 12 months
    Certificate CE, ROHs, ISO/TS16949
    Insulation Rank F
    Protection Rank IP54
    Temperature -20~55℃
    Humidity <90%RH (no dewing)
    Motor Weight 2.4 kg
    NOTE: Tell us your application needs, we can customize the BLDC motor to meet your precise power, speed, voltage and current requirements.

    BLDC MOTOR LINE DEFINITION

    Power Wire Power Line Color Red Yellow Blue
    Motor Winding U V W
    Feedback Wire Hall Line Color Orange and Black Orange Yellow Blue Green
    Hall Signal Definition 5V 0V Hall A Hall B Hall C
    Plug serial number 1 2 3 4 5

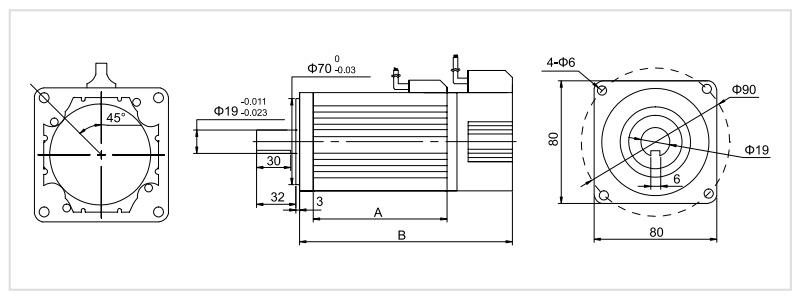

    24V/48V/72V/96V BLDC MOTOR DIMENSION (Unit=mm)

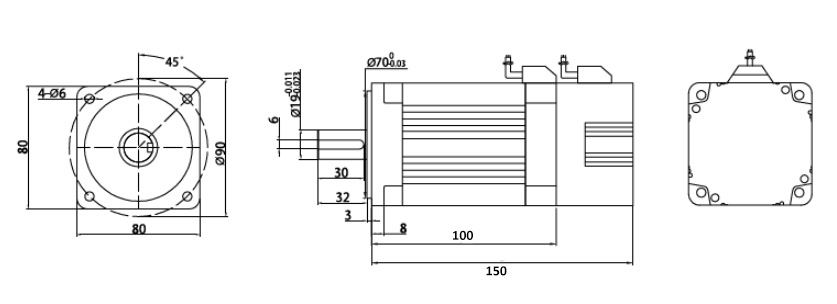

    400w 3000rpm bldc motor size

    MOTOR AND HAll RELATIONSHIP

    BLDC motor and hall relationship

    48V BLDC MOTOR SPEED-TORQUE CURVE

    ATO-80WDM01330-48 speed torque curve

    TIPS:

    The traditional traction motors are driven by a DC brush motor, but there are troubles and difficulties in maintenance due to the problem of the motor carbon brush commutator. Brush DC motor cannot be made into a closed structure, it is not suitable to apply in poor environment. However, trams are mobile devices that must withstand harsh environments and bumpy vibrations that happen to be unacceptable to brush DC motors.

    ATO DC brushless motor is applied with the control principle of permanent magnet DC brushless motor, there is no carbon brush and commutator, therefore the motor can be designed to withstand a variety of weather-tight closed-structure. The motor has no maintenance problems, and with a simple structure, it is resistant to bumps and vibrations, in order to achieve a long life.

    After applying the DC brushless motors, all the previous problems can be solved. Since there is no need for carbon brush, the motor can be made into a closed type to avoid the problem that it may face in a bad environment, the starting torque can be up to 400 ~ 600 %.

    Wiring ATO High Torque BLDC Motor With Controller

    In this video, we will show you how to connect a ATO 400W-15kW 24V/48V/72V/96V high torque brushless DC motor with the matching controller.

    How to Make Your BLDC Motor Forward and Reverse Control

    If you want your electric car to be more powerful, try using ATO high torque BLDC motor kit as the power unit. It is a good idea. Refer to the video step by step to operate, you can achieve the forward and reverse control of the brushless DC motor.



    1. Controller User Manual.pdf

    2. BLDC Motor Wiring Instruction.pdf

    3. ATO BLDC Motors Catalog.pdf

    ATO High Torque BLDC Motor Drawings & Price List

    Note:

    1. ATO highly recommends 48V motors because all models of 48V are in stock, the price is cheaper and the delivery time is shorter, only about 7 days.

    2. 24V/ 72V/ 96V motors are generally not in stock, need to be produced by the factory, which will cost more to start the production line and the delivery time will be longer, about 25 days.

    3. The prices in the table are just for your reference. If you want to get the latest quotation, please feel free to contact us.

    Model Motor Price Controller Price Rated Power Rated Speed Rated Torque Rotor Inertia Motor Weight
    (USD/Piece) (USD/Piece) (kW)  (RPM) (Nm) (Kgcm2) (Kg)
    80mm Series DC Brushless Motor
    ATO-80WDM01330 24/48/72/96V 24V: 458.24 395.52 0.41 3000 1.3 0.6 2.4
    48V: 305.49
    72/96V: 580.43
    ATO-80WDM02420 24/48/72/96V 24V: 564.53 395.52 0.5 2000 2.4 0.8 3
    48V: 376.35
    72/96V: 715.06
    ATO-80WDM02430 24/48/72/96V 24V: 529.16 395.52 0.75 3000 2.4 0.8 3
    48V: 352.77
    72/96V: 670.26
    ATO-80WDM03320 24/48/72/96V 24V: 597.68 395.52 0.69 2000 3.3 1.1 3
    48V: 398.45
    72/96V: 757.36
    ATO-80WDM03330 24/48/72/96V 24V: 639.27 395.52 1.04 3000 3.3 1.1 3
    48V: 426.18
    72/96V: 809.74
    110mm Series DC Brushless Motor
    ATO-110WDM02020 24/48/72/96V 24V: 687.38 395.52 0.4 2000 2 3.3 3.2
    48V: 458.25
    72/96V: 824.85
    ATO-110WDM02030 24/48/72/96V 24V: 745.11 395.52 0.6 3000 2 3.3 3.2
    48V: 496.74
    72/96V: 894.13
    ATO-110WDM04010 24/48/72/96V 24V: 779.86 395.52 0.4 1000 4 6.5 5.65
    48V: 519.93
    72/96V: 935.87
    ATO-110WDM04020 24/48/72/96V 24V: 788.57 395.52 0.8 2000 4 6.5 5.65
    48V: 525.71
    72/96V: 988.33
    ATO-110WDM04030 24/48/72/96V 24V: 798.63 653.05 1.3 3000 4 6.5 5.65
    48V: 532.42
    72/96V: 1001.95
    ATO-110WDM06010 24/48/72/96V 24V: 758.82 395.52 0.6 1000 6 10 6.6
    48V: 505.88
    72/96V: 956.69
    ATO-110WDM06020 24/48/72/96V 24V: 819.59 653.05 1.3 2000 6 10 6.6
    48V: 546.39
    72/96V: 1010.82
    ATO-110WDM06030 24/48/72/96V 24V: 995.94 653.05 1.9 3000 6 10 6.6
    48V: 553.28
    72/96V: 1051.23
    130mm Series DC Brushless Motor
    ATO-130WDM04010 24/48/72/96V 24V: 876.95 395.52 0.4 1000 4 10.4 6.7
    48V: 584.62
    72/96V: 1099.08
    ATO-130WDM04020 24/48/72/96V 24V: 910.67 395.52 0.8 2000 4 10.4 6.7
    48V: 607.13
    72/96V: 1104.98
    ATO-130WDM04030 24/48/72/96V 24V: 959.18 653.05 1.3 3000 4 10.4 6.7
    48V: 639.45
    72/96V: 1151.01
    ATO-130WDM06010 24/48/72/96V 24V: 987.65 395.52 0.6 1000 6 12.4 7.7
    48V: 658.43
    72/96V: 1185.17
    ATO-130WDM06020 24/48/72/96V 24V: 1012.23 653.05 1.3 2000 6 12.4 7.7
    48V: 674.82
    72/96V: 1147.19
    ATO-130WDM06030 24/48/72/96V 24V: 1047.72 653.05 1.9 3000 6 12.4 7.7
    48V: 698.48
    72/96V: 1208.34
    ATO-130WDM07710 24/48/72/96V 24V: 1060.07 395.52 0.8 1000 7.7 15.8 9.05
    48V: 706.71
    72/96V: 1257.94
    ATO-130WDM07720 24/48/72/96V 24V: 1093.21 653.05 1.6 2000 7.7 15.8 9.05
    48V: 738.65
    72/96V: 1292.64
    ATO-130WDM07730 48/72/96V 48V: 751.52 653.05 2.3 3000 7.7 15.8 9.05
    72/96V: 1337.71
    ATO-130WDM10010 24/48/72/96V 24V: 1161.55 653.05 1 1000 10 21.4 12
    48V: 784.83
    72/96V: 1396.89
    ATO-130WDM10020 24/48/72/96V 24V: 1224.36 653.05 2 2000 10 21.4 12
    48V: 816.24
    72/96V: 1371.28
    ATO-130WDM10030 48/72/96V 48V: 879.12 898.21 3.1 3000 10 21.4 12
    72/96V: 1450.55
    ATO-130WDM15010 24/48/72/96V 24V:1311.88 653.05 1.6 1000 15 32.4 12
    48V: 936.47
    72/96V: 1498.35
    ATO-130WDM15020 48/72/96V 48V: 1086.36 898.21 3.1 2000 15 32.4 12
    72/96V: 1738.17
    ATO-130WDM15030 48/72/96V 48V: 1127.54 1119.07 4.7 3000 15 32.4 12
    72/96V: 1804.64
    180mm Series DC Brushless Motor
    ATO-180WDM12010 48/72/96V 48V: 1246.31 653.05 1.3 1000 12 32.6  18.5
    72/96V: 1994.09
    ATO-180WDM12020 48/72/96V 48V: 1323.69 653.05 2.5 2000 12 32.6 18.5
    72/96V: 2117.91
    ATO-180WDM12030 48/72/96V 48V: 1398.84 898.21 3.8 3000 12 38 18.5
    72/96V: 2238.14
    ATO-180WDM16010 48/72/96V 48V: 1555.69 653.05 1.7 1000 16 55 18.6
    72/96V: 2411.32
    ATO-180WDM16020 48/72/96V 48V: 1625.36 898.21 3.4 2000 16 55 18.6
    72/96V: 2568.07
    ATO-180WDM16030 48/72/96V 48V: 1745.93 1119.07 5 3000 16 55 18.6
    72/96V: 2618.89
    ATO-180WDM25010 48/72/96V 48V: 2012.54 653.05 2.6 1000 25 55 26
    72/96V: 3179.81
    ATO-180WDM25020 48/72/96V 48V: 2274.19 1119.07 5.2 2000 25  93 26
    72/96V: 3411.26
    ATO-180WDM25030 48/72/96V 48V: 2448.58 1531.99 7.9 3000 25  93 26
    72/96V: 3672.87
    ATO-180WDM36010 48/72/96V 48V: 2644.28 898.21 3.8 1000 36 148 30
    72/96V: 3966.42
    ATO-180WDM36020 48/72/96V 48V: 2832.56 1119.07 7.5 2000 36 148 30
    72/96V: 4248.84
    ATO-180WDM36030 72/96V 72/96V: 4334.69 1885.15 11.3 3000 36 148 30
    ATO-180WDM50010 48/72/96V 48V: 3284.58 1119.07 5.2 1000 50 165 38
    72/96V: 4556.41
    ATO-180WDM50020 48/72/96V 48V: 4344.12 1531.99 10.8 2000 50 165 38
    72/96V: 5994.72
    ATO-180WDM50030 96V 96V: 6204.65 2261.84 15.7 3000 50 165 38
    Existing reviews of 1/2 hp (400W) 24V/48V 3000rpm Brushless DC Motor
    worked perfectly for go kart
    This 400W 24V brushless DC motor is the one I requied, it worked perfectly for my go kart system.
    From: Ricky | Date: 06/06/2018
    Was this review helpful? Yes No (1/0)
    Great brushless DC motor and controller
    Great brushless DC motor and controller. I bought 3 sets of these at different times and all were similar in quality and work with no issues.
    From: Vince Falasca | Date: 22/01/2019
    Was this review helpful? Yes No (0/0)
    Great Brushless DC Motor
    A good product from ATO, I bought this 1/2 hp (400W) 24V/48V 3000rpm brushless DC motor a week ago. I use it in a rock tumbler. It works great as both a motor and a generator.
    From: Dominic | Date: 28/02/2019
    Was this review helpful? Yes No (0/0)
    Will order 3pcs 400W BLDC motor with gearbox
    Could you give me a weight for the 400W IP54 BLDC motor with a 20:1 gearbox with and without brake? I think this motor kit is perfect for my project, will order 3pcs after info was confirmed.
    From: Eric J | Date: 22/07/2019
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, the motor is 2.4 kg, the 20:1 gearbox is 2.7 kg, and "motor + gearbox" weight is 5.1 kg.
    Will send you detailed drawing if needed.
    Can we control 2 BLDC motors via one controller?
    Can we control 2pcs 400W BLDC motors via one controller like an electric wheelchair?
    From: Alain | Date: 12/11/2019
    Was this review helpful? Yes No (0/0)
    ATO Responded
    No, it is better to use one controller to control one motor.
    Need a BLDC motor for AGV application
    We want one of your BLDC motor to use in our AGV application (automatic guided vehicle), what do you recommend?
    From: Gavin | Date: 31/08/2020
    Was this review helpful? Yes No (0/0)
    ATO Responded
    We need to know about the following, so can recommend the most suited motor:
    1. What is required motor power capacity, rated voltage, and output speed?
    2. What is the the wheel diameter?
    3. How many motors are needed for an AGV?
    4. Does the motor need to climb, what is the slope?
    5. Do you need synchronous control?
    6. Will you install wheels or track wheels?
