    1/4 hp (200W) 24V/48V Brushless DC Motor

    5 out of 5 based on 2 reviews | Write a review
    $245.39
    Cheap price 24 volt, 48 volt brushless dc motor kit for sale, 200 watt 3 phase bldc electric motor and matching controller / gearbox, 0.64 Nm holding torque, peak torque to 1.91 Nm, 3000 rpm low speed, IP54 duty continues.
    SKU: ATO-BLDC-200R3
    *
    *
    *
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 15-30 days

    Customized 200W (1/4 hp) 3000 rpm BLDC motor operates at 24V/48V DC, with lower noise and higher start torque, the matching 3 phase brushless dc motor controller is available.

    200W 24V/48V BLDC MOTOR SPECIFICATION

    Model ATO-D5BLD200
    Matched Controller Model ATO-BLD750 (Click it to see the controller specs)
    Square Flange Size 86 mm
    Weight 3 kg
    Rated Voltage 24V DC 48V DC
    Rated Current 10.42A 5.21A
    Rated Power 200 W
    Phase 3 phase
    Number of Pole 4 pairs of poles (8 poles)
    Holding Torque 0.64 Nm
    Peak Torque 1.91 Nm
    Rated Speed 3000 rpm
    No-load Speed 3300 rpm
    Efficiency 85%
    Brake Apparatus Voltage 24V DC, (Electromagnetic brake will trigger when the DC supply cuts off)
    No-load Current < 4.13A < 1.61A
    Insulation Rank F
    Protection Rank IP 54
    Motor Lead Length by Default 100 cm
    Warranty Time 12 months
    Certificate CE, ROHs, ISO/TS16949
    Temperature 0~50℃
    Humidity <90%RH (no dewing)
    NOTE: Tell us your application needs, we can customize the BLDC motor to meet your precise power, speed, voltage and current requirements.

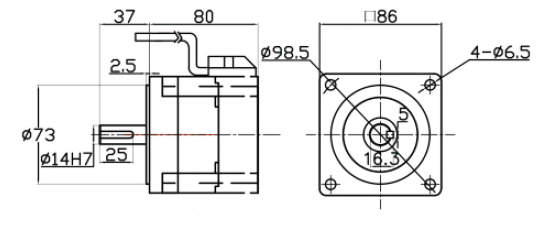

    DIMENSION (Unit=mm)

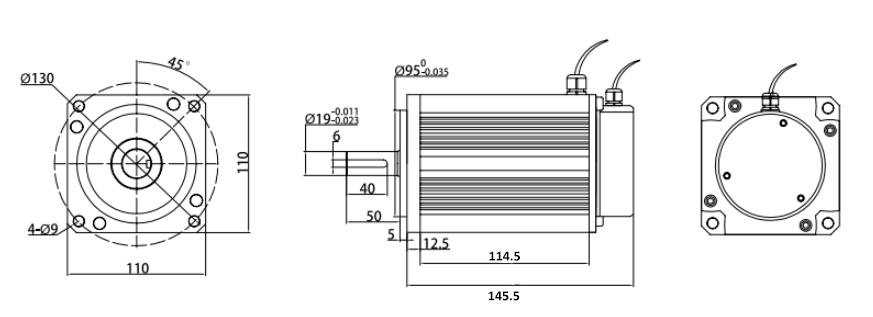

    200W BLDC motor dimension

    SPEED-TORQUE CURVE

    200W bldc motor torque speed curve

    • Instantaneous maximum torque line
      The maximum torque momentarily impacts the load when the motor is started.
      Beyond this torque, the over-current protection of the driver will cause the motor to stop.
    • Short time operation area
      The motor can run at a short time within this torque range at different speeds.
      If the operation time is too long, the motor will generate heat, which may cause the motor to stop or burn.
    • Rated operating torque line
      The rated torque of motor running at different speeds, and the motor can run for a long time at this torque.
    • Continuous operating area
      When the motor rotates at different speeds, it runs continuously in this corresponding zone.

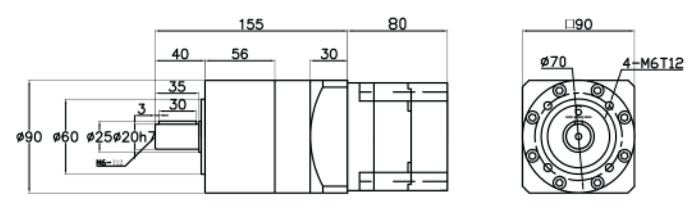

    BLDC MOTOR WITH PLANETARY GEARBOX DIMENSION (Unit=mm)

    200w bldc motor planetary gearbox dimension

    ALLOWABLE TORQUE BEING WITH GEARBOX

    Gear Ratio 4 5 7 10 16 20 25 28 35 40 50 70 80 100 125 140 175 200
    Rated Output Speed (rpm) 750 600 429 300 188 150 120 107 86 75 60 43 38 30 24 21 17 15
    Rated Output Torque (Nm) 2.4 3.1 4.3 6.1 9.8 12.2 15.3 17.1 21.4 24.5 29.9 41.9 47.9 59.9 74.8 83.8 104.8 119.8
    Peak Output Torque (Nm) 7.3 9.2 12.8 18.3 29.4 36.7 45.9 51.4 64.2 73.4 89.8 125.7 143.7 179.6 224.5 240 264 240
    Moment of nertia (kgcm2) 0.094 0.092 0.091 0.091 0.094 0.092 0.092 0.091 0.091 0.091 0.091 0.091 0.092 0.092 0.092 0.091 0.091 0.091

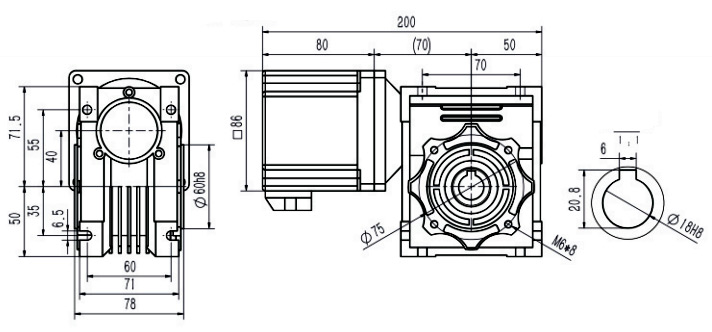

    BLDC MOTOR WITH WORM GEARBOX DIMENSION (Unit=mm)

    200w bldc motor worm gearbox dimension

    ALLOWABLE TORQUE BEING WITH GEARBOX

    (Note: The rated speed of BLDC motor is 2000rpm if matches the worm gearbox.)

    Gear Ratio 7.5 10 15 20 25 30 40 50 60 80 100
    Rated Output Speed (rpm) 267 200 133 100 80 67 50 40 33 25 20
    Rated Output Torque (Nm) 0 0 0 0 32 36 32 38 28 34 29

    TIPS:
    Brushless DC motors are applied to replace the traditional brush motors in forklifts, sweeping cars, sightseeing cars, electric buses and other battery cars, the motor capacity can be reduced by a level, the volume reduced by 2/3, the weight reduced by half and the battery capacity can be doubled, which gives the motor high climbing power with a starting torque up to 400%, you can start in the slope.

    Brushless DC motors do not require to be maintained and repaired, and its operating efficiency is about 30% higher than brush DC motors, while what is more valuable is that it uses square wave drive (intermittent power), the current duty cycle is very low (unlike brush DC motors consuming continuous current), thus providing the time for the lead-acid battery to repair the electrode, thus extending the battery capacity by about 30% compared to a brush DC motor, that is, using a brushless DC motor to drive the endurance than a brush DC motor can be doubled or so.

    1. ATO-BLD750 Controller.pdf

    2. ATO BLDC Motors Catalog.pdf

    ATO High Torque BLDC Motor Drawings & Price List

    Note:

    1. ATO highly recommends 48V motors because all models of 48V are in stock, the price is cheaper and the delivery time is shorter, only about 7 days.

    2. 24V/ 72V/ 96V motors are generally not in stock, need to be produced by the factory, which will cost more to start the production line and the delivery time will be longer, about 25 days.

    3. The prices in the table are just for your reference. If you want to get the latest quotation, please feel free to contact us.

    Model Motor Price Controller Price Rated Power Rated Speed Rated Torque Rotor Inertia Motor Weight
    (USD/Piece) (USD/Piece) (kW)  (RPM) (Nm) (Kgcm2) (Kg)
    80mm Series DC Brushless Motor
    ATO-80WDM01330 24/48/72/96V 24V: 458.24 395.52 0.41 3000 1.3 0.6 2.4
    48V: 305.49
    72/96V: 580.43
    ATO-80WDM02420 24/48/72/96V 24V: 564.53 395.52 0.5 2000 2.4 0.8 3
    48V: 376.35
    72/96V: 715.06
    ATO-80WDM02430 24/48/72/96V 24V: 529.16 395.52 0.75 3000 2.4 0.8 3
    48V: 352.77
    72/96V: 670.26
    ATO-80WDM03320 24/48/72/96V 24V: 597.68 395.52 0.69 2000 3.3 1.1 3
    48V: 398.45
    72/96V: 757.36
    ATO-80WDM03330 24/48/72/96V 24V: 639.27 395.52 1.04 3000 3.3 1.1 3
    48V: 426.18
    72/96V: 809.74
    110mm Series DC Brushless Motor
    ATO-110WDM02020 24/48/72/96V 24V: 687.38 395.52 0.4 2000 2 3.3 3.2
    48V: 458.25
    72/96V: 824.85
    ATO-110WDM02030 24/48/72/96V 24V: 745.11 395.52 0.6 3000 2 3.3 3.2
    48V: 496.74
    72/96V: 894.13
    ATO-110WDM04010 24/48/72/96V 24V: 779.86 395.52 0.4 1000 4 6.5 5.65
    48V: 519.93
    72/96V: 935.87
    ATO-110WDM04020 24/48/72/96V 24V: 788.57 395.52 0.8 2000 4 6.5 5.65
    48V: 525.71
    72/96V: 988.33
    ATO-110WDM04030 24/48/72/96V 24V: 798.63 653.05 1.3 3000 4 6.5 5.65
    48V: 532.42
    72/96V: 1001.95
    ATO-110WDM06010 24/48/72/96V 24V: 758.82 395.52 0.6 1000 6 10 6.6
    48V: 505.88
    72/96V: 956.69
    ATO-110WDM06020 24/48/72/96V 24V: 819.59 653.05 1.3 2000 6 10 6.6
    48V: 546.39
    72/96V: 1010.82
    ATO-110WDM06030 24/48/72/96V 24V: 995.94 653.05 1.9 3000 6 10 6.6
    48V: 553.28
    72/96V: 1051.23
    130mm Series DC Brushless Motor
    ATO-130WDM04010 24/48/72/96V 24V: 876.95 395.52 0.4 1000 4 10.4 6.7
    48V: 584.62
    72/96V: 1099.08
    ATO-130WDM04020 24/48/72/96V 24V: 910.67 395.52 0.8 2000 4 10.4 6.7
    48V: 607.13
    72/96V: 1104.98
    ATO-130WDM04030 24/48/72/96V 24V: 959.18 653.05 1.3 3000 4 10.4 6.7
    48V: 639.45
    72/96V: 1151.01
    ATO-130WDM06010 24/48/72/96V 24V: 987.65 395.52 0.6 1000 6 12.4 7.7
    48V: 658.43
    72/96V: 1185.17
    ATO-130WDM06020 24/48/72/96V 24V: 1012.23 653.05 1.3 2000 6 12.4 7.7
    48V: 674.82
    72/96V: 1147.19
    ATO-130WDM06030 24/48/72/96V 24V: 1047.72 653.05 1.9 3000 6 12.4 7.7
    48V: 698.48
    72/96V: 1208.34
    ATO-130WDM07710 24/48/72/96V 24V: 1060.07 395.52 0.8 1000 7.7 15.8 9.05
    48V: 706.71
    72/96V: 1257.94
    ATO-130WDM07720 24/48/72/96V 24V: 1093.21 653.05 1.6 2000 7.7 15.8 9.05
    48V: 738.65
    72/96V: 1292.64
    ATO-130WDM07730 48/72/96V 48V: 751.52 653.05 2.3 3000 7.7 15.8 9.05
    72/96V: 1337.71
    ATO-130WDM10010 24/48/72/96V 24V: 1161.55 653.05 1 1000 10 21.4 12
    48V: 784.83
    72/96V: 1396.89
    ATO-130WDM10020 24/48/72/96V 24V: 1224.36 653.05 2 2000 10 21.4 12
    48V: 816.24
    72/96V: 1371.28
    ATO-130WDM10030 48/72/96V 48V: 879.12 898.21 3.1 3000 10 21.4 12
    72/96V: 1450.55
    ATO-130WDM15010 24/48/72/96V 24V:1311.88 653.05 1.6 1000 15 32.4 12
    48V: 936.47
    72/96V: 1498.35
    ATO-130WDM15020 48/72/96V 48V: 1086.36 898.21 3.1 2000 15 32.4 12
    72/96V: 1738.17
    ATO-130WDM15030 48/72/96V 48V: 1127.54 1119.07 4.7 3000 15 32.4 12
    72/96V: 1804.64
    180mm Series DC Brushless Motor
    ATO-180WDM12010 48/72/96V 48V: 1246.31 653.05 1.3 1000 12 32.6  18.5
    72/96V: 1994.09
    ATO-180WDM12020 48/72/96V 48V: 1323.69 653.05 2.5 2000 12 32.6 18.5
    72/96V: 2117.91
    ATO-180WDM12030 48/72/96V 48V: 1398.84 898.21 3.8 3000 12 38 18.5
    72/96V: 2238.14
    ATO-180WDM16010 48/72/96V 48V: 1555.69 653.05 1.7 1000 16 55 18.6
    72/96V: 2411.32
    ATO-180WDM16020 48/72/96V 48V: 1625.36 898.21 3.4 2000 16 55 18.6
    72/96V: 2568.07
    ATO-180WDM16030 48/72/96V 48V: 1745.93 1119.07 5 3000 16 55 18.6
    72/96V: 2618.89
    ATO-180WDM25010 48/72/96V 48V: 2012.54 653.05 2.6 1000 25 55 26
    72/96V: 3179.81
    ATO-180WDM25020 48/72/96V 48V: 2274.19 1119.07 5.2 2000 25  93 26
    72/96V: 3411.26
    ATO-180WDM25030 48/72/96V 48V: 2448.58 1531.99 7.9 3000 25  93 26
    72/96V: 3672.87
    ATO-180WDM36010 48/72/96V 48V: 2644.28 898.21 3.8 1000 36 148 30
    72/96V: 3966.42
    ATO-180WDM36020 48/72/96V 48V: 2832.56 1119.07 7.5 2000 36 148 30
    72/96V: 4248.84
    ATO-180WDM36030 72/96V 72/96V: 4334.69 1885.15 11.3 3000 36 148 30
    ATO-180WDM50010 48/72/96V 48V: 3284.58 1119.07 5.2 1000 50 165 38
    72/96V: 4556.41
    ATO-180WDM50020 48/72/96V 48V: 4344.12 1531.99 10.8 2000 50 165 38
    72/96V: 5994.72
    ATO-180WDM50030 96V 96V: 6204.65 2261.84 15.7 3000 50 165 38

    ATO BLDC Motor Hall Sensor Controller Connection & Control

    In this video, ATO shows you the connection and control operation of 200W (ATO-BLDC-200R3), 300W (ATO-BLDC-300R3), 1000W (ATO-BLDC-1000R3), 1500W (ATO-BLDC-1500R3) BLDC motor with controller. After the wiring is completed, we can use the speed control knob of the controller to adjust the speed.

    How to Use Controller to Reverse and Stop the BLDC Motor

    This video mainly shows you how to use BLDC motor controller connecting with an external potentiometer to adjust the speed of the motor, to naturally/urgently stop the motor, and forward or reverse control of the motor. In many cases, we can't directly control the speed by controller, so connecting with an external potentiometer is a good choice. Similarly, we can stop the motor or rotate the motor in the opposite direction without approaching the controller.

    BLDC Motor Controller Control Speed with Analog Signal (5V)

    The video shows how to use voltage analog signal to control the speed of ATO BLDC motor. Therefore, we can control the speed of BLDC motor in the same way with the 0~5V signal sent by PLC or microcontroller.
