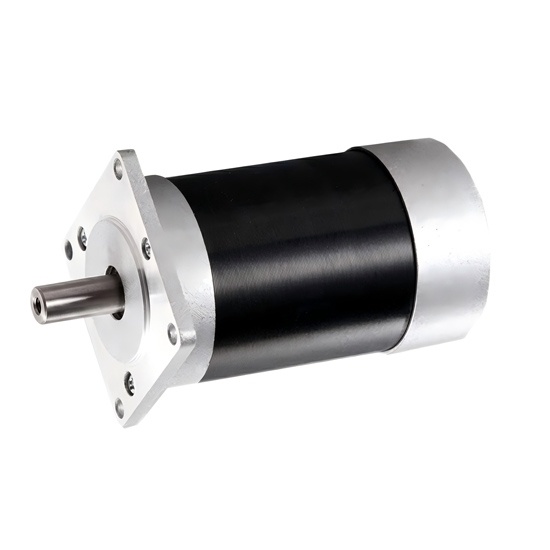

    150W BLDC Motor Kit, 12V/24V, 0.48Nm, 3000rpm

    5 out of 5 based on 2 reviews | Write a review
    $203.56
    Factory price 150 watt BLDC motor kit for sale online. 3 phase electric motor combines with controller, 12V or 24V DC voltage can be chosen. 3000 rpm rated speed, 0.48Nm rated torque and peak torque of 1.43Nm. Brushless DC motor add with brake, paired with gearbox is customizable.
    SKU: ATO-BLDC-150R3
    *
    *
    *
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    150W BLDC motor & BLDC motor controller for sale at lower price, 12 volt, 48 volt working voltage, IP54 protection grade, 3000 rpm rated speed. The 3 phase brushless DC motor kit designed for electric car application. In general, it would be more cost-effective to buy a complete set of our motors (brushless dc motor + controller + gearbox).

    FEATURES

    • High performance and low consumption.
      150W BLDC motor is three phase electric motor, which especially suited for application requiring higher efficiency and power density.
    • Wide application range and good control effect.
      BLDC motor works with a matching controller (ATO-BLD750) may achieve simple to complex control, turn from CW to CCW, and meet various communication requirements (RS232, RS485, CAN, etc.). BLDC controller can be controlled through 0-5VDC analog signal to adjust the speed.
    • Wide control speed torque range.
      Brushless dc motor works with a gearbox (choose planetary gearbox with gear ratio from 4:1 to 200:1 or worm gearbox with gear ratio from 7.5:1 to 100:1) effectively reduce the motor's speed and moment of inertia to increase torque in your application, because the gearbox can control the start/stop and change speed in time.
    • Low noise and smooth operation.
      Brushless dc motor has no brushes, no sparks will be generated during operation, which greatly reduces friction.
    • Good protection performance and continuous duty (24/7).
      150W BLDC motor kit adopts a new type of sealing device, which has good protection performance and strong adaptability to the environment, and works continuously in harsh environments such as corrosion and humidity.

    SPECIFICATION

    Model ATO-D2BLD150-30S
    Matched Controller Model ATO-BLD750 (Click it to see the controller specs)
    Square Flange Size 60 mm
    Weight 3 kg
    Rated Voltage 12V DC 24V DC
    Rated Current 15.63 A 7.81A
    Rated Power 150 W
    Phase 3 phase
    Number of Pole 4 pairs of poles (8 poles)
    Holding Torque 0.48 Nm
    Peak Torque 1.43 Nm
    Rated Speed 3000 rpm
    No-load Speed 3300 rpm
    Efficiency 85%
    Brake Apparatus Voltage 24V DC, (Electromagnetic brake will trigger when the DC supply cuts off)
    Brake size: Φ56*32mm
    No-load Current < 5.2A < 3.31A
    Insulation Rank F
    Protection Rank IP 54
    Motor Lead Length by Default 100 cm
    Warranty Time 12 months
    Certificate CE, ROHs, ISO/TS16949
    Temperature 0~50℃
    Humidity <90%RH (no dewing)
    What Parameters of ATO BLDC motor Can Be Customized?
    Power Yes
    Voltage Yes
    Speed Yes
    Shaft Yes
    Motor Length Yes
    Motor Lead Yes

    DIMENSION (Unit=mm)

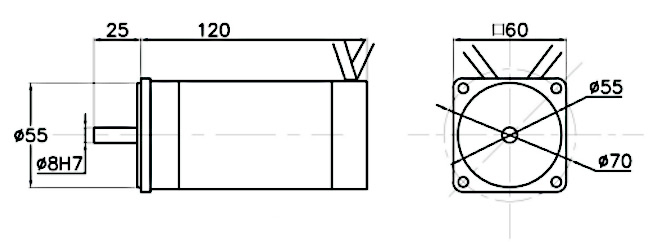

    150w brushless dc motor size

    SPEED-TORQUE CURVE

    150W bldc motor torque speed curve

    • Instantaneous maximum torque line
      The maximum torque momentarily impacts the load when the motor is started.
      Beyond this torque, the over-current protection of the driver will cause the motor to stop.
    • Short time operation area
      The motor can run at a short time within this torque range at different speeds.
      If the operation time is too long, the motor will generate heat, which may cause the motor to stop or burn.
    • Rated operating torque line
      The rated torque of motor running at different speeds, and the motor can run for a long time at this torque.
    • Continuous operating area
      When the motor rotates at different speeds, it runs continuously in this corresponding zone.

    BLDC MOTOR WITH PLANETARY GEARBOX DIMENSION (unit=mm)

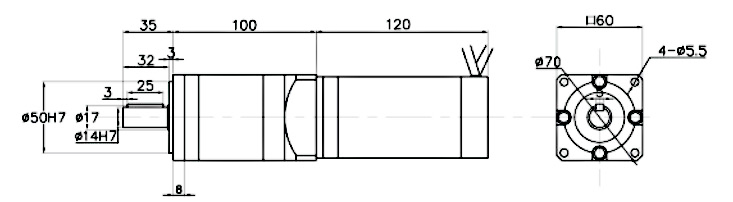

    150w bldc motor with planetary gearbox dimension

    ALLOWABLE TORQUE BEING WITH GEARBOX

    Gear Ratio 4 6 7 10 16 20 25 28 35 40 50 70 80 100 125 140 175 200
    Rated Output Speed (rpm) 750 600 429 300 188 150 120 107 86 75 60 43 38 30 24 21 17 15
    Rated Output Torque (Nm) 1.8 2.3 3.2 4.6 7.2 9 11.2 12.6 15.7 18 22.4 31.4 34.4 37.5 41 37.5 41 37.5
    Peak Output Torque (Nm) 5.5 6.9 9.6 13.85 21.5 26.9 33.7 37.7 47.1 53.9 66 43 75 75 82 75 82 75
    Moment of Nertia (kgcm2) 0.094 0.092 0.091 0.091 0.094 0.092 0.092 0.091 0.091 0.091 0.091 0.091 0.092 0.092 0.092 0.091 0.091 0.091

    BLDC MOTOR WITH WORM GEARBOX DIMENSION (unit=mm)

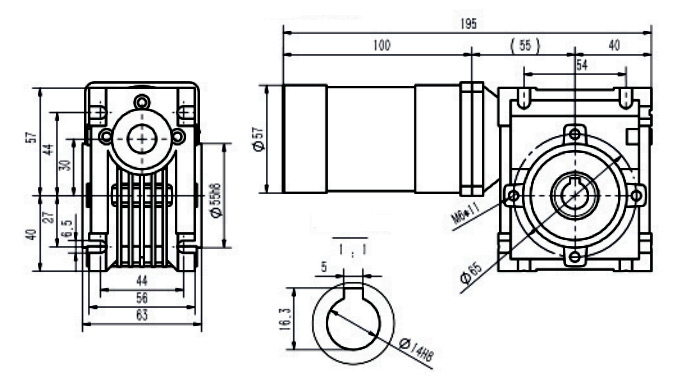

    150w bldc motor with worm gearbox dimension

    ALLOWABLE TORQUE BEING WITH GEARBOX

    (Note: The rated speed of BLDC motor is 2000rpm if matches the worm gearbox.)

    Gear Ratio 7.5 10 15 20 25 30 40 50 60 80
    Rated Output Speed (rpm) 267 200 133 100 80 67 50 40 33 25
    Rated Output Torque (Nm) 4.3 5.7 8.6 11.2 13.6 15.9 17 12 17 12

    TIPS: How to select a gearbox for 150W brushless DC motor?

    1. First of all, we must understand that the rated torque of our BLDC motor should be less than the rated output torque of the gearbox, otherwise, the deceleration opportunity will be fixed load.
    2. Secondly, the speed reduction ratio of our gearbox should not be too small. The judgment method is that the rated power of brushless motor multiplied by the speed reduction ratio is greater than the load torque.
    3. Finally, when the torque of the gearbox meets the design requirements, the accuracy control should also meet the design requirements. Because of this, the two are used together. The motor is usually sold together with the gearbox, but sometimes when one of them breaks down, they have to buy again, either the same as the original, or according to the original specific speed and other parameters.

    1. ATO-BLD750 Controller.pdf

    2. ATO BLDC Motors Catalog.pdf

    ATO High Torque BLDC Motor Drawings & Price List

    Note:

    1. ATO highly recommends 48V motors because all models of 48V are in stock, the price is cheaper and the delivery time is shorter, only about 7 days.

    2. 24V/ 72V/ 96V motors are generally not in stock, need to be produced by the factory, which will cost more to start the production line and the delivery time will be longer, about 25 days.

    3. The prices in the table are just for your reference. If you want to get the latest quotation, please feel free to contact us.

    Model Motor Price Controller Price Rated Power Rated Speed Rated Torque Rotor Inertia Motor Weight
    (USD/Piece) (USD/Piece) (kW) (RPM) (Nm) (Kgcm2) (Kg)
    80mm Series DC Brushless Motor
    ATO-80WDM01330 24/48/72/96V 24V: 458.24 395.52 0.41 3000 1.3 0.6 2.4
    48V: 305.49
    72/96V: 580.43
    ATO-80WDM02420 24/48/72/96V 24V: 564.53 395.52 0.5 2000 2.4 0.8 3
    48V: 376.35
    72/96V: 715.06
    ATO-80WDM02430 24/48/72/96V 24V: 529.16 395.52 0.75 3000 2.4 0.8 3
    48V: 352.77
    72/96V: 670.26
    ATO-80WDM03320 24/48/72/96V 24V: 597.68 395.52 0.69 2000 3.3 1.1 3
    48V: 398.45
    72/96V: 757.36
    ATO-80WDM03330 24/48/72/96V 24V: 639.27 395.52 1.04 3000 3.3 1.1 3
    48V: 426.18
    72/96V: 809.74
    110mm Series DC Brushless Motor
    ATO-110WDM02020 24/48/72/96V 24V: 687.38 395.52 0.4 2000 2 3.3 3.2
    48V: 458.25
    72/96V: 824.85
    ATO-110WDM02030 24/48/72/96V 24V: 745.11 395.52 0.6 3000 2 3.3 3.2
    48V: 496.74
    72/96V: 894.13
    ATO-110WDM04010 24/48/72/96V 24V: 779.86 395.52 0.4 1000 4 6.5 5.65
    48V: 519.93
    72/96V: 935.87
    ATO-110WDM04020 24/48/72/96V 24V: 788.57 395.52 0.8 2000 4 6.5 5.65
    48V: 525.71
    72/96V: 988.33
    ATO-110WDM04030 24/48/72/96V 24V: 798.63 653.05 1.3 3000 4 6.5 5.65
    48V: 532.42
    72/96V: 1001.95
    ATO-110WDM06010 24/48/72/96V 24V: 758.82 395.52 0.6 1000 6 10 6.6
    48V: 505.88
    72/96V: 956.69
    ATO-110WDM06020 24/48/72/96V 24V: 819.59 653.05 1.3 2000 6 10 6.6
    48V: 546.39
    72/96V: 1010.82
    ATO-110WDM06030 24/48/72/96V 24V: 995.94 653.05 1.9 3000 6 10 6.6
    48V: 553.28
    72/96V: 1051.23
    130mm Series DC Brushless Motor
    ATO-130WDM04010 24/48/72/96V 24V: 876.95 395.52 0.4 1000 4 10.4 6.7
    48V: 584.62
    72/96V: 1099.08
    ATO-130WDM04020 24/48/72/96V 24V: 910.67 395.52 0.8 2000 4 10.4 6.7
    48V: 607.13
    72/96V: 1104.98
    ATO-130WDM04030 24/48/72/96V 24V: 959.18 653.05 1.3 3000 4 10.4 6.7
    48V: 639.45
    72/96V: 1151.01
    ATO-130WDM06010 24/48/72/96V 24V: 987.65 395.52 0.6 1000 6 12.4 7.7
    48V: 658.43
    72/96V: 1185.17
    ATO-130WDM06020 24/48/72/96V 24V: 1012.23 653.05 1.3 2000 6 12.4 7.7
    48V: 674.82
    72/96V: 1147.19
    ATO-130WDM06030 24/48/72/96V 24V: 1047.72 653.05 1.9 3000 6 12.4 7.7
    48V: 698.48
    72/96V: 1208.34
    ATO-130WDM07710 24/48/72/96V 24V: 1060.07 395.52 0.8 1000 7.7 15.8 9.05
    48V: 706.71
    72/96V: 1257.94
    ATO-130WDM07720 24/48/72/96V 24V: 1093.21 653.05 1.6 2000 7.7 15.8 9.05
    48V: 738.65
    72/96V: 1292.64
    ATO-130WDM07730 48/72/96V 48V: 751.52 653.05 2.3 3000 7.7 15.8 9.05
    72/96V: 1337.71
    ATO-130WDM10010 24/48/72/96V 24V: 1161.55 653.05 1 1000 10 21.4 12
    48V: 784.83
    72/96V: 1396.89
    ATO-130WDM10020 24/48/72/96V 24V: 1224.36 653.05 2 2000 10 21.4 12
    48V: 816.24
    72/96V: 1371.28
    ATO-130WDM10030 48/72/96V 48V: 879.12 898.21 3.1 3000 10 21.4 12
    72/96V: 1450.55
    ATO-130WDM15010 24/48/72/96V 24V:1311.88 653.05 1.6 1000 15 32.4 12
    48V: 936.47
    72/96V: 1498.35
    ATO-130WDM15020 48/72/96V 48V: 1086.36 898.21 3.1 2000 15 32.4 12
    72/96V: 1738.17
    ATO-130WDM15030 48/72/96V 48V: 1127.54 1119.07 4.7 3000 15 32.4 12
    72/96V: 1804.64
    180mm Series DC Brushless Motor
    ATO-180WDM12010 48/72/96V 48V: 1246.31 653.05 1.3 1000 12 32.6  18.5
    72/96V: 1994.09
    ATO-180WDM12020 48/72/96V 48V: 1323.69 653.05 2.5 2000 12 32.6 18.5
    72/96V: 2117.91
    ATO-180WDM12030 48/72/96V 48V: 1398.84 898.21 3.8 3000 12 38 18.5
    72/96V: 2238.14
    ATO-180WDM16010 48/72/96V 48V: 1555.69 653.05 1.7 1000 16 55 18.6
    72/96V: 2411.32
    ATO-180WDM16020 48/72/96V 48V: 1625.36 898.21 3.4 2000 16 55 18.6
    72/96V: 2568.07
    ATO-180WDM16030 48/72/96V 48V: 1745.93 1119.07 5 3000 16 55 18.6
    72/96V: 2618.89
    ATO-180WDM25010 48/72/96V 48V: 2012.54 653.05 2.6 1000 25 55 26
    72/96V: 3179.81
    ATO-180WDM25020 48/72/96V 48V: 2274.19 1119.07 5.2 2000 25  93 26
    72/96V: 3411.26
    ATO-180WDM25030 48/72/96V 48V: 2448.58 1531.99 7.9 3000 25  93 26
    72/96V: 3672.87
    ATO-180WDM36010 48/72/96V 48V: 2644.28 898.21 3.8 1000 36 148 30
    72/96V: 3966.42
    ATO-180WDM36020 48/72/96V 48V: 2832.56 1119.07 7.5 2000 36 148 30
    72/96V: 4248.84
    ATO-180WDM36030 72/96V 72/96V: 4334.69 1885.15 11.3 3000 36 148 30
    ATO-180WDM50010 48/72/96V 48V: 3284.58 1119.07 5.2 1000 50 165 38
    72/96V: 4556.41
    ATO-180WDM50020 48/72/96V 48V: 4344.12 1531.99 10.8 2000 50 165 38
    72/96V: 5994.72
    ATO-180WDM50030 96V 96V: 6204.65 2261.84 15.7 3000 50 165 38
    Existing reviews of 150W BLDC Motor Kit, 12V/24V, 0.48Nm, 3000rpm
    Rated power of 150W BLDC motor kit
    For your 150W BLDC motor, can I order a 12V DC motor and provide 24V DC power to its controller?
    From: Karen | Date: 28/03/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, you can, but we recommend matching, that is, the rated voltage of the motor is 12VDC, and then provide 12VDC to the controller.
    Complete 150W BLDC motor kit
    The gearbox is mounting for your 150W BLDC motor kit?
    From: Thrifty | Date: 12/04/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, if you ordered the motor along with the gear box, then they will be connected and tested in the factory before shipping out.
    Write your review for 150W BLDC Motor Kit, 12V/24V, 0.48Nm, 3000rpm
    • Only registered users can write reviews
    • Bad
    • Excellent
