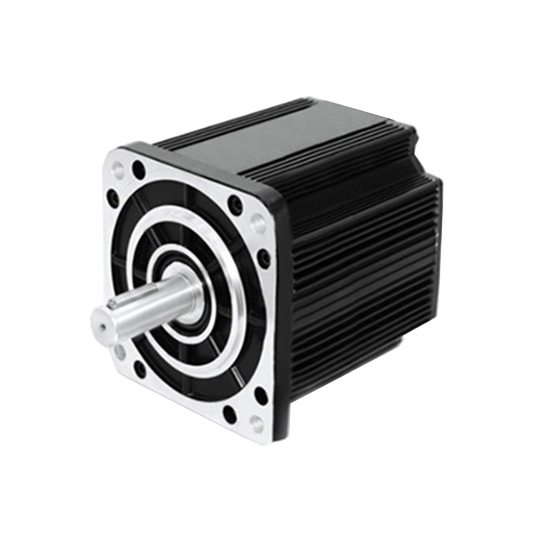

High performance 2.5kW 48V/72V/96V BLDC motor, which has a rated speed of 2000 rpm and no-load speed up to 2400 rpm. It is widely use in automatic machinery, medical institutions, electronic equiment etc..
2.5 kW BLDC MOTOR FEATURES
- IP65 rating with shaft seal.
- Complete protection from dust particles.
- Can be subjected to moist or humid environments.
- Long life and highly reliable.
- Cost-effective replacement for brush DC motors.
2.5 kW BLDC MOTOR SPECIFICATION
| Model |
ATO-180WDM12020 (Click it to see more motor specs) |
| Matched Controller Model |
ATOTH-G (Click it to see more controller specs) |
| Square Flange Size |
180 mm |
| Motor Weight |
18.5 kg |
| Rated Voltage |
48V DC |
72V DC |
96V DC |
| Rated Current |
62 A |
41 A |
31 A |
| Rated Power |
2500 W |
| Maximum Power |
6.3 kW |
| Holding Torque |
12 Nm |
| Peak Torque |
30 Nm |
| Rated Speed |
2000 rpm |
| Maximum Speed |
2400 rpm |
| Electric Potential |
48V: 20 V/Krpm, 72V: 30 V/Krpm, 96V: 40 V/Krpm |
| Brake Apparatus Voltage |
24V DC, (If 24V voltage is not connected, the motor brake) |
| Warranty Time |
12 months |
| Certificate |
CE, ROHs, ISO/TS16949 |
| Insulation Rank |
F |
| Protection Rank |
IP 65 |
| Temperature |
-20~55℃ |
| Humidity |
<90%RH (no dewing) |
NOTE: Tell us your application needs, we can customize your BLDC motor to meet your precise power, speed, voltage and current requirements.
BLDC MOTOR LINE DEFINITION
| Power Wire |
Power Line Color |
Red |
Yellow |
Blue |
| Motor Winding |
U |
V |
W |
| Feedback Wire |
Hall Line Color |
Orange and Black |
Orange |
Yellow |
Blue |
Green |
| Hall Signal Definition |
5V |
0V |
Hall A |
Hall B |
Hall C |
| Plug serial number |
1 |
2 |
3 |
4 |
5 |

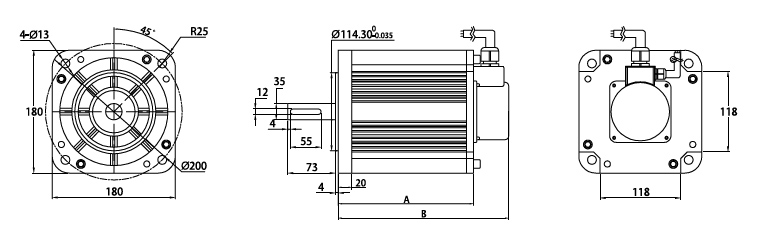

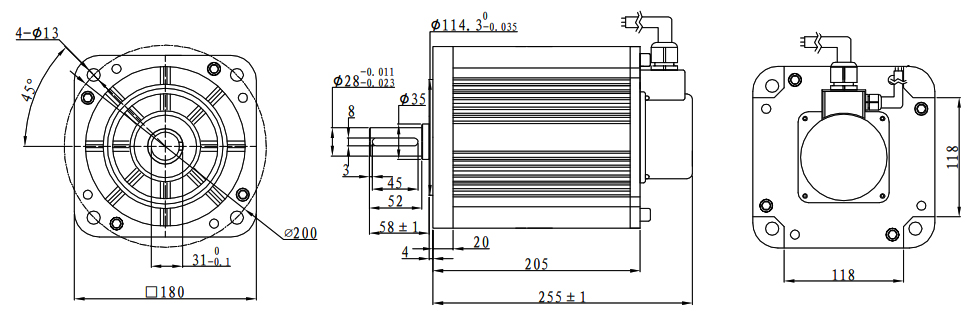

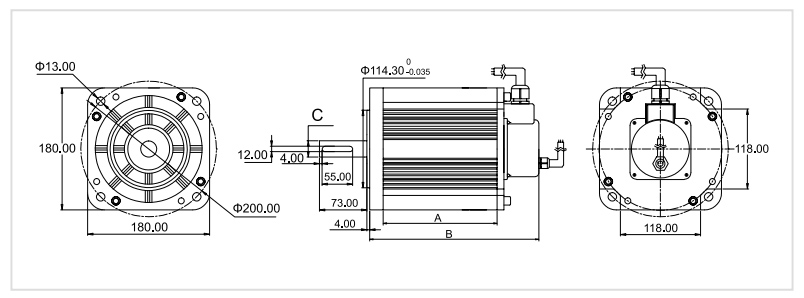

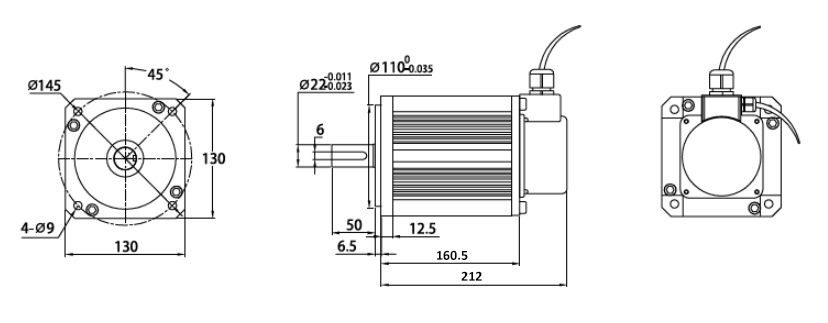

2.5 kW 48V/72V/96V BLDC MOTOR DIMENSION (Unit=mm)
LA: 205mm, LB: 255mm
MOTOR AND HAll RELATIONSHIP
TIPS:
Brushless DC (BLDC) motor consists of the motor body and drive, is a typical mechatronic products. Brushless motors are motors without brush and commutator (or slip ring), also known as no commutator motor. Brushless DC motor is a permanent magnet synchronous motor, rather than a real DC motor. Different from brush DC motor, brushless DC motor does not use the mechanical brush device, using square wave controlled permanent magnet synchronous motor and Hall sensor to replace the carbon brush commutator. Compared with the performance of the traditional DC motor, brushless DC motor has a great advantages, is today's best speed motor.
