    2.5 hp (1.9 kW) 48/72/96V Brushless DC Motor

    5 out of 5 based on 1 reviews | Write a review
    $553.28
    2.5 hp (1.9 kW) brushless DC motor with 48V/72V/96V supply voltage, 3000 rpm, 6Nm holding torque, it provides high performance, super power and brilliant efficiency. Brushless design for long periods of operation with best price.
    SKU: ATO-BLDC-1900R3
    *
    *
    *
    *
    Free shipping
    Delivery date: 15-20 days

    110mm square flange size brushless dc motor is 2.5 hp (1.9kW), 48V, 72V, 96V, with 3000 rpm rated speed and max speed up to 3600 rpm. It is widely use in automatic machinery, medical institutions, electronic equiment etc..

    2.5 HP (1.9kW) BLDC MOTOR FEATURES

    • IP54 rating with shaft seal.
    • Complete protection from dust particles.
    • Can be subjected to moist or humid environments.
    • Long life and highly reliable.
    • Cost-effective replacement for brush DC motors.

    2.5 HP (1.9kW) BLDC MOTOR SPECIFICATION

    Model ATO-110WDM06030 (Click it to see more motor specs)
    Matched Controller Model ATOTH-G (Click it to see more controller specs)
    Square Flange Size 110 mm
    Motor Weight 6.6 kg
    Rated Voltage 24V DC 48V DC 72V DC 96V DC
    Rated Current 98.2 A 44 A 32.7 A 22 A
    Rated Power 2.5 hp (1.9 kW)
    Maximum Power 5.7 kW
    Holding Torque 6 Nm
    Peak Torque 18 Nm
    Rated Speed 3000 rpm
    Maximum Speed 3600 rpm
    Electric Potential 48V: 13.3 V/Krpm, 72V: 20.0 V/Krpm, 96V: 26.7 V/Krpm
    Brake Apparatus Voltage 24V DC, (If 24V voltage is not connected, the motor brake)
    Warranty Time 12 months
    Certificate CE, ROHs, ISO/TS16949
    Insulation Rank F
    Protection Rank IP54
    Temperature -20~55℃
    Humidity <90%RH (no dewing)

    NOTE: Tell us your application needs, we can customize your BLDC motor to meet your precise power, speed, voltage and current requirements.

    BLDC MOTOR LINE DEFINITION

    Power Wire Power Line Color Red Yellow Blue
    Motor Winding U V W
    Feedback Wire Hall Line Color Orange and Black Orange Yellow Blue Green
    Hall Signal Definition 5V 0V Hall A Hall B Hall C
    Plug serial number 1 2 3 4 5

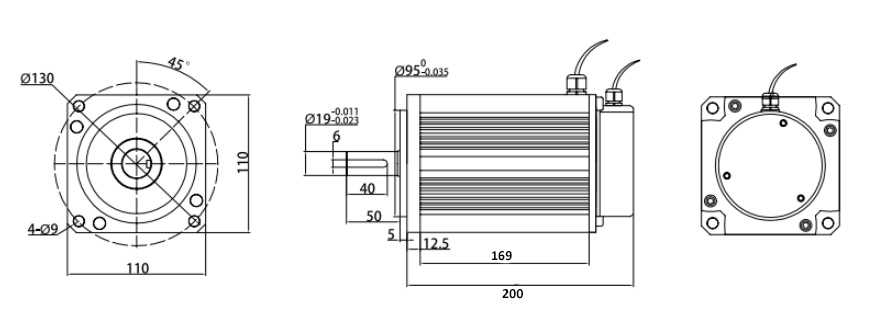

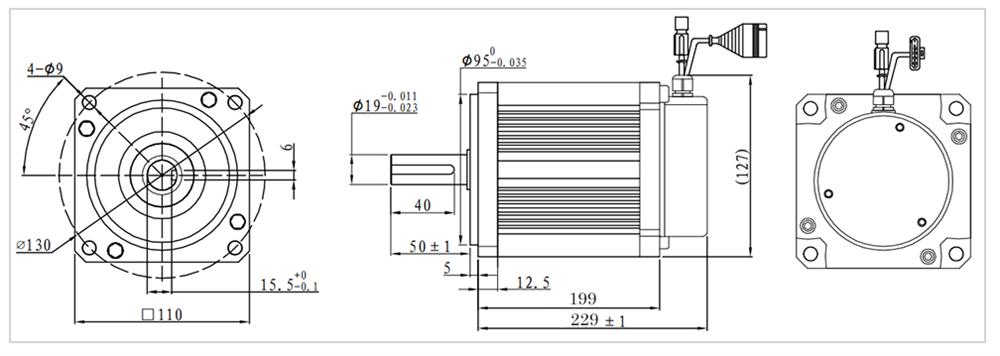

     24V/48V/72V/96V BLDC MOTOR DIMENSION (Unit=mm)

    110 mm bldc motor dimension

    LA=199mm, LB=229mm

     MOTOR AND HAll RELATIONSHIP

    BLDC motor and hall relationship

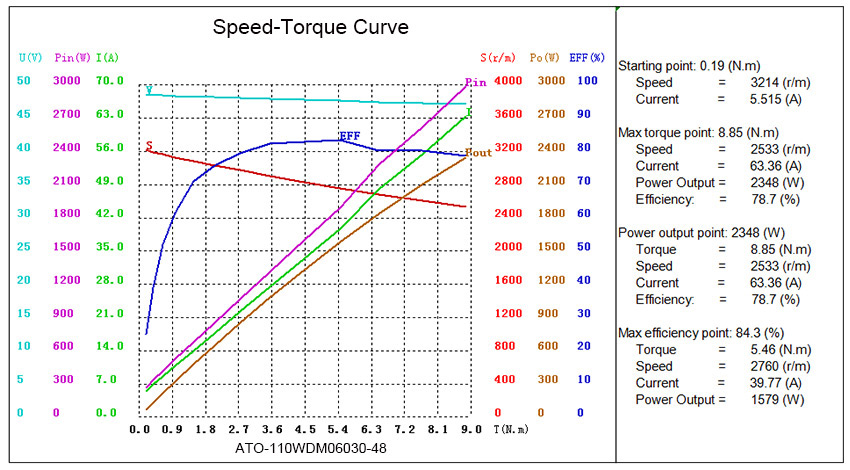

    48V BLDC MOTOR SPEED-TORQUE CURVE

    ATO-110WDM06030-48 speed torque curve

    TIPS:

    The rotor position detector mounted on the motor shaft is an important part of the brushless DC motor. It determines the moment when the armature phase winding starts to energize. Its role is equivalent to the general brushless DC motor. Changing the timing (phase) of the position detector signal is equivalent to changing the position of the brush in space in the DC motor, which has a great influence on the characteristics of the brushless DC motor.

    There are many types of position detectors, which usually include a stationary set of detector elements and a position signal generator that rotates with the rotor of the motor. In a position detector consisting of Hall elements, the Hall element is the sensing element, and the motor rotor pole itself is the position signal former. In other structures, such as electromagnetic induction, photoelectric, and proximity switches, a notched disk is often used as the position signal former. For example, in the photoelectric type, the gap is used to make the light irradiate the photocell to generate a signal. In the electromagnetic induction mode, the gap is used to change the magnetic circuit of the open transformer so as to generate the electromotive force in the detection coil.

    Wiring ATO High Torque BLDC Motor With Controller
