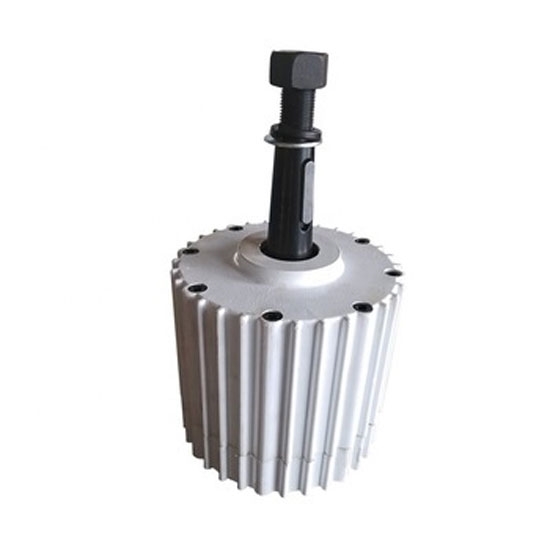

    2 kW 48v/120v/220v Alternator, 3 Phase

    $1,051.53
    High efficiency alternator generator in low price, 2 kW best alternator for wind turbine, three phase, rated voltage can choose 48V/96V/120V/220V, it can can significantly extend battery life.
    SKU: ATO-PMG-2kW
    *
    *
    Delivery date: 6-12 days

    Long service life of 2000 watt low rpm  alternator generator, 48 volt alternator, 3 phase, small size, light weight and high power.

    Note: Special rated voltage and speed can be customized, please contact us.

    Specification:

    Model ATO-PMG-2kW
    Rated Power 2000W
    Max Power 2500W
    Rated Voltage 48v/96v/120v/220v
    Rated Speed 500r/m
    Net Weight 18kg
    Output Current AC
    Start Torque 0.78Nm
    Rated Torque 31.8 Nm
    Synchronous Generator Phase 3 Phase
    Insulation Class F
    Service Life More Than 20 years
    Bearing HRB or for your order
    Shaft Material Iron
    Shell Material Aluminium Alloy
    Permanent Magnet Material Rare Earth NdFeB
    Protection Grade IP54
    Lubrication Lubrication Grease
    Working Temperature -40℃ - 80 ℃

    Features

    • Gearless, direct drive, low RPM permanent magnet generator.
    • Low start up speed due to low cogging and resistive torque design.
    • High standard, quality components for use in harsh and extreme environments for wind turbines.
    • High efficiency and Low mechanical resistance energy loss.
    • Excellent heat dissipation due to the Aluminium alloy outer frame and special internal structure.
    • High strength from the specially desy selecign structure and fully heat treatment aluminium.
    • Generator is designed using speciallted material and treated to resist corrosion and oxidation.
    • Designed for reliable and long operational lifetime under long-term full output.

    Tips: How to save energy in permanent magnet generators?

    The rare earth permanent magnet synchronous generator is based on the asynchronous motor, and the inner side of the rotor side cage is embedded with rare earth magnetic steel. From the rated efficiency of the single motor of the traction motor, the asynchronous motor is 90%-92%, while the permanent magnet synchronous motor is 95%-97%, which is 4%-6% higher than the asynchronous motor. The main reason is that the rotor of the rare earth permanent magnet synchronous motor does not pass current, so the rotor has almost no loss compared with the asynchronous motor.

    In addition, the permanent magnet synchronous generator loss is only about 50% of the asynchronous motor. The main reason is: First, the permanent magnet synchronous generator stator copper loss and iron loss are significantly lower than the asynchronous motor, and its unique stator iron loss (Inertial operation) is also significantly lower than the rotor loss unique to the asynchronous generator; second, the asynchronous motor is usually air-cooled, and the permanent magnet synchronous motor can be made fully enclosed due to the low loss, which in turn makes the machine Loss (wind loss) is greatly reduced.
