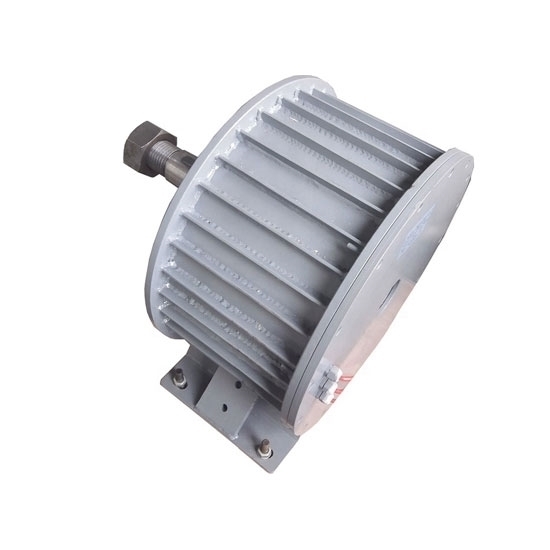

4 kW 120v/220v Alternator, 3 Phase

$3,009.23

Buy cheap price permanent magnet generator for wind turbine, 3 phase, 120V or 220V alternator 4000w, max power is 6600 watt, rated speed 300rpm, rated torque 99.6Nm, other rated voltage and speed can be customized.

Rated Voltage *
Base *

SKU: ATO-PMG-4kW

Qty:

30-day Returns

Delivery date: 6-12 days

Overview

Manufacturer price 4 kW alternator generator has a long service life, three phase, rated voltage can select 96V, 120V or 220V, permanent magnet generator uses self-starting regulator without external excitation power supply.

Note: Special rated voltage and speed can be customized, please contact us.

Specification:

Model	ATO-PMG-4kW
Rated Power	4000W
Max Power	6600W
Rated Voltage	96v/120v/220v
Rated Speed	300r/m
Net Weight	80kg
Output Voltage	AC
Start Torque	1.03Nm
Rated Torque	99.6Nm
Synchronous Generator Phase	3 Phase
Insulation Class	F
Service Life	More Than 20 years
Bearing	HRB or for your order
Shaft Material	Iron
Shell Material	Carbon Steel
Permanent Magnet Material	Rare Earth NdFeB
Protection Grade	IP54
Lubrication	Lubrication Grease
Working Temperature	-40℃ - 80 ℃

Features

Gearless, direct drive, low RPM permanent magnet generator.
Low start up speed due to low cogging and resistive torque design.
High standard, quality components for use in harsh and extreme environments for wind turbines.
High efficiency and Low mechanical resistance energy loss.
Excellent heat dissipation due to the Aluminium alloy outer frame and special internal structure.
High strength from the specially desy selecign structure and fully heat treatment aluminium.
Generator is designed using speciallted material and treated to resist corrosion and oxidation.
Designed for reliable and long operational lifetime under long-term full output.
