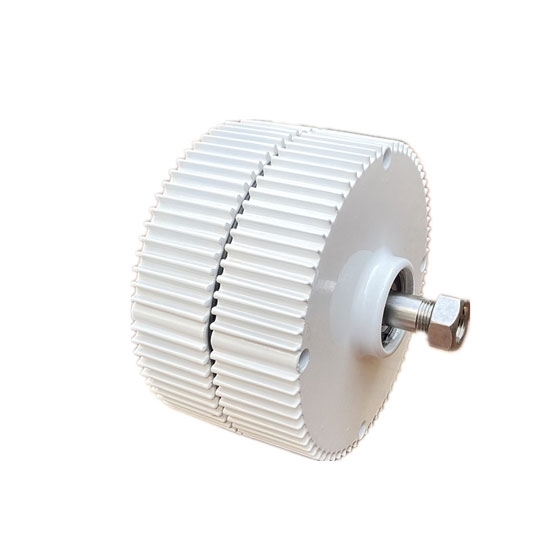

    400W 12v/24v/48v Alternator, 3 Phase

    5 out of 5 based on 1 reviews | Write a review
    Three phase alternator for vertical or horizontal wind turbine, 400W permanent magnet alternator rated voltage 12/24V/48V for option, rated speed is 600rpm, low rpm alternator and high efficiency.
    SKU: ATO-PMG-400W
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    12/24/48 volt permanent magnet alternator for sale, 3 phase, rated power 400 watt, max power 435W, rated rotated speed 600r/m, AC output curerent.

    Note: Special rated voltage and speed can be customized, please contact us.


    Model ATO-PMG-NE400WM
    Rated Power 400W
    Max Power 445W
    Rated Voltage 12v/24v/48v
    Rated Speed 800rpm/min
    Net Weight 4.5kg
    Output Voltage AC
    Rated Torque 5 Nm
    Max. Starting Torque 0.35 Nm
    Synchronous Generator Phase 3 Phase
    Insulation Class F
    Service Life More Than 20 years
    Bearing HRB or for your order
    Shaft Material Stainless Steel
    Shell Material Aluminium Alloy
    Permanent Magnet Material Rare Earth NdFeB
    Protection Grade IP54
    Lubrication Lubrication Grease
    Working Temperature -40℃ - 80 ℃

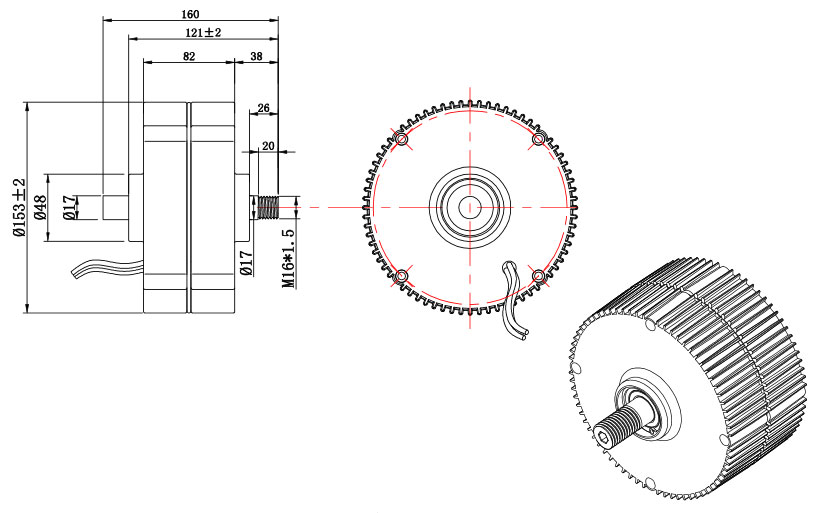

    Double Axis Alternator Dimension (unit: mm)
    400W generator dimension

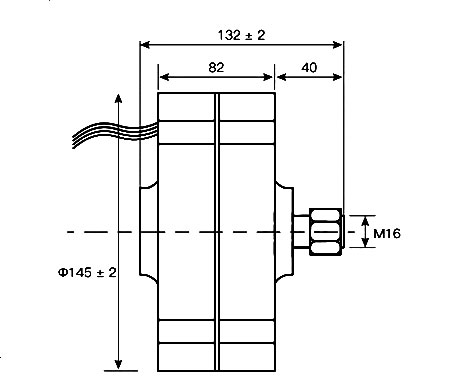

    Single Axis Alternator Dimension: (unit: mm)

    300-400W single axis alternator dimension

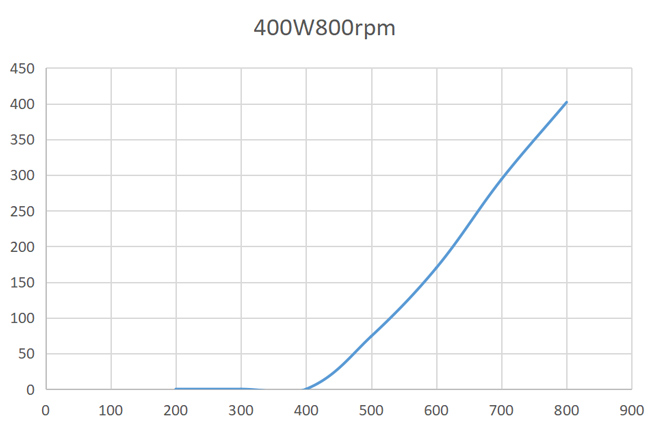

    400W 24V Alternator Power Curve

    400W 24V alternator power curve


    • Gearless, direct drive, low RPM permanent magnet generator.
    • Low start up speed due to low cogging and resistive torque design.
    • High standard, quality components for use in harsh and extreme environments for wind turbines.
    • High efficiency and Low mechanical resistance energy loss.
    • Excellent heat dissipation due to the Aluminium alloy outer frame and special internal structure.
    • High strength from the specially desy selecign structure and fully heat treatment aluminium.
    • Generator is designed using speciallted material and treated to resist corrosion and oxidation.
    • Designed for reliable and long operational lifetime under long-term full output.

    Tips: How does a permanent magnet generator generate electricity?

    A permanent magnet generator is a power generation device that converts mechanical energy converted from thermal energy into electrical energy. The rotor of the permanent magnet generator is made of ferromagnetic ferrite and has no rotor coil. When the rotor is rotated by an external force, it is equivalent to the stator coil cutting magnetic lines of force, generating induced voltage to generate electricity.
    The permanent magnet generator can maintain its magnetic field without external energy, but it also makes it difficult to adjust and control the magnetic field from the outside. These limits the range of applications of permanent magnet generators. However, with the rapid development of control technologies for power electronic devices such as MOSFETs and IGBTTs, permanent magnet generators do not require magnetic field control in application and only perform motor output control. The design requires the combination of NdFeB materials, power electronics and microcomputer control to make the permanent magnet generators operate under new conditions.
