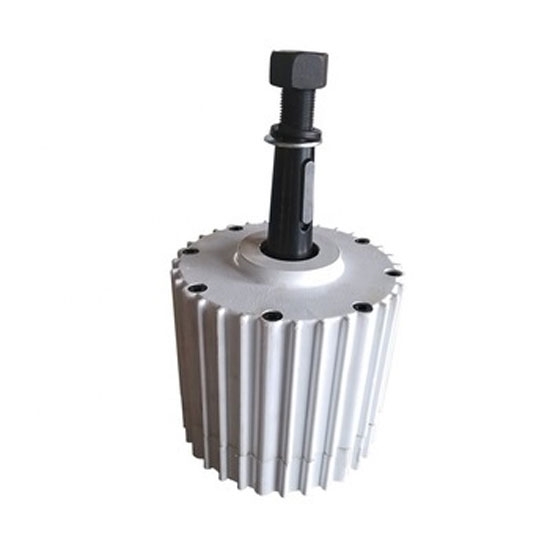

    1 kW 48v/120v Alternator, 3 Phase

    5 out of 5 based on 2 reviews | Write a review
    Alternator ac generator 1kw, rated voltage 48 volt, 98 volt or 120 volt, 3 phase, 500r/m rated rotated speed, other rated voltage and speed can be customized. Low rpm permanent magnet alternator is simple in structure and high in reliability.
    SKU: ATO-PMG-1kW
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Low price 48 volt alternator generator for sale, 1000 watt rated power, three phase, 500rpm rated speed, manufacturer direct sales.

    Note: Special rated voltage and speed can be customized, please contact us.


    Model ATO-PMG-1kW
    Rated Power 1000W
    Max Power 1500W
    Rated Voltage 48v/96v/120v
    Rated Speed 500r/m
    Net Weight 14.5kg
    Output Voltage AC
    Start Torque 0.62Nm
    Rated Torque 19.1Nm
    Synchronous Generator Phase 3 Phase
    Insulation Class F
    Service Life More Than 20 years
    Bearing HRB or for your order
    Shaft Material Iron
    Shell Material Aluminium Alloy
    Permanent Magnet Material Rare Earth NdFeB
    Protection Grade IP54
    Lubrication Lubrication Grease
    Working Temperature -40℃ - 80 ℃

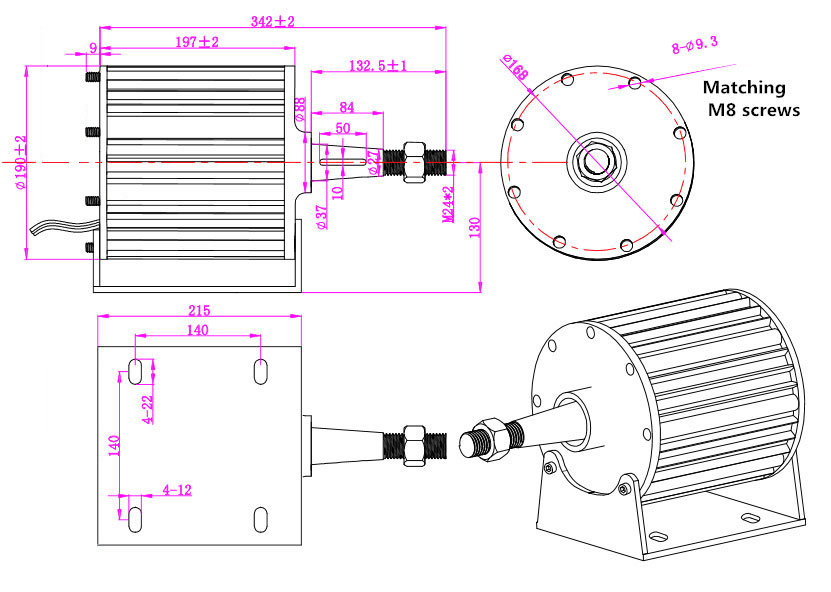

    Single axis alternator dimension

    Single shaft alternator dimensions

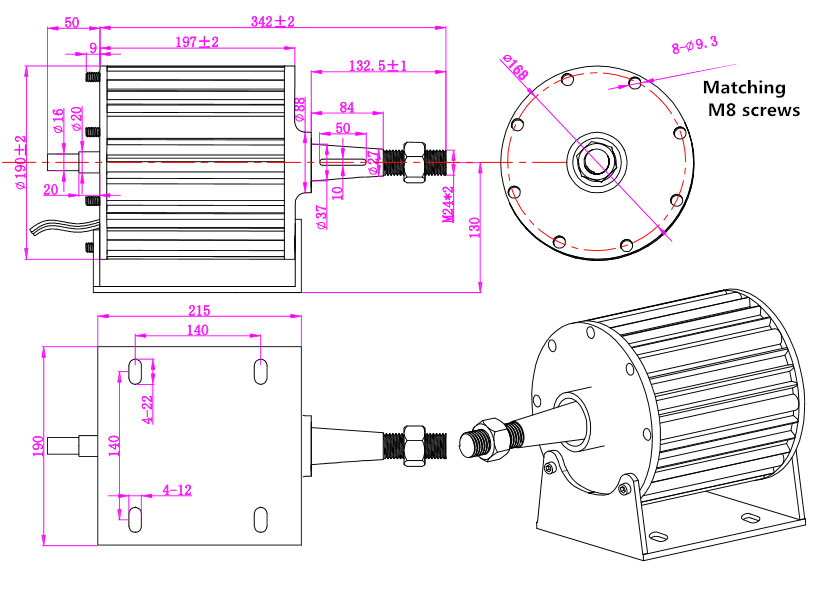

    Double axis alternator dimension: (unit: mm)
    1kW alternator dimension


    • Gearless, direct drive, low RPM permanent magnet generator.
    • Low start up speed due to low cogging and resistive torque design.
    • High standard, quality components for use in harsh and extreme environments for wind turbines.
    • High efficiency and Low mechanical resistance energy loss.
    • Excellent heat dissipation due to the Aluminium alloy outer frame and special internal structure.
    • High strength from the specially desy selecign structure and fully heat treatment aluminium.
    • Generator is designed using speciallted material and treated to resist corrosion and oxidation.
    • Designed for reliable and long operational lifetime under long-term full output.

    Tips: How does the permanent magnet generator achieve voltage regulation?

    The principle of voltage regulation of permanent magnet generator: keep the output voltage of the generator stable by changing the conduction angle of the thyristor.

    When the rotor of the generator rotates, the magnetic field generated by the permanent magnet on the rotor of the motor cuts the stator winding and induces an alternating current potential. After being rectified by the rectifier bridge, a voltage is generated, and the power supply device is operated. The voltage regulating device changes according to the voltage of the generator. The thyristor conduction angle keeps the generator output voltage stable.

    Existing reviews of 1 kW 48v/120v Alternator, 3 Phase
    What % is the efficiency?
    From: Şükrü | Date: 23/08/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    The efficiency of 1 kW alternator is ≥85%.
