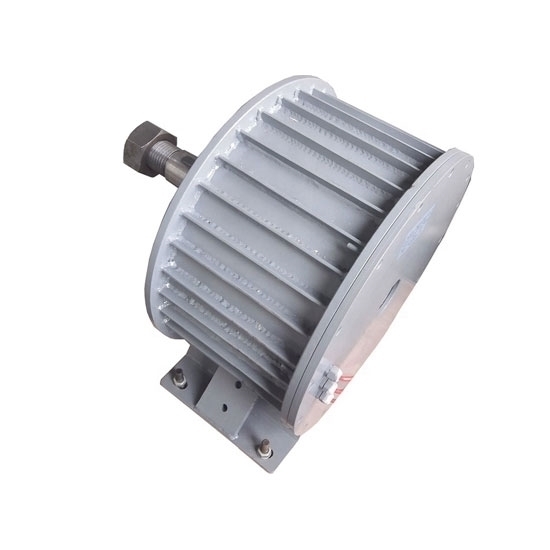

    5 kW 120v/220v Alternator, 3 Phase

    5kW 3 phase permanent magnet alternator for sale, rated voltage 96V/120V/220V/380V is optional, max power 7000W, rated torque 159.2Nm, low rpm alternator generator can be used in industrial and agricultural production, daily life and national defense technology.
    SKU: ATO-PMG-5kW
    30-day Returns
    Delivery date: 6-12 days

    Cheap price 5kw permanent magnet generator rated speed of 300rpm, 120V/220V/380V rated voltage, small size, high power and high efficiency.

    Note: Special rated voltage and speed can be customized, please contact us.


    Model ATO-PMG-5kW
    Rated Power 5000W
    Max Power 7700W
    Rated Voltage 96v/120v/220v/380v
    Rated Speed 300r/m
    Net Weight 80kg
    Output Voltage AC
    Start Torque 1.1Nm
    Rated Torque 159.2Nm
    Synchronous Generator Phase 3 Phase
    Insulation Class F
    Service Life More Than 20 years
    Bearing HRB or for your order
    Shaft Material Iron
    Shell Material Carbon Steel
    Permanent Magnet Material Rare Earth NdFeB
    Protection Grade IP54
    Lubrication Lubrication Grease
    Working Temperature -40℃ - 80 ℃

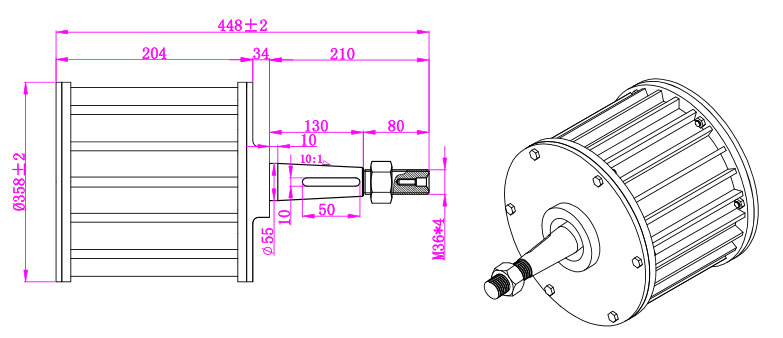

    5kW Alternator Dimension: (unit: mm)
    5kW alternator dimension


    • Gearless, direct drive, low RPM permanent magnet generator.
    • Low start up speed due to low cogging and resistive torque design.
    • High standard, quality components for use in harsh and extreme environments for wind turbines.
    • High efficiency and Low mechanical resistance energy loss.
    • Excellent heat dissipation due to the Aluminium alloy outer frame and special internal structure.
    • High strength from the specially desy selecign structure and fully heat treatment aluminium.
    • Generator is designed using speciallted material and treated to resist corrosion and oxidation.
    • Designed for reliable and long operational lifetime under long-term full output.

    Tips: What does the permanent magnet in the generator mean?

    Permanent magnets generally use permanent magnet materials as the magnetic poles of the motor. The so-called permanent magnets refer to substances like magnets that do not require an applied current to present a magnetic field. This is the magnetic pole that needs to be excited, that is, there is a magnetic field when there is an applied current. Kind is not a permanent magnet. The main function is to generate a magnetic field, which causes the winding to cut the magnetic induction line generated by the winding to generate electricity or vice versa. The motors that use the permanent magnets synchronously are synchronous motors.
