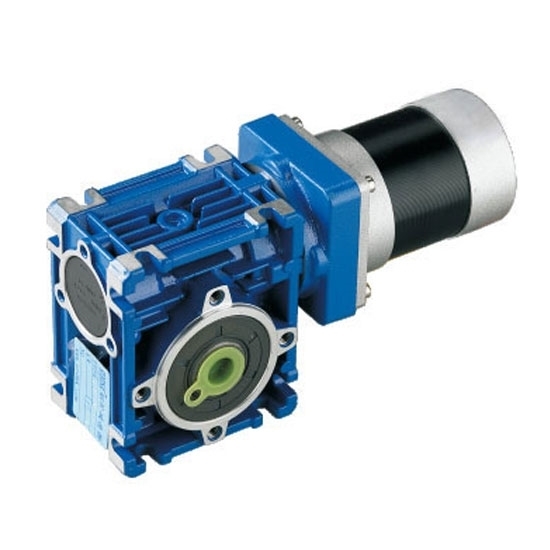

    150 W DC Worm Gear Motor, 12V/24V/48V

    5 out of 5 based on 1 reviews | Write a review
    $509.25
    Compact DC worm gear motor for sale, 150 W, 2000 rpm rated speed, works at 12V, 24V, 36V or 48V power supply, brushless design for your electric car, and selectable gear ratio from 7.5:1 to 80:1. Power, voltage, speed, shaft, motor length and lead can be customized.
    *
    *
    SKU: ATO-GEAR-W150
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Low cost 150W 3 phase DC motor with worm gearbox, 12V, 24V, 36V or 48V are available. This BLDC gear motor is best for new energy electric car, renewable energy systems, industrial equipment which require high torque density and compact occasions.

    Specification

    Motor Model ATOD2BLD150-12GN ATOD2BLD150-24GN ATOD2BLD150-36GN ATOD2BLD150-48GN
    Motor Type BLDC Motor
    Power 150W
    Voltage 12V DC 24V DC 36V DC 48V DC
    Rated Current 15.63A 7.81A 5.21A 3.91A
    No Load Current <1.5A <1.0A <0.8A <0.6A
    No Load Speed 2800 rpm
    Rated Speed 2000 rpm
    Rated Torque 0.48N·m
    Peak Torque 1.44N·m
    Motor Dimension 57mm
    Shaft Diameter 11mm
    Construction Permanent Magnet
    Direction of Rotation CW/CCW
    Certificate CCC, CE, ROSH, LVD, EMC
    Gear Ratio 7.5, 10, 15, 20, 25, 30, 40, 50, 60, 80
    Recommended Drive Model ATO-KVD2412N ATO-BLD300B ATO-BLD300B ATO-BLD300B
    What Parameters of ATO Worm Gear Motors Can Be Customized?
    Power Yes
    Voltage Yes
    Speed Yes
    Shaft Yes
    Motor Length Yes
    Motor Lead Yes

    Allowable Torque with Gear Head

    Gear Ratio 7.5 10 15 20 25 30 40 50 60 80
    Rated Output Speed (rpm) 267 200 133 100 80 67 50 40 33 25
    Rated Output Torque (Nm) 4.3 5.7 8.6 11.2 13.6 15.9 17.0 12.0 17.0 12.0

    Note:

    • This torque value is the rated output value of the reducer, not the final motor + output torque value T after reducer.
    • The formula for calculating the output torque after the final motor + reducer: T = rated torque of the motor * reduction ratio * 0.6, and T≤ rated allowable output torque value of the reducer.

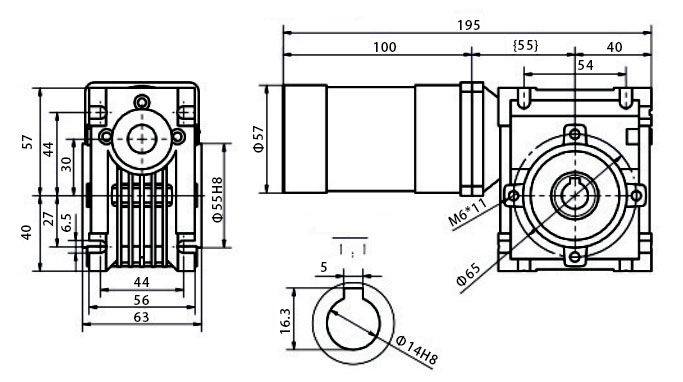

    Dimensions (Unit: mm)

    Mounting screws are included with gearhead

    Dimensions of 150 W DC Worm Gear Motor

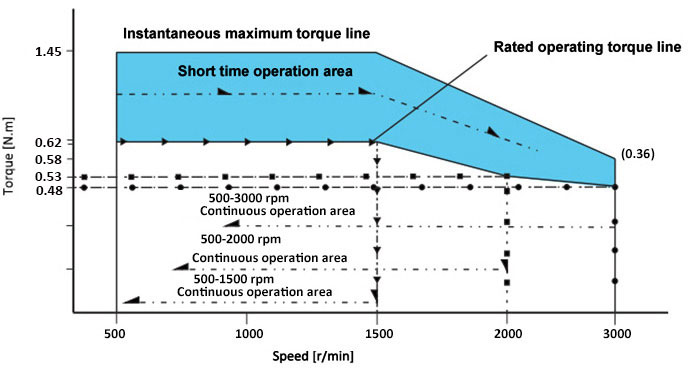

    Speed-Torque Curve

    150 W DC Worm Gear Motor Speed Torque Curve

    • Instantaneous maximum torque line
      The maximum torque momentarily impacts the load when the motor is started.
      Beyond this torque, the over-current protection of the driver will cause the motor to stop.
    • Short time operation area
      The motor can run at a short time within this torque range at different speeds.
      If the operation time is too long, the motor will generate heat, which may cause the motor to stop or burn.
    • Rated operating torque line
      The rated torque of motor running at different speeds, and the motor can run for a long time at this torque.
    • Continuous operating area
      When the motor rotates at different speeds, it runs continuously in this corresponding zone.

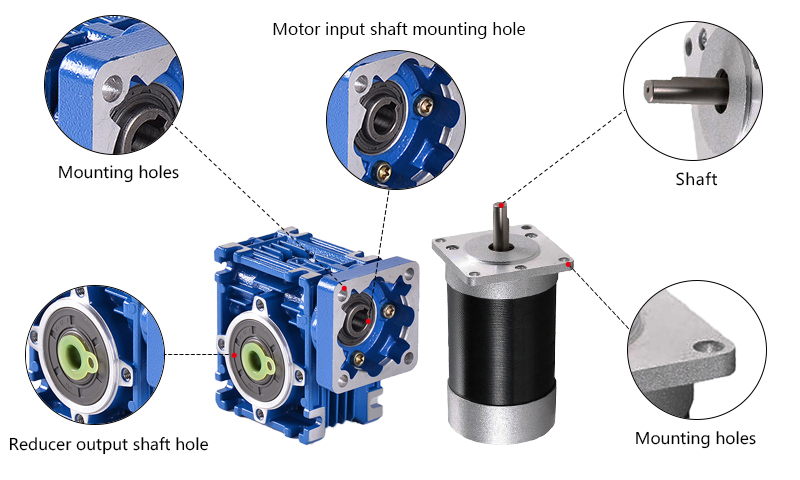

    Details

    150W DC Worm Gear Motor Details

    Tips: How to fuel worm gear motor correctly?

    The normal operation of the worm gear motor needs to rely on lubricating oil. Correct refueling can make the equipment use more reliable and have a longer service life. When the oil is consumed, it should be replenished in time to allow the equipment to continue working. During operation, the worm gear, an important internal part, will drive the lubricating oil to run together. In this case, you can always judge the remaining amount of lubricating oil. If the oil level line of the lubricating oil is lower than the oil window 2/3, it indicates that the lubricating oil is insufficient and needs to be added.

    However, sometimes, when the worm gear motor is running, it may be different from the actual oil amount when judging the remaining oil amount. In order to correctly determine the amount of remaining oil, it is necessary to observe when the equipment is terminated. At the same time, when adding lubricating oil, it cannot be added in its operating state, but needs to be added in its terminated state.
