    12V/24V DC Cooling Fan, 60mm x 60mm x 25mm

    $26.89
    Small DC cooling fan 60mm X 60mm X 25mm, rated voltage 12 volt or 24 volt, dc brushless cooling fan speed of 2500rpm, 3000rpm or 4000rpm, fire rating UL94V. Air flow 11.8CFM/14.1CFM/19.2CFM.
    SKU: ATO-CF-DC6025
    *
    *
    *
    This product has a minimum quantity of 3
    Free Shipping Worldwide
    Delivery date: 6-20 days

    Powerful 12V/24V DC cooling fans, low price, bearing type can choose oily or ball, noise as low as 20dB-A, small size, high temperature resistance.

    Specifications:

    Model ATO-DC6025SLL ATO-DC6025BLL ATO-DC6025SLM ATO-DC6025BLM ATO-DC6025SLH ATO-DC6025BLH
    Rated Voltage 12V 24V 12V 24V 12V 24V 12V 24V 12V 24V 12V 24V
    Bearing Type Oily Ball Oily Ball Oily Ball
    Rated Current 0.08A 0.05A 0.08A 0.05A 0.09A 0.06A 0.09A 0.06A 0.12A 0.11A 0.12A 0.11A
    Input Power 0.96W 1.68W 0.96W 1.68W 1.08W 1.92W 1.08W 1.92W 1.44W 2.64W 1.44W 2.64W
    Fan Speed 2500±10%RPM 3000±10%RPM 4000±10%RPM
    Air Flow 11.8CFM 14.1CFM 19.2CFM
    Static Pressure 1.7mm-H2O 2.4mm-H2O 4.2mm-H3O
    Noise 20dB-A 22dB-A 28dB-A
    Dimension 60mm x 60mm x 25mm
    Material Plastic
    Certificate CE, UL
    Fire Rating UL94V-0
    Operating Temperature -10 ℃ ~ 70 ℃
    Operating Humidity 35% ~ 85RH
    Storage Temperature -40 ℃ ~ 70 ℃
    Storage Humidity 35% ~ 85RH

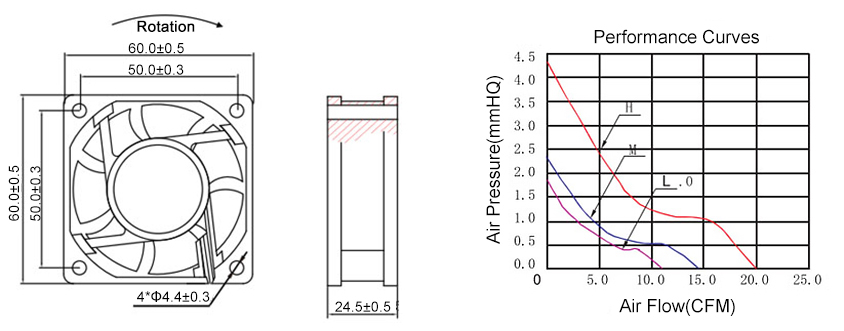

    Dimensions and Curves (unit: mm)
    Brushless cooling fan dimensions
    DC Cooling Fan Interface
    DC cooling fan interface one
    DC cooling fan interface two
    DC cooling fan interface three
    Tips: Speed ​​and temperature control of DC cooling fan
    The operation of DC cooling fan changes with the heat condition. If it runs at a slower speed, the fan will generate less noise and consume less energy. In most design requirements, the air temperature is usually lower than the maximum design temperature after the cooling fan has been running for several hours. Under normal circumstances, a low-speed cooling fan is sufficient to complete its work. However, it should also be considered when selecting and installing: First, the selected fan must be able to provide sufficient exhaust air volume (speed) to cool the hot air inside the equipment under high temperature conditions; When I was young, I did the opposite. Secondly, when selecting the installation position of the sensor, care should be taken to place the sensor in an appropriate position so that the sensor can be directly clamped on the surface to be cooled. In operation, a temperature-controlled fan will run at a faster speed if the thermistor feels that the temperature is higher, and at a lower temperature, it will run at a lower speed; In the middle, the fan speed will hardly change due to temperature. When the temperature of the fan changes slowly, the speed of the fan changes slowly, and the speed and noise of the fan will not change suddenly. The length of the response time depends mainly on the sensitivity of its sensor to thermal induction.
