    12V/24V DC Cooling Fan, 60mm x 60mm x 15mm

    $26.89
    Small DC cooling fan dimenson 60mm x 60mm x 15mm, 12V/24V for selection, cooling fan speed of 3000rpm/3500rpm/4000rpm, low price, smooth and efficient operation.
    SKU: ATO-CF-DC6015
    *
    *
    *
    This product has a minimum quantity of 3
    Free Shipping Worldwide
    Delivery date: 6-20 days

    12 volt / 24 volt dc cooling fan dimensions 60mm x 60mm x 15mm, high efficiency, superior performance, are widely used in computers, communications products, optical products, and cars.

    Specifications:

    Model ATO-DC6015SLL ATO-DC6015BLL ATO-DC6015SLM ATO-DC6015BLM ATO-DC6015SLH ATO-DC6015BLH
    Rated Voltage 12V 24V 12V 24V 12V 24V 12V 24V 12V 24V 12V 24V
    Bearing Type Oily Ball Oily Ball Oily Ball
    Rated Current 0.09A 0.07A 0.09A 0.07A 0.1A 0.08A 0.1A 0.08A 0.12A 0.1A 0.12A 0.1A
    Input Power 1.08W 1.68W 1.08W 1.68W 1.2W 1.92W 1.2W 1.92W 1.44W 2.4W 1.44W 2.4W
    Fan Speed 3000±10%RPM 3500±10%RPM 4000±10%RPM
    Air Flow 12.4CFM 14.4CFM 16.5CFM
    Static Pressure 1.9mm-H2O 2.2mm-H2O 2.5mm-H3O
    Noise 25dB-A 29dB-A 33dB-A
    Dimension 60mm x 60mm x 15mm
    Material Plastic
    Certificate CE, UL
    Fire Rating UL94V-0
    Operating Temperature -10 ℃ ~ 70 ℃
    Operating Humidity 35% ~ 85RH
    Storage Temperature -40 ℃ ~ 70 ℃
    Storage Humidity 35% ~ 85RH

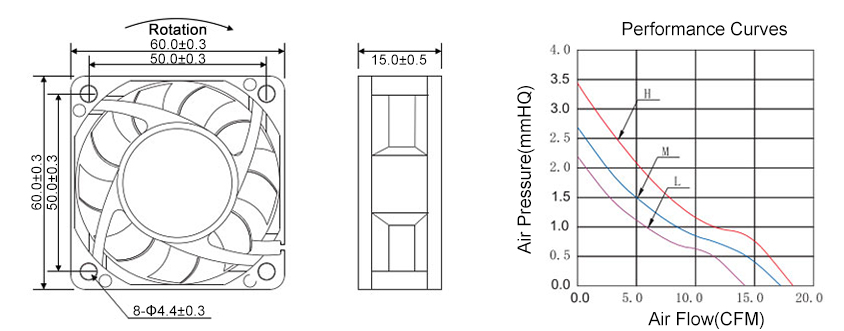

    Dimensions and Curves (unit: mm)
    60mm dc cooling fan dimensions
    DC Cooling Fan Interface
    DC cooling fan interface one
    DC cooling fan interface two
    DC cooling fan interface three
    Tips: What is the air volume and air pressure of the cooling fan?
    The cooling fan air volume refers to the total volume of air sent or drawn by the fan per minute. The unit of air volume often used in fan products is CFM, which is Cubic Feet per Minute.
    When the materials are the same and the heat dissipation principle is the same, the air volume is the most important index to measure the heat dissipation capacity. Simply put, a fan with a larger air volume has a higher heat dissipation capacity. This is because the heat capacity of air is constant, and the larger the air volume, that is, the more air can take away more heat per unit time. The air pressure of a cooling fan is also called static pressure, which refers to the difference in air pressure between the fan's air inlet and air outlet. Usually, the unit is millimeter of water column height (mmH2O) or inch of water column height (inchH2O).
