    12V/24V DC Cooling Fan, 92mm x 92mm x 25mm

    5 out of 5 based on 4 reviews | Write a review
    12V DC cooling fan for sale, dimension of 92mm x 92mm x 25mm, the brushless fan can choose bearing type oily or ball, rated current 0.07A/0.05A/0.1A. The brushless DC cooling fan has a maximum speed of up to 2500 rpm to dissipate heat quickly and efficiently, keeping your equipment cool and avoiding overheating.
    SKU: ATO-CF-DC9225
    This product has a minimum quantity of 3
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    24 Volt dc cooling fan for sale, it comes with a small size of 92mm x 92mm x 25mm. ATO brushless cooling fans use advanced technology to provide quiet operation while generating strong airflow.


    Rated Voltage 12V 24V 12V 24V 12V 24V 12V 24V 12V 24V 12V 24V
    Bearing Type Oily Ball Oily Ball Oily Ball
    Rated Current 0.07A 0.05A 0.07A 0.05A 0.1A 0.06A 0.1A 0.06A 0.18A 0.1A 0.18A 0.1A
    Input Power 0.84W 1.2W 0.84W 1.2W 1.2W 1.44W 1.2W 1.44W 2.16W 2.4W 2.16W 2.4W
    Fan Speed 1500±10%RPM 2000±10%RPM 2500±10%RPM
    Air Flow 24.4CFM 32.5CFM 40.6CFM
    Static Pressure 1.2mm-H2O 1.6mm-H2O 2.0mm-H3O
    Noise 21dB-A 28dB-A 35dB-A
    Dimension 92mm x 92mm x 25mm
    Material Plastic
    Certificate CE, UL
    Fire Rating UL94V-0
    Operating Temperature -10 ℃ ~ 70 ℃
    Operating Humidity 35% ~ 85RH
    Storage Temperature -40 ℃ ~ 70 ℃
    Storage Humidity 35% ~ 85RH

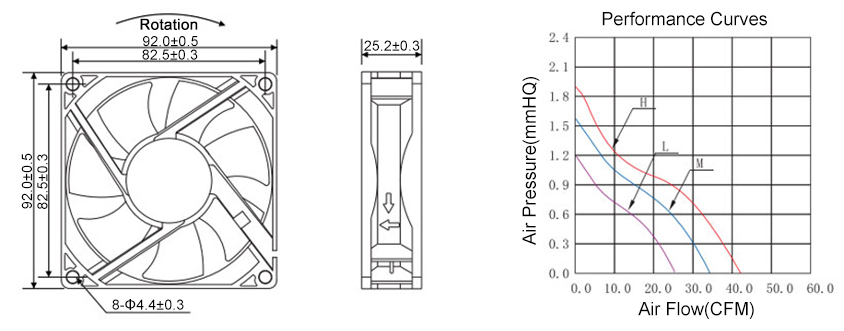

    Dimensions and Curves (unit: mm)

    92mm dc cooling fan dimensions and curves
    DC Cooling Fan Interface
    DC cooling fan interface one
    DC cooling fan interface two
    DC cooling fan interface three
    Tips: How does the DC cooling fan prevent corrosion?
    1. DC cooling fan surface treatment
    The surface protection treatment of DC cooling fans is usually performed by galvanizing, chrome plating, chemical plating, etc. These methods are effective in many environments, but for rotating parts, you need to choose carefully, because the base material and the plating are two materials, and the linear expansion coefficients are different, which will produce different results when the rotating parts are elastically deformed. The amount of deformation, which causes the generation of a large number of microcracks, will accelerate the formation of corrosion. Therefore, we need to choose appropriate materials and processes according to the actual use environment.
    2. DC cooling fan design
    The design of the cooling fan is a manifestation of its core technology, which affects the service life of the fan and ensures the safety of the fan. The structural design of the cooling fan, the design flaw that is most likely to accelerate corrosion is the stress concentration tendency and the gap environment. Sometimes, although the corrosion rate is small in the metal immersion solution, the gap is formed because the chemical and electrochemical state of the internal solution has changed. Will cause severe crevice corrosion and needs careful design.
    3. DC cooling fan material
    Different cooling fans use different materials and have different anti-corrosion effects. After selecting the cooling fan model, according to the corrosion resistance of different materials in different environments, the main application environment, working intensity and many other factors, determine the strength of the component materials from the basic plane. From the material itself, the target material it targets is safe.
