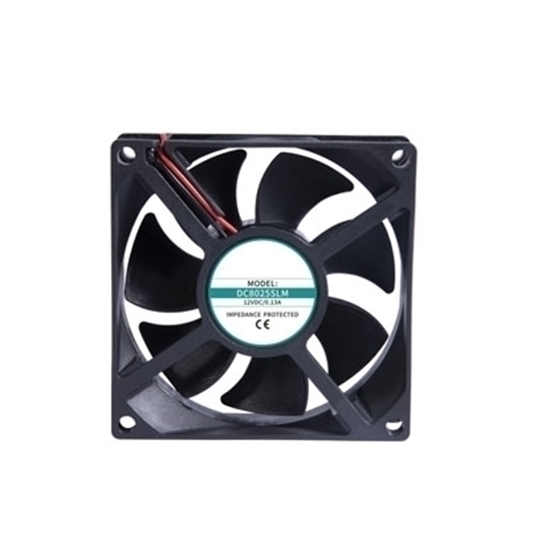

    12V/24V DC Cooling Fan, 80mm x 80mm x 25mm

    12v dc brushless cooling fan, low price, 80mm x 80mm x 25mm, rated voltage 12 volt and 24 volt is optional, rated current 0.08A/0.1A/0.15A, fan speed 1800rpm/2200rpm/2800rpm. Small size and strong wind.
    SKU: ATO-CF-DC8025
    This product has a minimum quantity of 3
    Free Shipping Worldwide
    Delivery date: 6-20 days

    80mm 12V DC cooling fan for sale, oily or ball bearing type is available, 24V DC brushless cooling fan input power 1.92W/2.88W/3.12W, direct sales by manufacturer.


    Rated Voltage 12V 24V 12V 24V 12V 24V 12V 24V 12V 24V 12V 24V
    Bearing Type Oily Ball Oily Ball Oily Ball
    Rated Current 0.08A 0.08A 0.08A 0.08A 0.13A 0.1A 0.13A 0.1A 0.15A 0.13A 0.15A 0.13A
    Input Power 0.96W 1.92W 0.96W 1.92W 1.56W 2.88W 1.56W 2.88W 1.8W 3.12W 1.8W 3.12W
    Fan Speed 1800±10%RPM 2200±10%RPM 2800±10%RPM
    Air Flow 21.2CFM 25.9CFM 33CFM
    Static Pressure 1.5mm-H2O 1.9mm-H2O 2.9mm-H3O
    Noise 22dB-A 27dB-A 32dB-A
    Dimension 80mm x 80mm x 25mm
    Material Plastic
    Certificate CE, UL
    Fire Rating UL94V-0
    Operating Temperature -10 ℃ ~ 70 ℃
    Operating Humidity 35% ~ 85RH
    Storage Temperature -40 ℃ ~ 70 ℃
    Storage Humidity 35% ~ 85RH

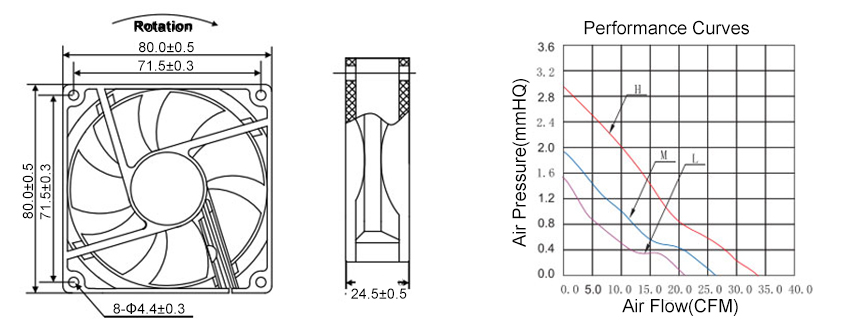

    Dimensions and Curves (unit: mm)

    80mm dc cooling fan dimensionsDC Cooling Fan Interface
    DC cooling fan interface one
    DC cooling fan interface two
    DC cooling fan interface three
    Tips: Applications of DC cooling fans
    1. DC cooling fans are used in industry.
    2. DC fans are used in computers.
    3. DC fans are used in automobiles. Driven by power and having non-rail bearing vehicles with 4 or more wheels, it is mainly used to carry personnel and / or cargo; towing vehicles carrying personnel and / or cargo.
    4. DC cooling fan is used in communication equipment: Communication equipment is divided into wired communication equipment and wireless communication equipment. Wired communication equipment mainly introduces serial communication, professional bus-type communication, industrial Ethernet communication, and various communication protocols. Conversion equipment.
