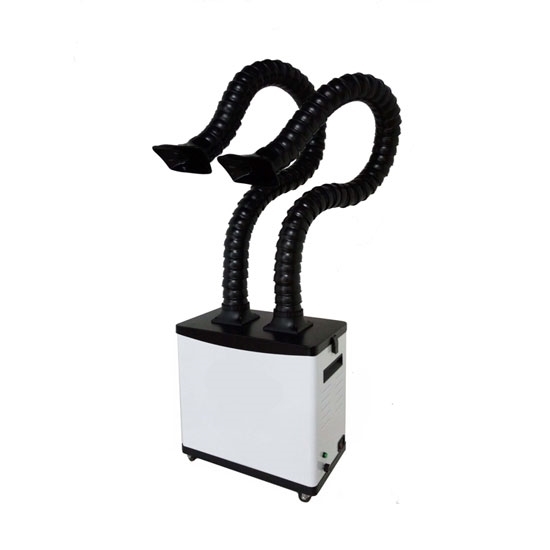

    Dual Arm Portable Fume Extractor

    4.8 out of 5 based on 6 reviews | Write a review
    $1,108.63
    High quality dual arm mobile fume extractor, smoke air purifier, which can capture harmful smoke through independent ducts and adjustable air volume, significantly improving the working environment. 200W, voltage 110V and 220V available, easy filter replacement.
    *
    *
    *
    *
    SKU: ATO-FE-C200
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Low cost dual arm portable fume extractot can clean the air of chemiclas particulates, 3 kinds of filter can be selected, 110V and 220V are avaliable.

    Note:

    1. 1 set of filter modules for fume extractor including 1 PCS primary filter + 1 PCS intermediate filter + 1 PCS advanced filter.

    2. Filter life: primary filter 7 ~ 30 days, intermediate filter 3 ~ 6 months, advanced filter 6 ~ 12 months.

    3. Buy a dual arm fume extractor, we will give a power line, a collector hood, a filter early effect, two sets of PP filter, activated carbon filter 2 sets, along with a warranty card and  manual.

    Specification:

    Model ATO-FE-C200
    Voltage 110V/220V
    Power 200W
    Systemic Flow 348m3/h
    Iniet Flange 2*φ75mm
    Niose 55dB
    Dimensions 425mmx250mmx480mm
    Filtering Efficiency 0.3μm 99.97%
    Warranty 12 Months
    Weight 15Kg
    Length of Duct 1.4M (Please contact us for other lengths)

    Triple filter structure
    1. The primary filter will block and absorb a large amount of dust.
    2. The intermediate filter filters larger powders to extend the life of the main filter.
    3. Advanced filter consists of high efficiency filter and gas filter. Advanced filters purify gases and powders through a combination of activated carbon and other chemical treatments, then exhaust clean air from the air outlet.

    Features
    1. Rigid and shaped appearance, full metal frame structure, can resist strong impact and vibration, lightweight and easy to move.
    2. The installation is simple and convenient without additional pipes, which is conducive to the cleanliness and beauty of the working space.
    3. Multi-filtration design ensures to filter out harmful substances in smoke and protect human safety. Primary effect, medium effect and main filter element can be replaced separately, which prolongs the service life of main filter.
    4. The built-in air circulation filtration method can avoid the discharge of indoor air conditioning/heating to the outdoor environment and meet the environmental protection standards in a real sense.
    5. High-power brushless DC motor, ultra-low noise operation, long service life, eddy backward metal wheel design, high air volume, large suction force, safe and reliable.

    Tips: Particles that normally evaporate at high temperatures from solder and flux. These particles float in the air and can be seen by the human eye under a certain amount of light. And the other 5% is emitted in the air in the form of gas, which is invisible to our naked eyes, and these gases contain a large number of harmful ingredients such as carbon monoxide, carbon dioxide, methanol, methane, formaldehyde and so on. These particles and harmful gases can affect the health of operators and pollute the environment. The smoke purification system is collected into the equipment of the smoke removal system through various suitable collectors (soldering iron suction pipe/smoking arm/smoking hood, etc.) through the pipeline installed in each station, which is filtered by the internal filter of the system and then into the room.

    This video will show you ATO Fume extractor, 110V / 220V fume extractor is optional.



    Existing reviews of Dual Arm Portable Fume Extractor
    Powerful fume extractor fan function
    This is a powerful and easy to use, fume extractor. The handles on top and wheels on bottom make it very easy to move and maneuver. There are multiple layers of good quality filters inside the unit. Unfortunately, ours arrived with a substantial dent and crack along one side. Luckily, it appears to only be a cosmetic issue. Overall, the vacuum smoke exhaust fan performs well in our 3D printing and laser engraving rooms and is worth purchasing.
    From: robybobby | Date: 29/04/2024
    Was this review helpful? Yes No (0/0)
    Super
    I have used the extractor to pull smoke from cutting with my laser. It has worked well and I am happy with my purchase as I do not have to spend more money!
    From: Fitch | Date: 02/11/2023
    Was this review helpful? Yes No (0/0)
    Satisfied with this fume extractor
    I wanted to buy a smoke evacuator with low noise. And I'm satisfied with this portable fume extractor. It's been two months since I bought it. So far there have been no problems. I will order more.
    From: Kespeon | Date: 04/12/2022
    Was this review helpful? Yes No (0/0)
    Good product for the intended purpose
    This fume extractor is all metal except for the extension tube. This one uses 3 filters all others use only 1 carbon filter. This has a nice LED fan speed readout. It is a little expensive compared to others in this category. But I feel it is much better built making up for the cost. No, A "Fume Extractor" in General will only extract fumes where the nozzle is pointed. This is not a "FAN". Keep that in mind. If you are OK with that then I feel this really sucks the Fume. I have researched many many units on Youtube and checked all the review of other Fume Extractors on Amazon. and having the all metal case and 3 filters makes this a decent product. the only thing is the plastic accordion tube is hard to keep in place.
    From: Mary | Date: 14/06/2022
    Was this review helpful? Yes No (0/0)
    Quiet dual arm portable fume extractor
    I have bought a lot of fume extractor before, and the sound is loud and it hurts my ears a lot. I wanted to buy a smoke evacuator with low noise, and I finally found it on the ATO.com online store. Its sound is 55 decibels, which can run with ultra-low noise. Don't worry about my ear hurt.
    From: Klinger | Date: 08/03/2021
    Was this review helpful? Yes No (0/0)
    Would your dual fume extractor work good with aerosols?
    Hello? I have a company that refinishishes rim's. Would your dual fume extractor work good with aerosols?
    From: Brian | Date: 07/04/2020
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, dual fume extractor can remove odor and smoke.
