    Handheld Electric Hydraulic Metal Hole Punch

    $1,238.09
    Hand hold electric hydraulic metal hole punch is suitable for steel / iron / copper / aluminum plate, with small and light design. Maximum punching hole diameter available with 20.5mm, 22.5mm, 25.5mm, 30.5mm, and the corresponding material thickness up to 6mm, 8mm, 10mm, 12mm. Driven by powerful 900W/ 1.5kW/ 2.2kW electric motor, the hydraulic punch has high efficiency and stable output to make a clean & accurate hole. The battery-powered model can be applied to any occasions without limit of the electricity.
    SKU: ATO-HPUN-MHP
    *
    Free Shipping Worldwide
    Delivery date: 10-20 days

    Hand hold electric hydraulic punches are efficient punching tools with stable output, to save your time and effort. These punching machines are used in punching round hole on steel plate, sheet iron, copper plate, aluminum plate, formed steel, U-steel, l-steel, and so on.

    • ATO-MHP-20 electric hydraulic punch with high quality 900W electric motor features light weight, small size, easy and fast to operate, which can punch a clean hole in 2-3 seconds.
    • The cordless hydraulic metal hole punch ATO-MHP-20B is powered by 18V Li-ion battery, which provides you big portability and flexibility, can be used in any working places with no external electricity, especially in confined situations.
    • The electric hydraulic hole punch ATO-NMHP-22/25/32 uses 1500W or 2200W brushless electric motor, with huge advantages of fast speed, smooth operation, low noise and long service life.

    Specification

    Model ATO-MHP-20 ATO-MHP-20B ATO-NMHP-22 ATO-NMHP-25 ATO-NMHP-32
    Power (No Load) 900W/1150W / 1500W 1500W 2200W
    Voltage 220V/110V 18V Li-ion battery 220V/110V 220V/110V 220V/110V
    Punch Speed 2-3s 5-8s 3-5s 5-7s 5-7s
    Depth of Throat 35mm 35mm 40mm 60mm 60mm
    Max. Round Hole Diameter 20.5mm 20.5mm 22.5mm 25.5mm 30.5mm
    Max. Material Thickness 6mm 6mm 8mm 10mm 12mm
    Standard Punch Die Φ6.5/9/13/17/20.5mm Φ6.5/9/13/17/20.5mm Φ9/11/13/17/22.5mm Φ11/13/17/21.5/25.5mm Φ17/20.5/26/28/30.5mm
    Machine Size 500*195*100mm 400*195*270mm 480*160*240mm 495*160*240mm 510*160*240mm
    Packing Size 545*310*180mm 535*420*210mm 560*200*300mm 580*340*235mm 580*340*235mm
    Net Weight 12kg 12kg 12.3kg 17.5kg 18.5kg
    Gross Weight 20kg 20kg 21.1kg 27.2kg 28.2kg

    Product Details

    1. ATO-MHP-20 Electric Hydraulic Hole Punch

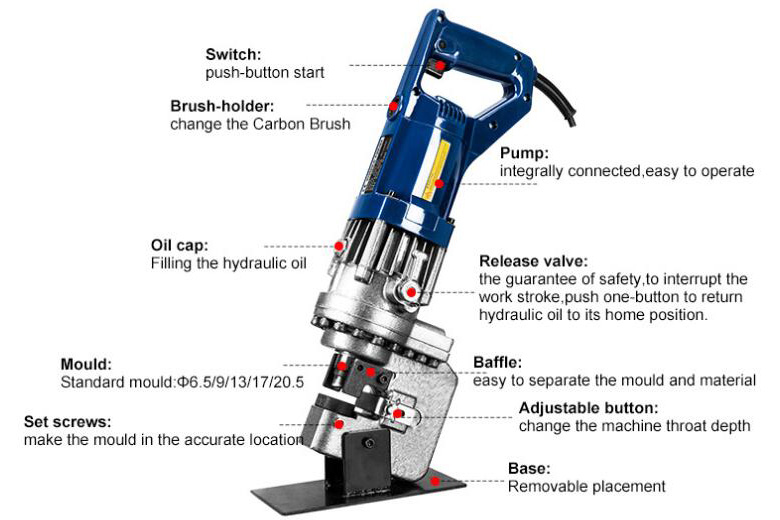

    ATO-MHP-20 Electric Hydraulic Hole Punch Details

    2. ATO-MHP-20B Battery-Powered Hydraulic Punch

    ATO-MHP-20B Battery-powered Hydraulic Punch Details

    3. ATO-NMHP Series Electric Hydraulic Hole Punch

    ATO-NMHP Series Electric Hydraulic Punch Details

    Tips: Punching Machine Classification

    1. CNC punching machine
    It is suitable for punching and processing of leather, cow sheepskin, artificial leather, plastic, PU, EVA, PVC, all kinds of cloth, paper, leather accessories, vamp, trim, curtain, automobile leather chair, etc. It is widely used in automobile accessories (breathable cushion), bags and handbags, stationery, shoes, breathable materials, advertising paper and other industries.

    2. Mechanical punching machine
    It is mainly used for large area punching of sponge, leather, paperboard and non-woven cloth.

    3. Pneumatic punching machine
    Pneumatic punching machine, also known as plastic bag punching machine, is a kind of pneumatic punching tool assisted in the bag machine. The pneumatic mould works after the signal is transmitted to the solenoid valve by the bag-making machine computer. Its structure is similar to the cold die, mainly used for punching plastic bags, paper products.

    4. Hydraulic punching machine
    Hydraulic punches are suitable for L, H plate steel, copper and aluminum punching machine. For example, the single acting hydraulic punch ATO-CH-60/ ATO-CH-70 are used for angle iron, flat iron, copper plate and other metal plate hole punching, especially suitable for power, construction and other industries in the field site operation.
