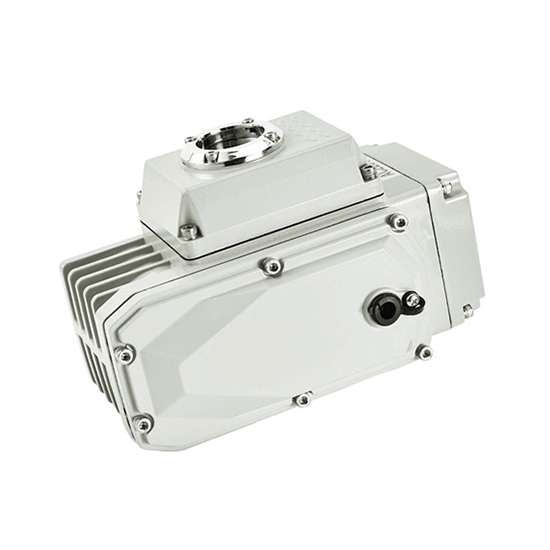

    Electric Butterfly/Ball Valve Actuator, 100Nm, 24V/110V/220V

    5 out of 5 based on 1 reviews | Write a review
    On-off electric actuator for butterfly and ball valve, quarter-turn, 100Nm output torque, 30s working time, power supply available with DC 24V, AC 24V, AC 110V, AC 220V, or AC 380V, IP65 protection grade, optional explosion-proof type, small motorized valve actuator with easy installation, convenient operation and maintenance.
    30-day Returns
    Free Shipping
    Delivery date: 6-25 days

    The quarter-turn electric valve actuators are used to control 0-90° rotating valves and other similar products, such as butterfly valves, ball valves, dampers, plug valves, louver valves, etc. It is driven by power supply DC 24V, AC 24V, AC 110V, AC 220V, or AC 380V. This small electric valve actuator can be widely used in petroleum, chemical industry, electric power, metallurgy, pharmacy, paper making, energy, water treatment, shipping, textile, food processing, building automation and other fields.

    The electric valve actuator has 30s/100Nm, 0-90° rotation with switch control, characterized with compact size, light weight, fast opening and closing, easy installation, small operating torque, convenient operation, no need for maintenance and safe use.

    100Nm Electric Valve Actuator Specification

    Model ATO-SQ-10
    Type Operation On-Off
    Voltage DC 24V AC 24V AC 110V AC 220V AC 380V
    Motor Power 25W 25W 25W 25W 15W
    Rated Current 2.03A 2.12A 0.57A 0.3A 0.1A
    Output Torque 100Nm
    Working Time 30s
    Rotary Angle 0-90°
    Control Circuit* A/B/C
    Insulation Resistance AC 24V: 100MΩ/250V DC
    AC 110V/220V/380V: 100MΩ/500V DC
    Dielectric Strength AC/DC 24V: 500V AC/1 minute
    AC 110V/220V: 1500V AC/1 minute
    AC 380V: 1800V AC/1 minute
    Protection Grade IP65
    Case Material Aluminium die-casting component
    Explosion-proof Grade None (Optional EXdIICT4)
    Installation Can be installed in any angle
    Electrical Interface 2-G1/2 waterproof connector
    Ambient Temperature -20℃ ~ +60℃
    Weight 5.45kg
    Matched Valves** Soft sealing ball valve: DN40
    Soft sealing butterfly valve: DN80-125

    For the control circuit diagram, please refer to Electric Valve Actuator Instruction Manual.
    ** Due to different manufacturers and different operating environment, even the same type of valves actually has different working torque. Therefore, it is recommended that when selecting a electric valve actuator, the operating torque of the valve should be 60% ~ 80% of the rated output torque of the actuator.

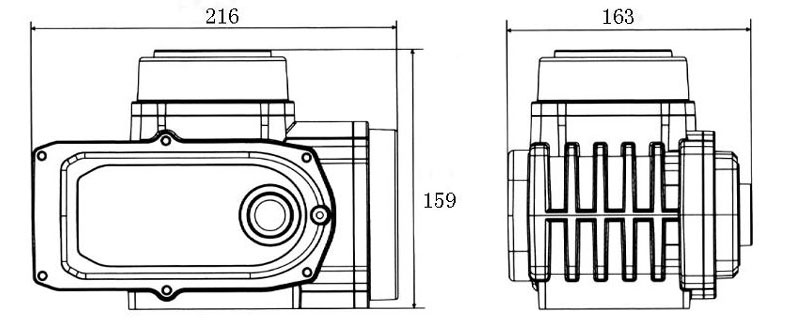

    Electric Valve Actuator Dimension (Unit: mm)

    100Nm electric valve actuator dimensionsDetails

    Electric Valve Actuator Details

    Tips: Electric valve actuator: quarter-turn vs. multi-turn

    There are two types of electric actuators, quarter-turn electric valve actuators and multi-turn electric valve actuators. The former mainly controls valves that require partial rotation, such as ball valves, butterfly valves, etc., the latter requires multiple turns of the valve, like gate valves.

    Multi-turn electric actuator are one of the most common and reliable actuator types. It drives the gear or worm gear by single-phase or three-phase motor and then drive the stem nut to move, so as to open or close the valve. Multi-turn electric valve actuators can quickly open and close large size valves. To protect the valve from damage, the limit switch installed at the end of the valve stroke will cut off the motor power. At the same time, when the safety torque is exceeded, the torque sensor will also cut off the motor power. The position switch is used to indicate the valve's on & off state. The handwheel mechanism can manually operate the valve in case of a power failure.

    Quarter-turn electric valve actuators are similar to the multi-turn electric actuators. The main difference is that the actuator finally outputs one quadrantrotation, that is, 90 degrees of motion. The quarter-turn electric valve actuators features compact and it can be installed on small-sized valves. In addition, the required power supply is small, and they can be fitted with batteries for fail-safe operation.
